Key Features
- Multi-Constellation Support:
- GPS: L1C/A, L2P(Y), L2C, L5
- Beidou: B1I, B2I, B3I
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b
- QZSS: L1, L2, L5
- Positioning Accuracy (RMS):
- Single Point: 1.5 m horizontal, 2.5 m vertical
- DGPS: 0.4 m + 1 ppm horizontal, 0.8 m + 1 ppm vertical
- RTK: 0.8 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical
- PPP: 5 cm horizontal, 10 cm vertical
- High Data Update Rate: Up to 20 Hz positioning and raw data output.
- Fast Initialization:
- Cold boot <30 s
- Warm boot <4 s
- RTK initialization <5 s with >99.9% reliability
- High Stability:
- Observation accuracy: 10 cm pseudorange, 1 mm carrier phase
- Orientation accuracy: 0.1° / 1 m baseline
- Timing accuracy: 20 ns
- Speed accuracy: 0.03 m/s
Electrical & Mechanical Specifications
- Input Voltage: DC 5V–12V (default 5V)
- Power Consumption: ~600 mW (excluding antenna)
- Dimensions: 73.4 × 75 × 5 mm
- Weight: 30 g
- Connector: 34-pin, dual MCX-K antenna ports
- Interfaces: NMEA-0183 & Unicore proprietary, 115200 bps, RTCM V3.X supported
- Operating Temperature: –40 °C to +85 °C
Applications
- UAV Navigation & Aerial Surveying
- Autonomous Vehicles
- Precision Agriculture
- Geological & Industrial Monitoring
- Marine & Land Surveying

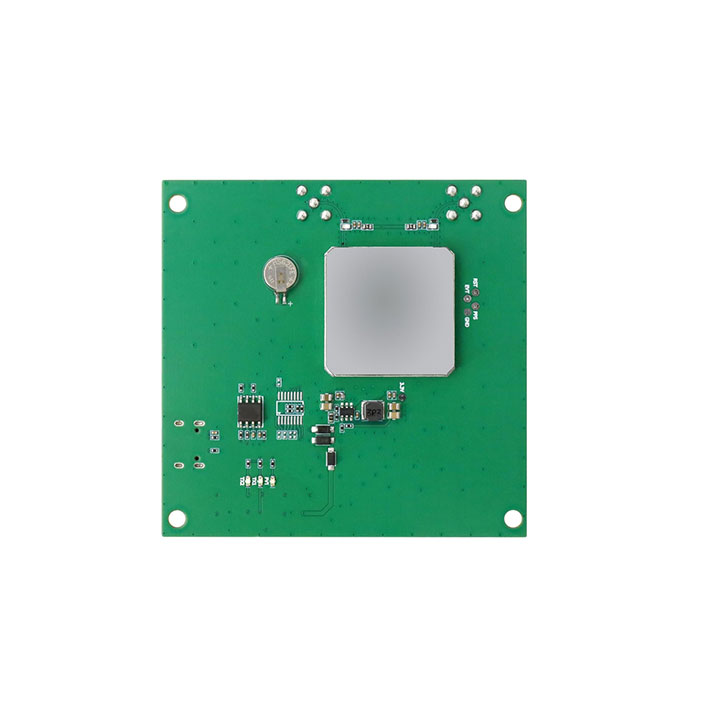

FAQs – China Moneypro MT372 RTK GNSS Module
Q1: What positioning accuracy does China Moneypro MT372 RTK GNSS Module achieve?
A1: China Moneypro MT372 delivers centimeter-level accuracy with RTK: 0.8 cm + 1 ppm horizontal and 1.5 cm + 1 ppm vertical. Compared to standard GNSS modules that only offer meter-level accuracy, the MT372 ensures precision required for UAV surveying, autonomous driving, and precision agriculture.
Q2: How fast can China Moneypro MT372 RTK Module initialize and deliver reliable results?
A2: China Moneypro MT372 provides fast RTK initialization in less than 5 seconds with a reliability rate above 99.9%. Cold boot time is under 30 seconds, while warm boot takes less than 4 seconds, solving the pain point of slow startup in field operations.
Q3: Is China Moneypro MT372 RTK Module compatible with multiple satellite constellations?
A3: Yes. China Moneypro MT372 supports GPS, Beidou, GLONASS, Galileo, and QZSS, covering L1/L2/L5 frequency bands. This multi-constellation compatibility ensures stable performance even in urban canyons, forests, or GNSS-challenged environments, where single-system receivers often fail.
Q4: Can China Moneypro MT372 RTK Module perform reliably in harsh environments?
A4: Absolutely. With a rugged design, China Moneypro MT372 operates from –40 °C to +85 °C, features low power consumption (~600 mW), and maintains stable operation under vibration and humidity. It is widely used in UAVs, vehicles, marine applications, and outdoor surveying projects where reliability is critical.
Q5: What industries benefit most from China Moneypro MT372 RTK GNSS Module?
A5: China Moneypro MT372 is designed for UAV aerial mapping, autonomous driving, precision agriculture, geological monitoring, marine surveying, and industrial applications. Customers choose it for its high accuracy, fast response, and flexible integration, solving the common pain point of inconsistent GNSS performance in demanding missions.
