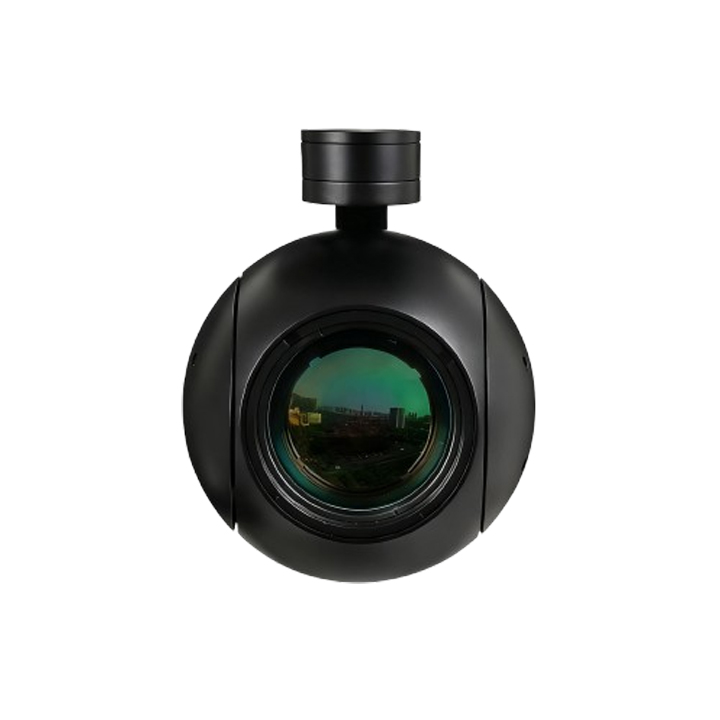

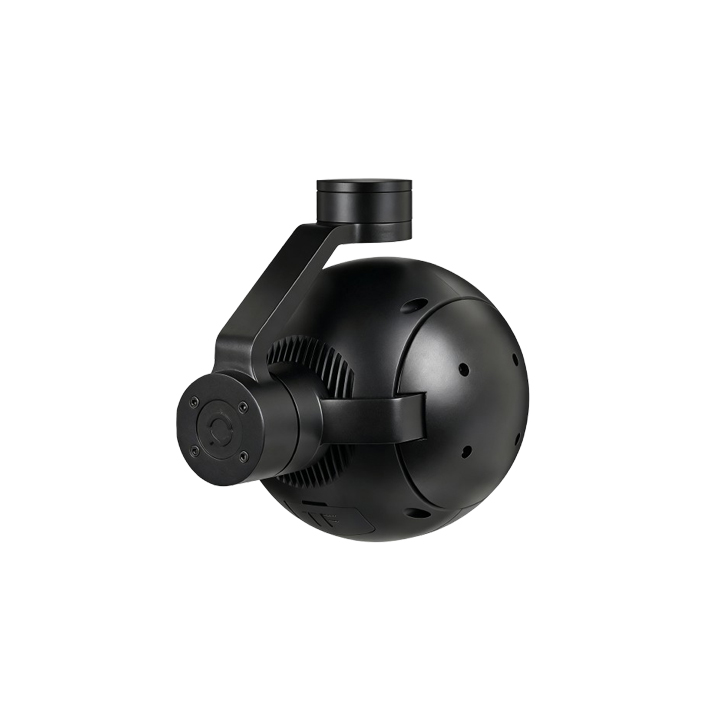

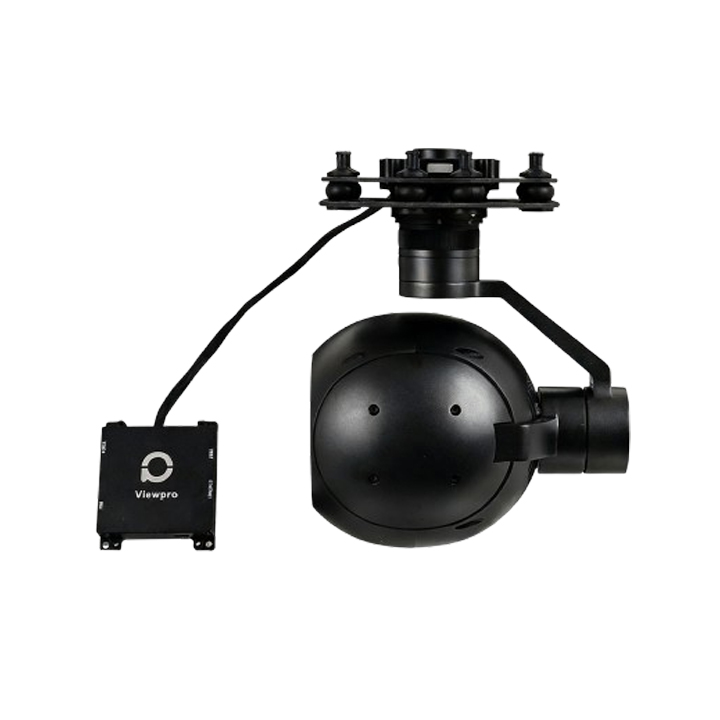

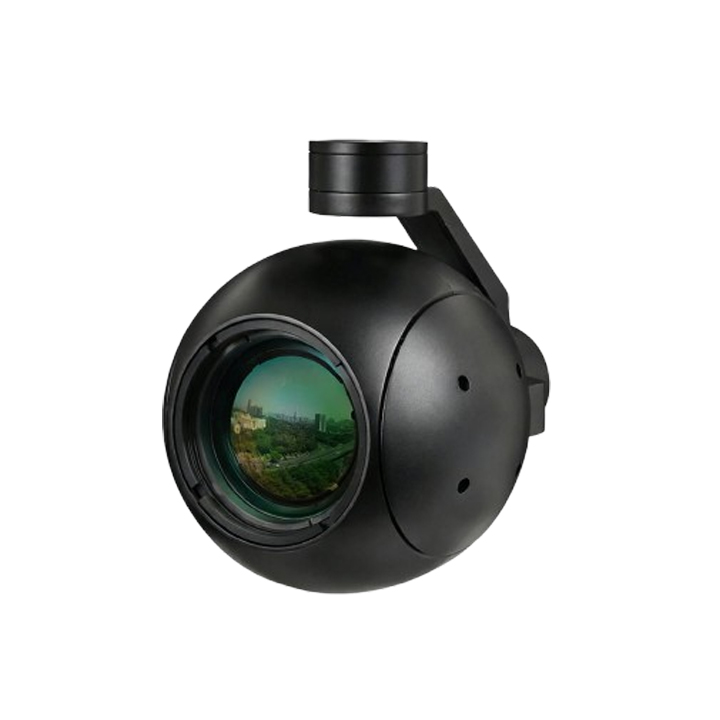

Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 310mA~1600mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| IP rating | IP44 |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | HTTP read pictures |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -40°～100°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -35°～95°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Coating Film | DLC |
| Horizontal FOV | 8.8° |
| Vertical FOV | 7.0° |
| Diagonal FOV | 11.2° |
| Detective Distance (Man: 1.8×0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8×0.5m) | 521 meters |
| Verified Distance (Man: 1.8×0.5m) | 260 meters |
| Detective Distance (Car: 4.2×1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1597 meters |
| Verified Distance (Car: 4.2×1.8m) | 799 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F.0 @25℃ |
| Color palette | White hot, black hot, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| N.W. | 860g (Viewport version) |
| Product meas. | 134*100.8*167.5mm (Standard version) /134*100.8*173.2mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 1969g |
| Package meas. | 350*300*250mm |
