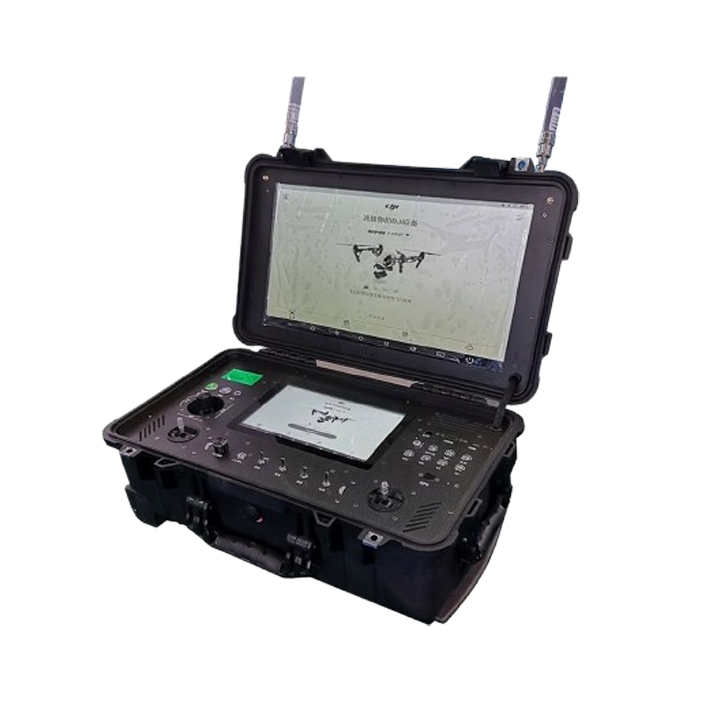

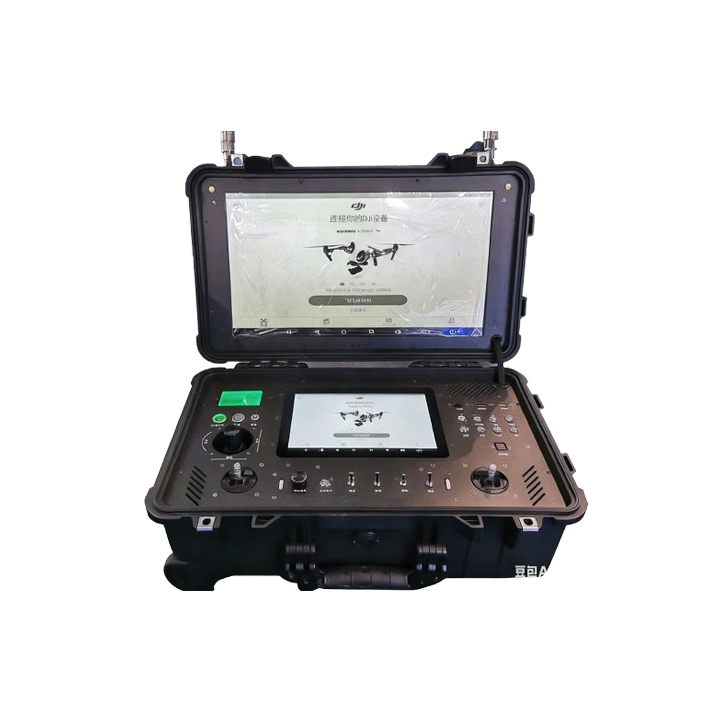

China Moneypro MTX-YH50 Pelican Case UAV Ground Control Station Support DJI Lightbridge or Pixhawk APM

The MTX-YH50 UAV Ground Control Station is a rugged, portable solution housed in a durable Pelican Case—designed to protect critical control components while enabling easy field deployment for UAV operations. A key advantage of this system lies in its broad compatibility: it seamlessly supports both DJI Lightbridge (a trusted solution for reliable long-range video transmission and flight control) and Pixhawk APM (a popular open-source flight controller platform widely used in hobbyist, industrial, and research-grade UAVs). This versatility makes the MTX-YH50 suitable for a range of users, from professional drone operators to researchers, ensuring consistent control and connectivity regardless of their preferred UAV flight system.
Categories: UAV Accessories, UAV RC & Ground Station
Share:
  • Description
Description

Specification

Size: 56cm*35cm*22.9cm Weight: 12KG
Case Material: Polypropylene composite IP Grade: IP67 Dustproof, waterproof
Operating temperature: -10°—50° Portable features: Built-in pull rod
CPU:Intel i5-5500u Memery: 4GB DDR4 2133Mhz
Hard disk: 128G SSD Nettwork port:WIFI/RJ45
Interface support: USB/HDMI/SDIAV/PPMRJ45/VGA/RS232/DC
Screen size: 20 inch(up); 9.7inch(down) Resolution:1920*1080(up)
Display scale: 16:9 Backlight type: LED
Maximum brightness: 1040nit Color standard: RGB
Working time: 3-4hrs
