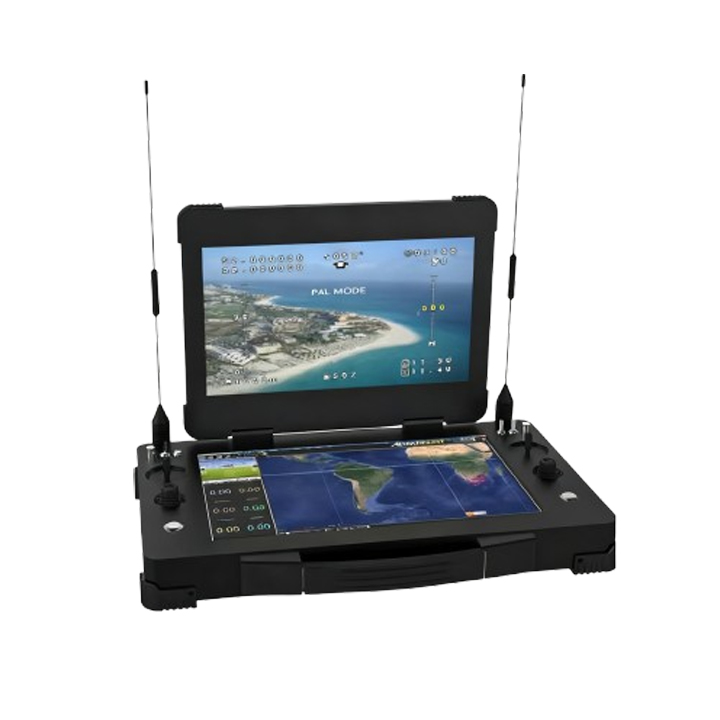

China Moneypro MTX20 Ground Station for Multi-rotor and VTOL UAV Remote Control, Remote Image and Data Transmission

The MTX20 Ground Station is a dedicated control solution engineered for multi-rotor and Vertical Take-Off and Landing (VTOL) UAVs, integrating three core capabilities to support smooth aerial operations. It enables precise remote control of UAV flight movements, ensuring stable maneuvering even in dynamic field environments. Additionally, the station facilitates real-time remote transmission of aerial images and critical mission data—allowing operators to monitor on-site conditions, verify data accuracy, and make timely decisions without relying on post-flight data retrieval. Designed to align with the operational needs of multi-rotor and VTOL platforms (which are widely used in sectors like surveying, inspection, and emergency response), the MTX20 enhances workflow efficiency and operational visibility for professional UAV teams.

Categories: UAV Accessories, UAV RC & Ground Station
Share:
  • Description
Description

Specification

Size 462*256*70MM
Weight 6KG
Operating system Win10
Cpu Intel I5 7300
Memory 4G
Storage 120G solid state drive
Storage temperature —20°~70°
Display Intel HD Graphics 620
Screen 10 point capacitive touch screen ( up and down)
Screen size 13.3inch (up);  13.3inch(down)
Screen resolution 1920*1080
screen luminance 1000ccd/m²(up and down)
Battery 16.8V  12ah
Battery indicator LED power indicator light
Charger time 3-4hours
Working time 3-4hours
Network Gigabit network interface
Extensible module 4G/5G、WIFI

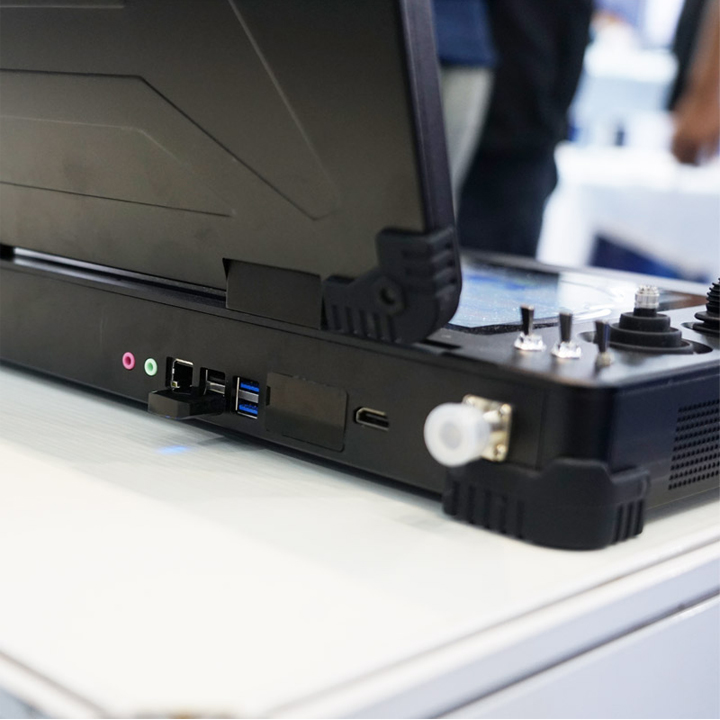

Interface 2*USB2.0/2*USB3.0/1*LAN/1*HDMI/1*MIC-OUT/LINE-OUT/DC
Working environment -10°C — 60°C
