Home » Unmanned System Products » China Moneypro Multi-Hop Mesh Manpack Mesh Radio Wireless Transmitter Base Station
China Moneypro Drone Mesh Radio Wireless Datalink Technology for Uav & Drones
Back to products
China Moneypro Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver Radio

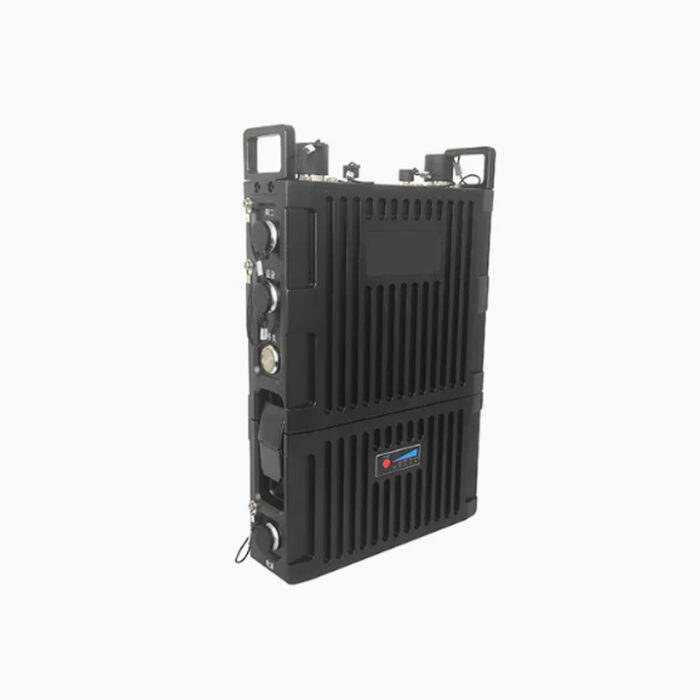

China Moneypro Multi-Hop Mesh Manpack Mesh Radio Wireless Transmitter Base Station

China Moneypro’s Multi-Hop Mesh Manpack Mesh Radio Wireless Transmitter Base Station combines rugged portability with advanced mesh networking capabilities, engineered for mission-critical field operations. Designed as a compact, manpack-ready solution, this base station leverages multi-hop mesh technology to establish self-healing, long-range connectivity—enabling seamless data, voice, and video transmission even in remote or obstructed environments (mountainous terrain, urban rubble, or disaster zones). Built with industrial-grade durability to withstand harsh conditions, it serves as a flexible wireless hub for UAVs, ground robots, and field teams, supporting scalable, ad-hoc network deployment without relying on fixed infrastructure. Ideal for search and rescue, military operations, emergency response, and remote surveillance, this transmitter base station delivers reliable, low-latency connectivity through multi-hop routing, empowering teams to stay connected in the most challenging field scenarios while offering easy setup and intuitive operation.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 27519852mm
Power Consumption ≤ 30W
Specification 2W (1W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 851779000

Packaging & Delivery

Package Size 27.50cm * 19.80cm * 5.20cm
Package Gross Weight 3.000kg

Product Description

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

Mesh Radio – Typical System Solution

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

Packing & Delivery

China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module

Application

IP Mesh Radio Application Case

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver
