Product Detail

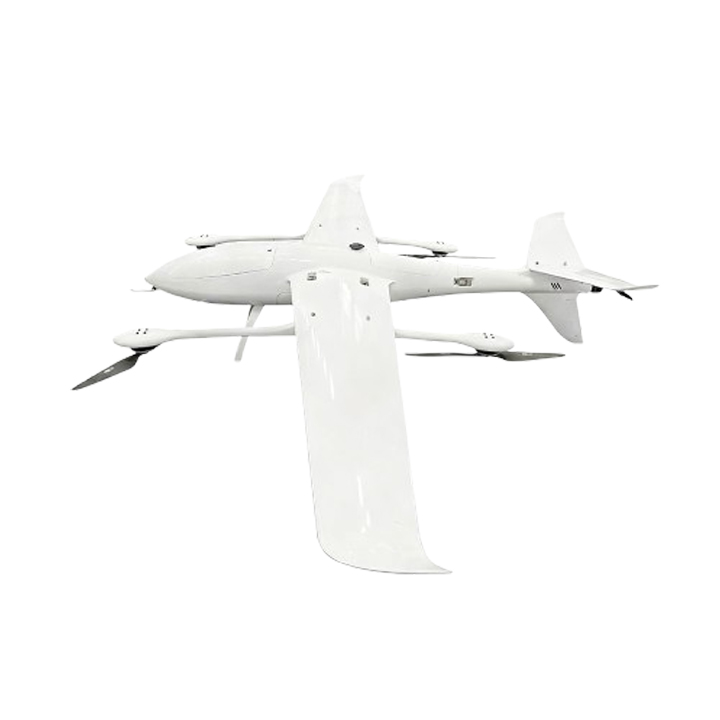

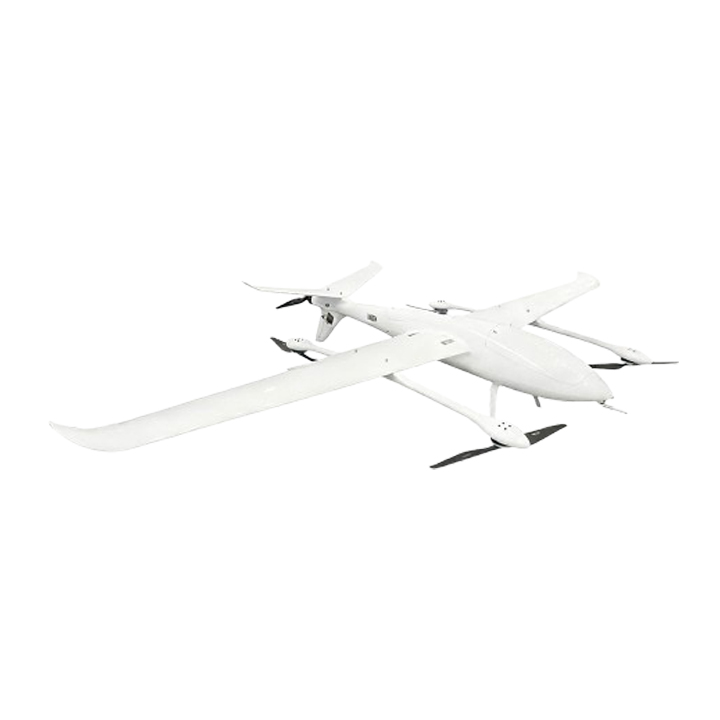

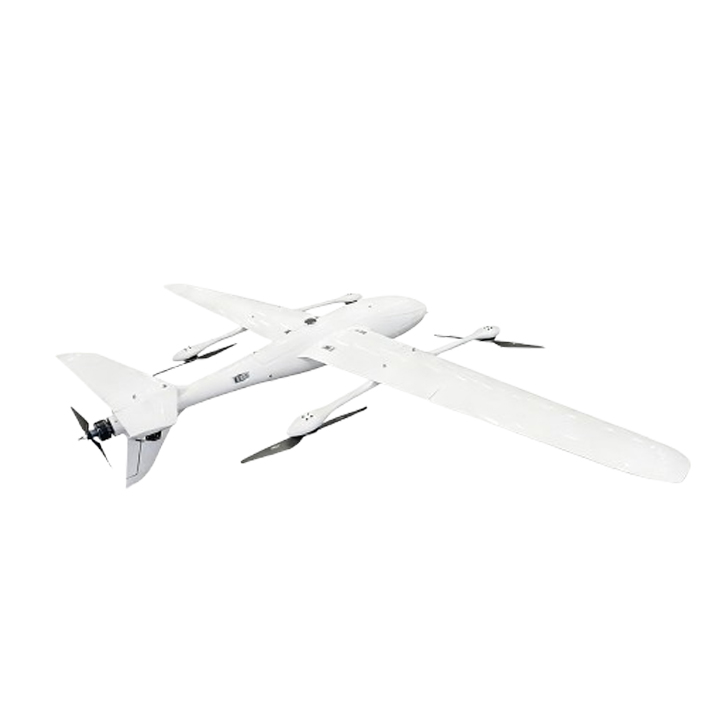

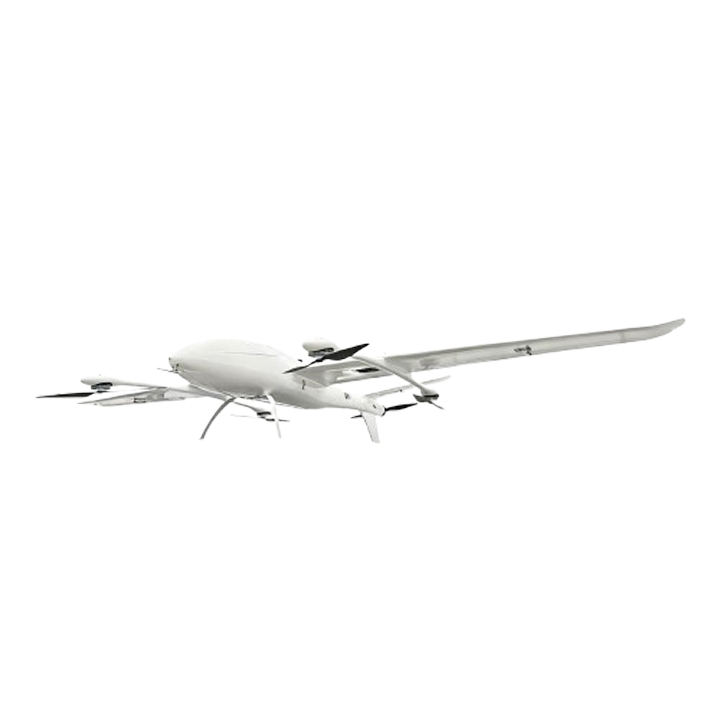

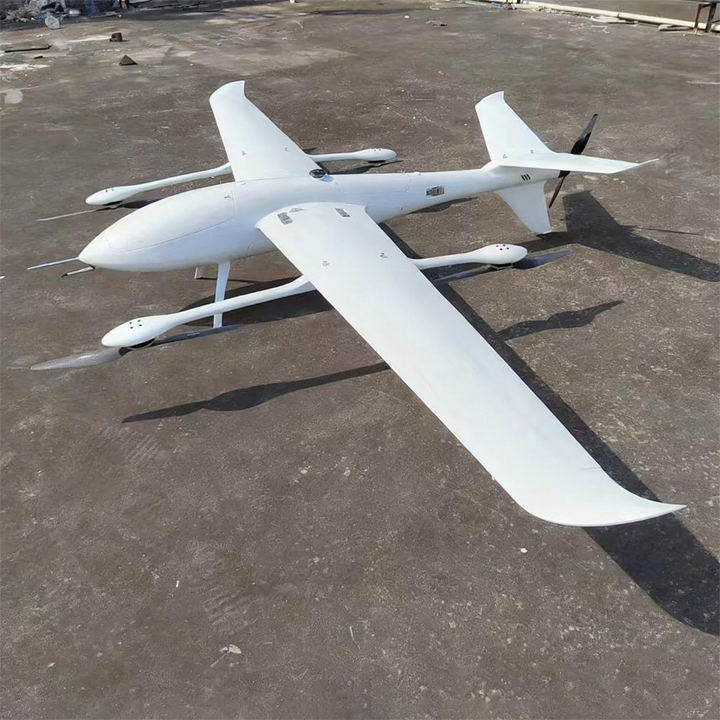

The MVT320 PRO is a new vertical take-off and landing (VTOL) fixed-wing UAV, defined by its high efficiency, long endurance, and rapid deployment capabilities.
Its fuselage is constructed from composite materials—specifically carbon fiber, glass fiber, Kevlar, and PVC—resulting in a lightweight yet highly durable structure.
Power and performance are supported by 4 units of 30,000mAh batteries and a 21-inch tail-push carbon propeller. It delivers an endurance of 260 minutes with no payload and 228 minutes when carrying a 1.2kg payload. Additional key specs include a maximum take-off weight of 24kg, a top cruising speed of 26m/s, and resistance to winds up to Level 6.
The wing and tail sections adopt the latest quick-release technology, enabling fast field deployment. This UAV is widely applied in scenarios such as large-area geographic mapping, pipeline inspection, fire fighting, and logistics transportation.
Packing List for Different Versions
| Version |
CUAV V5+ RTF |
Cube Orange RTF |
CUAV X7+ RTFÂ |
| Flight Controller |
CUAV V5+ |
Cube Orange |
CUAV X7+ |
| GPS |
NEO3 GNSS |
Here 3 GNSS |
NEO3 Pro GNSS |
| VTOLÂ Airframe |
√ |
√ |
√ |
| VTOL Motor |
4pcs |
4pcs |
4pcs |
| VTOL ESC |
4pcs |
4pcs |
4pcs |
| Airplane Motor |
1pc |
1pc |
1pc |
| Airplane ESC |
1pc |
1pc |
1pc |
| VTOL Propeller |
2Pairs |
2Pairs |
2Pairs |
| Airplane Propeller |
1pc |
1pc |
1pc |
| Servo |
4pcs |
4pcs |
4pcs |
| UBEC |
1pc |
1pc |
1pc |
| Night Light |
1pc |
1pc |
1pc |
| RC&Ground Station |
1x FT24 14Channels RC |
1x M15 Mini HD handheld ground station |
1x M15 Mini HD handheld ground station |
| Video Transmitter |
/ |
/ |
/ |
| Battery |
/ |
/ |
/ |
| Battery Charger |
/ |
/ |
/ |
| Flight Case |
√ |
√ |
√ |
| Assembling, tuning and flight test service |
√ |
√ |
√ |
Specifications
| Model No. |
MVT320 PRO |
| Type |
VTOL Fixed Wing |
| Color |
White |
| Wingspan |
3290mm |
| Length |
1828mm |
| Belly to Ground |
188mm |
| Battery Cabin |
300*200*140mm |
| Material |
Carbon fiber + glass fiber + Kevlar + PVC |
| Airframe Weight |
6.45kg |
| MTOW |
24kg |
| Max Payload |
5kg |
| Suggested Load |
1.2kg |
| Flight Time |
228min with 1.2kg payload |
| Max Cruising Speed |
26m/s |
| Stall Speed |
17m/s |
| Max Flight Altitude |
4500m |
| Max Wind Resistance Level |
12m/s |
| Battery (Recommended) |
4 * 6S 30000mAH HED Li-ion |
| Working Temperature |
-20℃~60℃ |
| IP Grade |
IP45 |
| Package Chargeable Size |
1800*680*500mm(Contains the wheel) |
| Package weight |
45kg |
