Home » Unmanned System Products » China Moneypro OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)
50km Wireless Mesh Vehicle-Mounted Stations Vehicle Bandwidth Data Mesh Radio for IP Network Video Input and WiFi Video
Back to products
China Moneypro Factory 30km Multi-Hop Relay Air Drone Uav Airborne Nodes HD Video Information Drone Mesh Radio

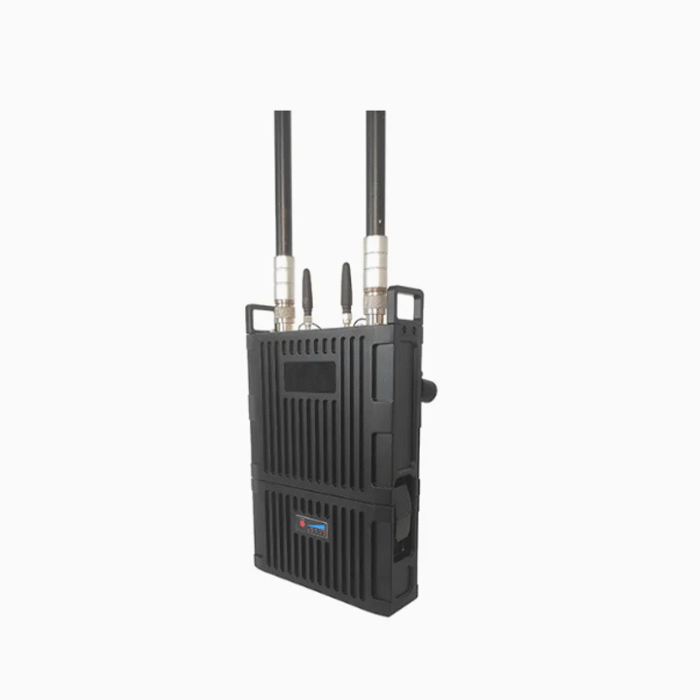

China Moneypro OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)

China Moneypro’s OEM/ODM Manpack Tactical Mesh Radio is a rugged, backpack-mounted IP communication system built for mission-critical field operations, centered on Self-Organizing Network (SON) technology. Designed for portability and durability, it enables tactical teams, emergency responders, and field personnel to establish instant, infrastructure-free connectivity—automatically forming, self-healing, and adapting networks without relying on central base stations. Supporting full OEM/ODM customization to align with specific operational needs, the system delivers stable IP-based voice, data, and video transmission, even in harsh, remote, or high-interference environments. Its ergonomic backpack design balances lightweight mobility with industrial-grade ruggedness, making it ideal for military missions, disaster relief, border security, and field surveillance where reliable, flexible communication is non-negotiable.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 275*198*52mm
Power Comsuption ≤ 30W
Specification 2W (1W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 27.50cm * 19.80cm * 5.20cm
Package Gross Weight 3.000kg

Product Description

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

Mesh Radio – Typical System Solution

Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

Packing & Delivery

Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)Application

IP Mesh Radio Application Case

Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)

Suntor OEM/ODM Manpack Tactical Mesh Radio Backpack-Mounted IP System for Self-Organizing Network (SON)
