1. This series of products are exclusively used in the cluster system, whose working frequency bands are 150MHz, 400MHz and 800MHz;
2. This series of products are installed in a standard 19 “socket. All the connectors are mounted on the rear panel and can be easily mounted on the rack.
3. System gain is greater than 10dB(or according to customer requirements);
4. System selectivity between 3-10MHz, according to customer requirements;
5. This series of products have one divided into two; one divided into four; one divided into eight and one divided into sixteen and other specifications, can also be made according to the special requirements of customers;
6. The standing wave coefficient of all ports is less than 1.20, and the connector can be made according to requirements;
7. Isolation degree between output ports is greater than 30dB;
8. The system noise coefficient is less than 4.5dB;
9. The system intermodulation suppression is greater than 50dB (under the input current of -30dBm);
10. Power supply voltage of the system is 12-15V.

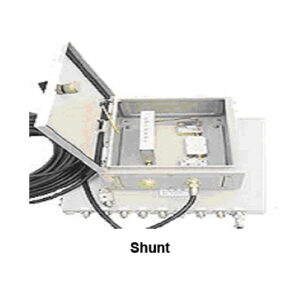

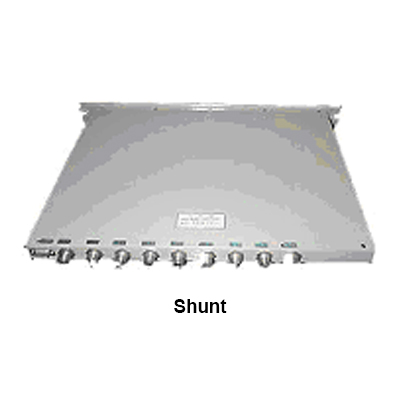

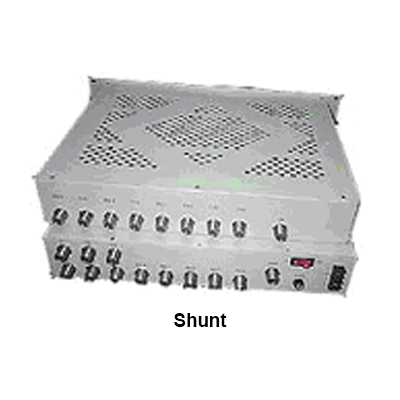

China Moneypro Splitter
Description
