Home » Unmanned System Products » China Moneypro Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos
150-300km 24Mbps Data Rate Support Video & Telemetry Data Link Radio for Drone & Robot
Back to products
IP Mesh OEM Digital Data Link for Uav Wireless Transmitting Video and Control Data

China Moneypro Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos

The China Moneypro Tactical Manpack IP Mesh Smart Radio is a cutting-edge communication solution engineered for reliable video transmitting in Non-Line-of-Sight (NLOS) scenarios. Built with rugged tactical design and advanced IP mesh technology, it enables seamless, self-healing connectivity even in complex environments like urban canyons, dense foliage, or remote terrain—eliminating the need for fixed infrastructure. Optimized for high-bandwidth video transmission, this manpack radio delivers low-latency, high-definition video streams, making it ideal for critical missions such as public safety operations, military deployments, emergency response, and field surveillance. Its compact, portable form factor ensures easy deployment by personnel on the move, while robust durability and resistance to harsh conditions guarantee consistent performance in demanding tactical settings. With intelligent mesh networking capabilities, it automatically forms dynamic communication links, supporting multi-node collaboration and ensuring uninterrupted video connectivity when traditional radios fail.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 27519852mm
Power Consumption ≤ 30W
Specification 2W (1W*2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W*2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

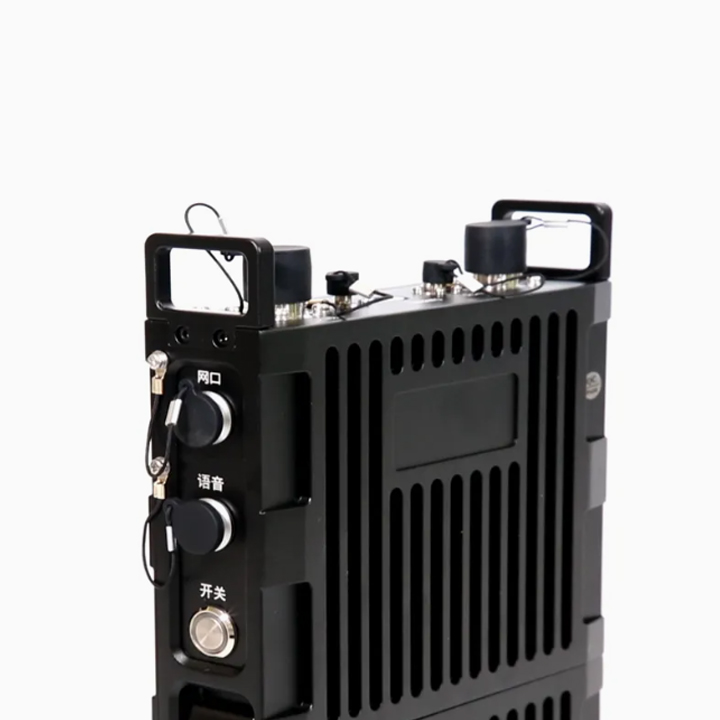

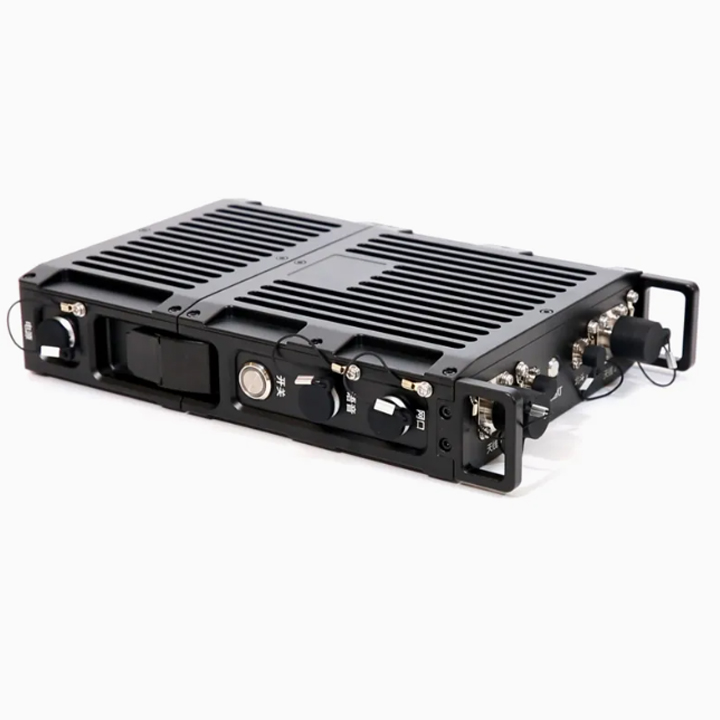

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

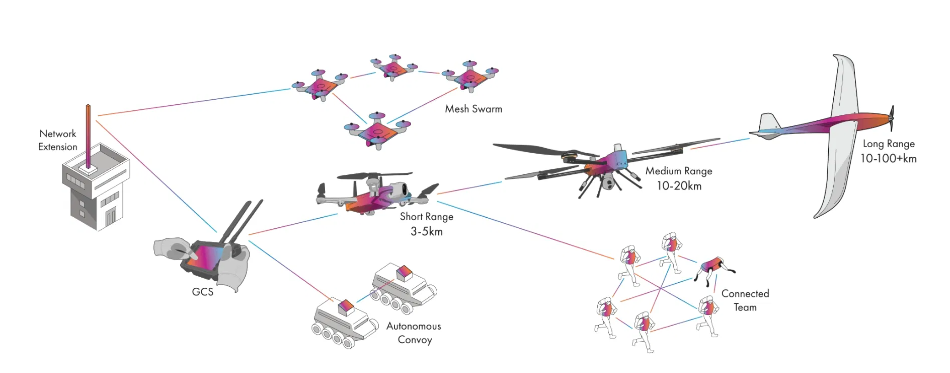

Mesh Radio – Typical System Solution

Suntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos Suntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos Suntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type Ă— 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

Packing & Delivery

Suntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in NlosSuntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos

Application

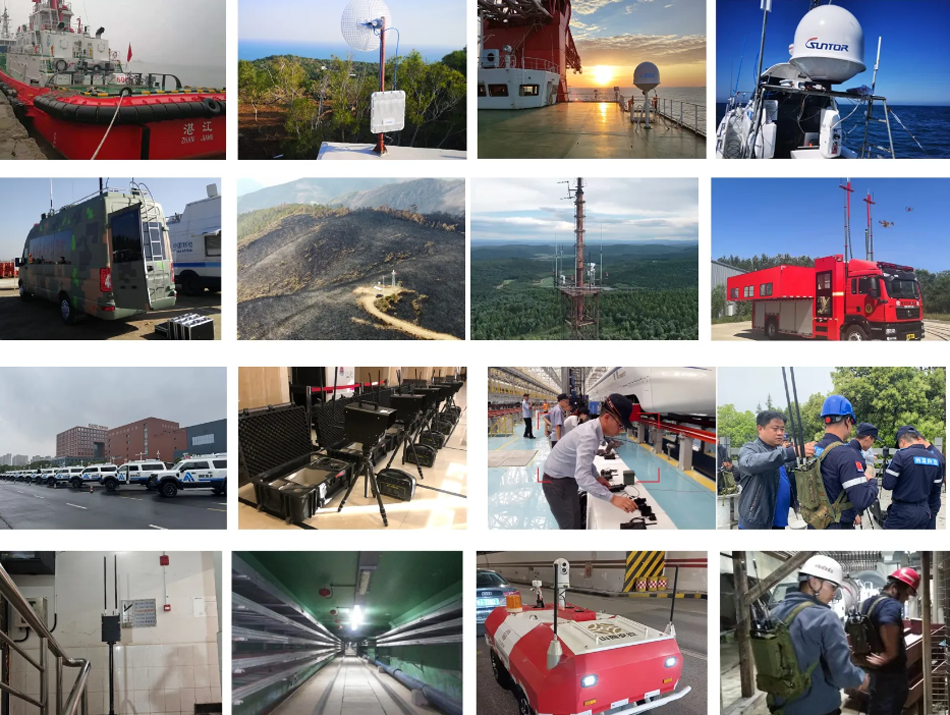

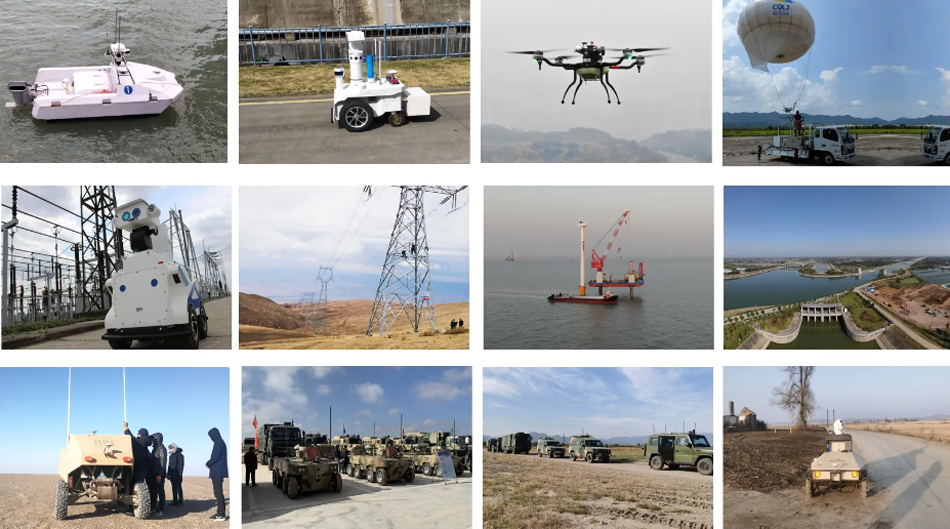

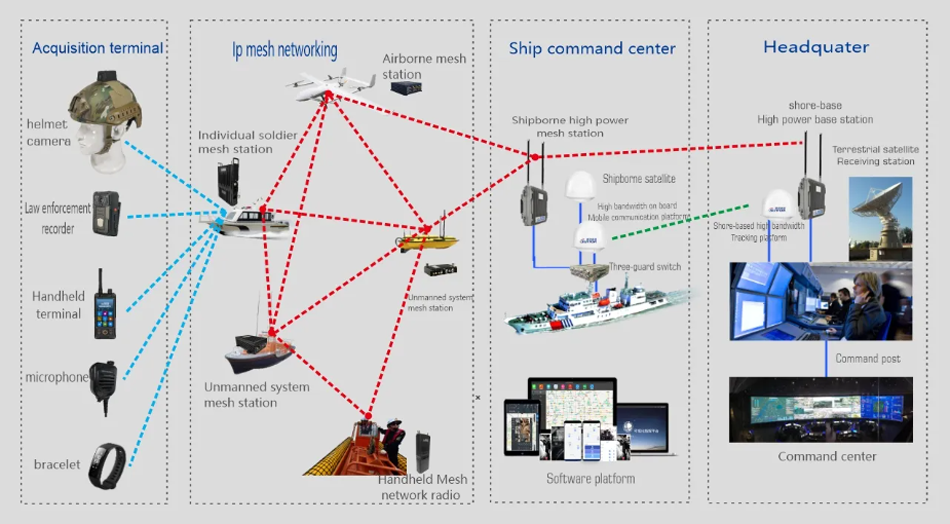

IP Mesh Radio Application Case

Suntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos

Suntor Tactical Manpack IP Mesh Smart Radio for Video Transmitting in Nlos
