Overview
Basic Info.
| Model NO. | M150Pro |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Frequency | 1428-1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.) |
| Power Consumption | ≤36W |
| Dimension | 227357mm(Air) / 27827895mm(Ground) |
| Interfaces | Eth × 1, Ttl × 1, Pwr × 1 |
| Security Protection | AE5128 |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| HS Code | 8517799000 |
| Work Mode | FDD |
| Information Content | Text, Picture, Video, Audio |
| RF Power | 10W |
| Data Rate | 20Mbps |
| Weight | 650g(Air) |
| Frequency Range | 1.4G / 2.4GHz |
| Transmission Distance | 150km Air-to-Ground |
| Specification | 680Grams |
| Origin | China |
| Production Capacity | 5000PCS/Month |
Packaging & Delivery
| Package Size | 12.20cm * 7.60cm * 5.70cm |
| Package Gross Weight | 0.680kg |
Product Description

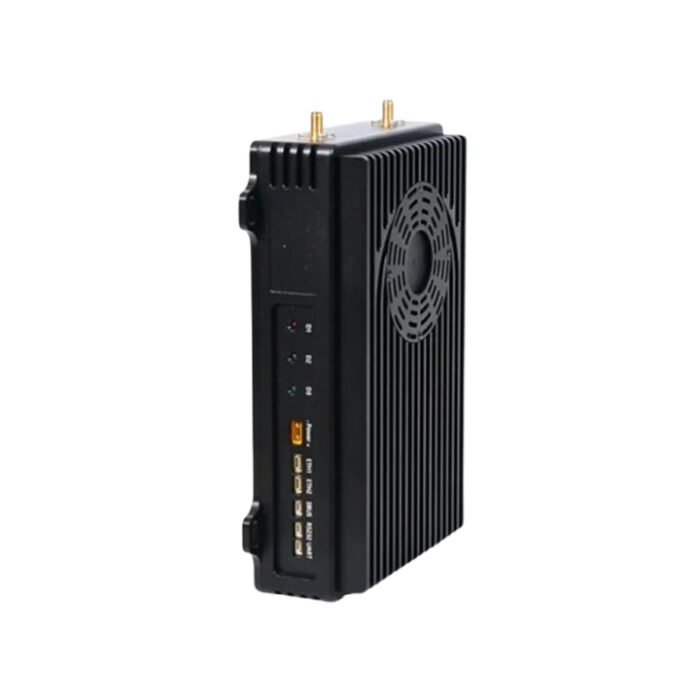

M150Pro Drone Video Transmission Radio
680 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
150KM Air-to-Ground Transmission Distance
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
150KM Air-to-Ground Transmission Distance
Specification
|
Wireless
|
|
|
Technology
|
TDD-OFDM / MIMO / 1T2R
|
|
Modulation
|
QPSK / 16QAM / 64QAM
|
|
Data Rate
|
24Mbps @ 10MHz (Peak)
|
|
Frequency Range
|
1428-1448MHz (Standard)
2401-2481MHz (Optional) 806-826MHz (Optional) |
|
Bandwidth
|
5MHz / 10MHz / 20MHz
|
|
Tx Power
|
40dBm ± 2
|
|
Rx Sensitivity
|
-99dBm @ 5MHz
|
|
System
|
|
|
Serial Port
|
1 TTL + 1 RS232 + 1 S.BUS
|
|
Video Port
|
2 ETH or
1 ETH + 1 SDI/HDMI(Customized) |
|
Security
|
AES128 Encryption
|
|
Power
|
DC12V-24V Power Supply
≤ 30W @ DC12V Power Consumption (Air) |
|
Interface
|
|
|
RF Antenna
|
SMA × 2
|
|
Serial Port Interface
|
JST × 2
|
|
S.BUS Interface
|
JST × 1
|
|
Video Port Interface
|
JST(ETH) × 2 or JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
|
|
Power Input
|
XT30
|
|
ACCESSORIES
|
|
|
OMNI Antenna for Air Unit × 2
|
Serial Cable × 2
|
|
OMNI Antenna for Ground Unit × 1
|
S.BUS Cable × 1
|
|
Directional Antenna for Ground Unit × 1
|
XT30 Power Cable × 1
|
|
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
|
VTA-Manual (Manual Tracking Antenna System) × 1
|
