Home » Unmanned System Products » China Moneypro Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery
China Moneypro Drone Data Link 1.4GHz 2.4GHz Frequency Band IP Mesh MIMO Digital UVA Data Transmitter
Back to products

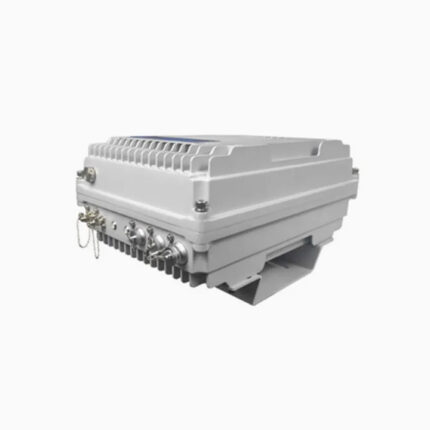

China Moneypro IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter

China Moneypro Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery

The China Moneypro Handheld Tactical Mesh Radio is an all-in-one wireless communication solution engineered for demanding field operations, integrating high-definition video transmission, reliable data sharing, and crystal-clear voice communication. Built with a rugged, portable design, this device leverages advanced mesh networking technology to deliver resilient connectivity—even in remote, obstructed, or harsh environments where traditional networks fail. Equipped with a long-lasting integrated battery, it ensures extended operational uptime for critical missions such as public safety, emergency response, military operations, or outdoor surveillance. Designed for seamless, real-time collaboration, it empowers teams to transmit live video feeds, sync mission-critical data, and maintain constant voice contact, making it an indispensable tool for tactical scenarios requiring speed, reliability, and multi-functional connectivity.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MH02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 2207440mm
Power Consumption ≤ 30W
Specification 8W(4W*2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤0.85kg (with Battery)
Power Supply DC16.8V 3000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

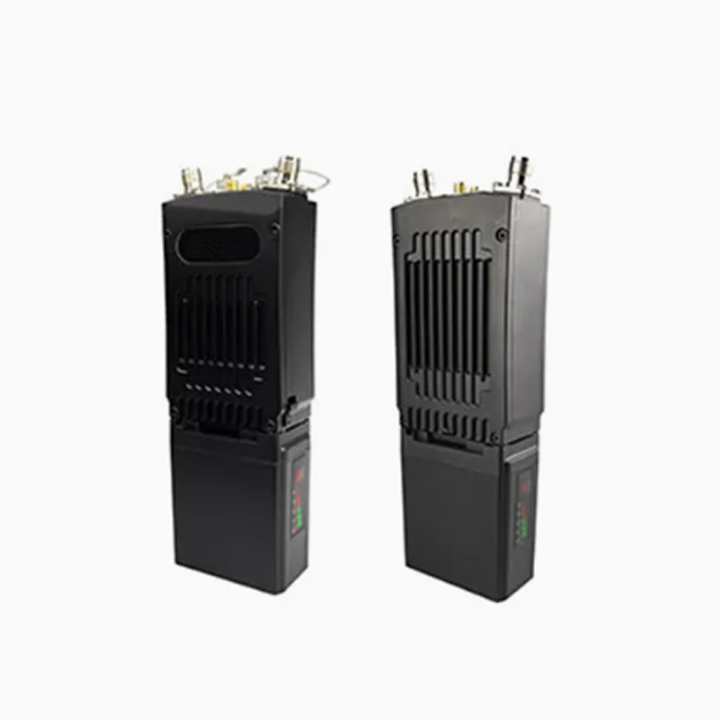

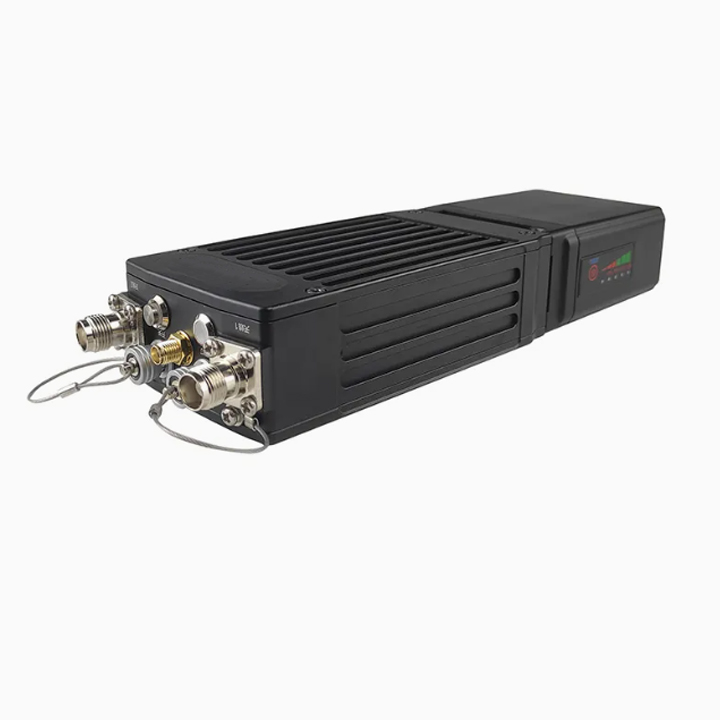

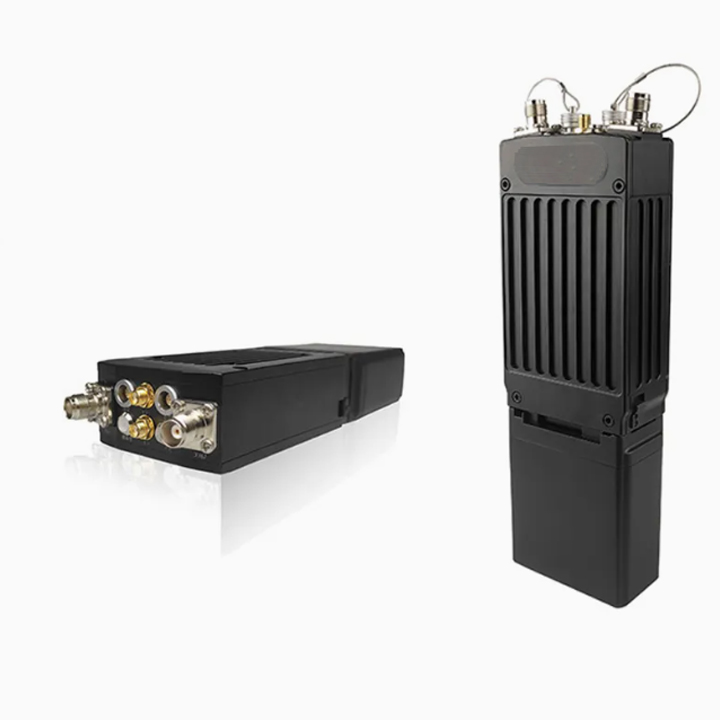

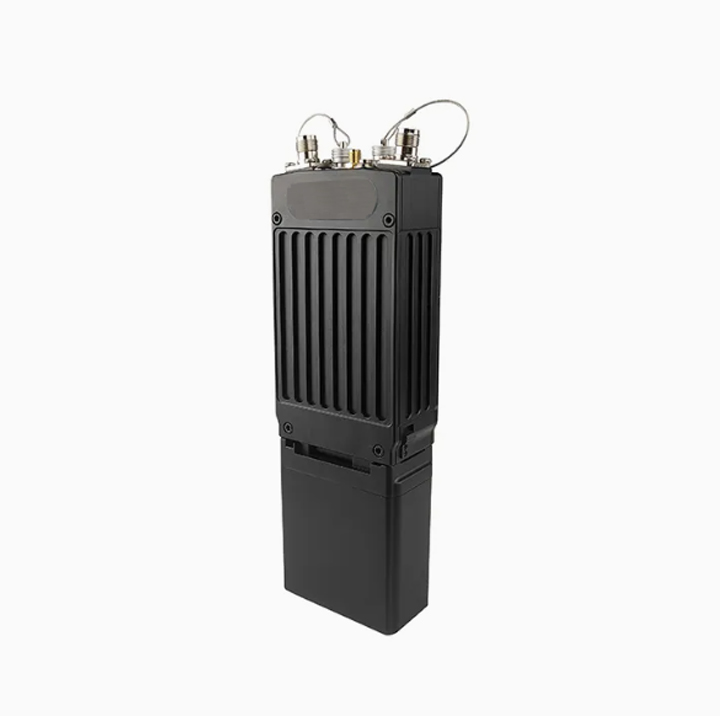

MH02 Handheld Mesh Radio

Compact Size
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
5KM Open Area Transmission Distance

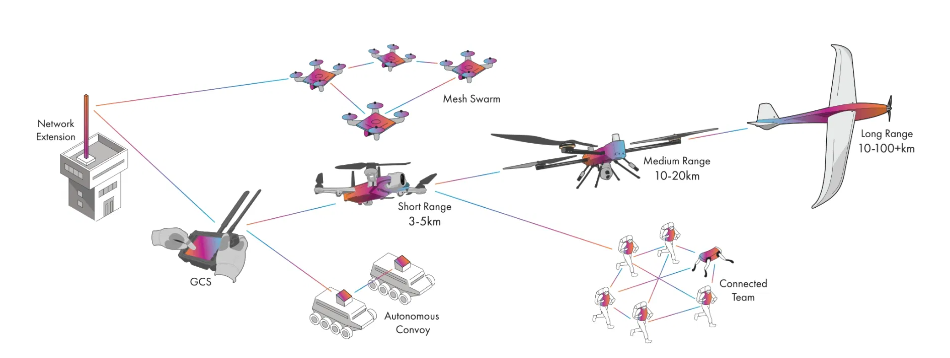

Mesh Radio – Typical System SolutionSuntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with BatterySuntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with BatterySuntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC16.8V 3000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

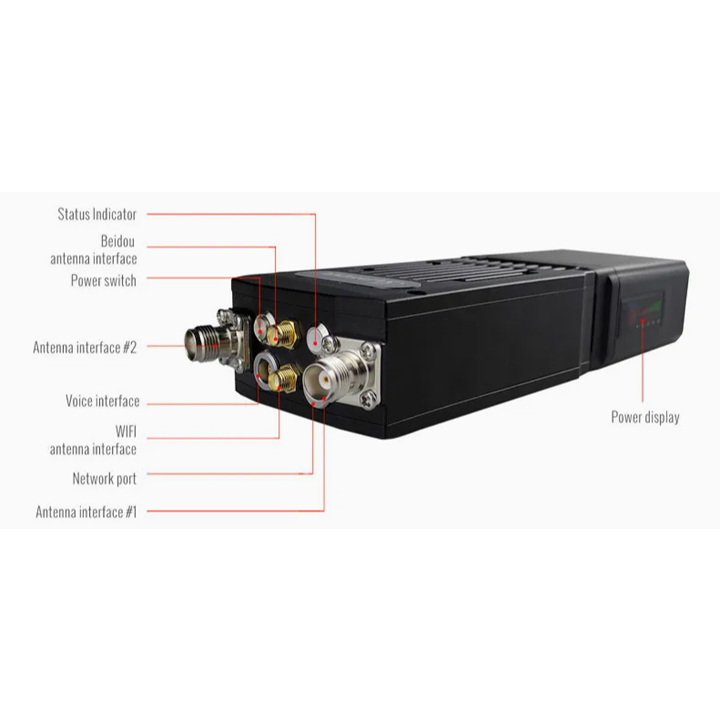

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 220 × 74 × 40mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP65
Operating Temperature
-30°C-+65°C

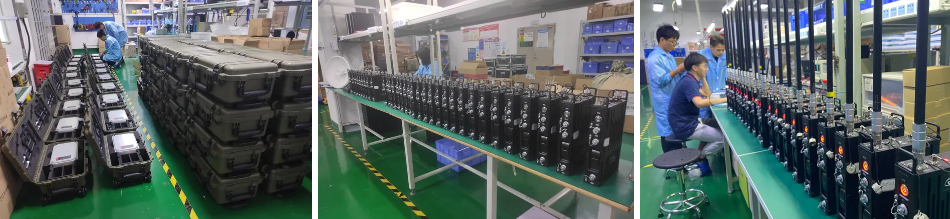

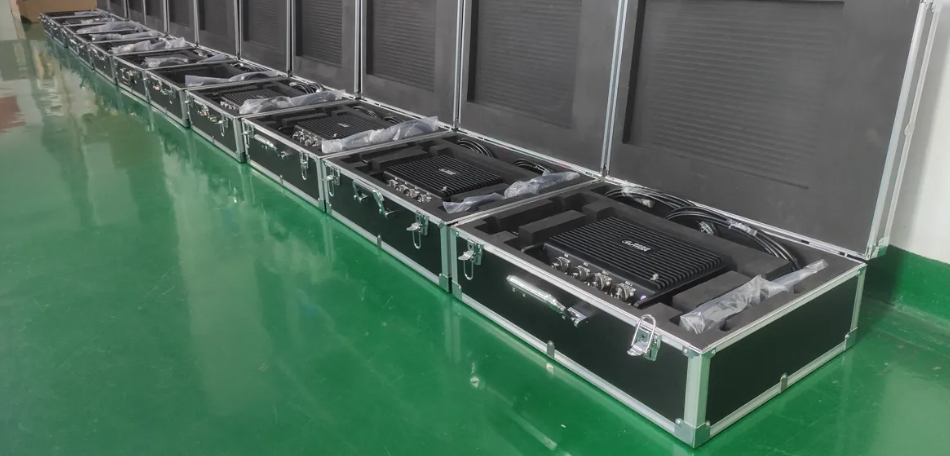

Packing & Delivery

Suntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with BatterySuntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery

Application

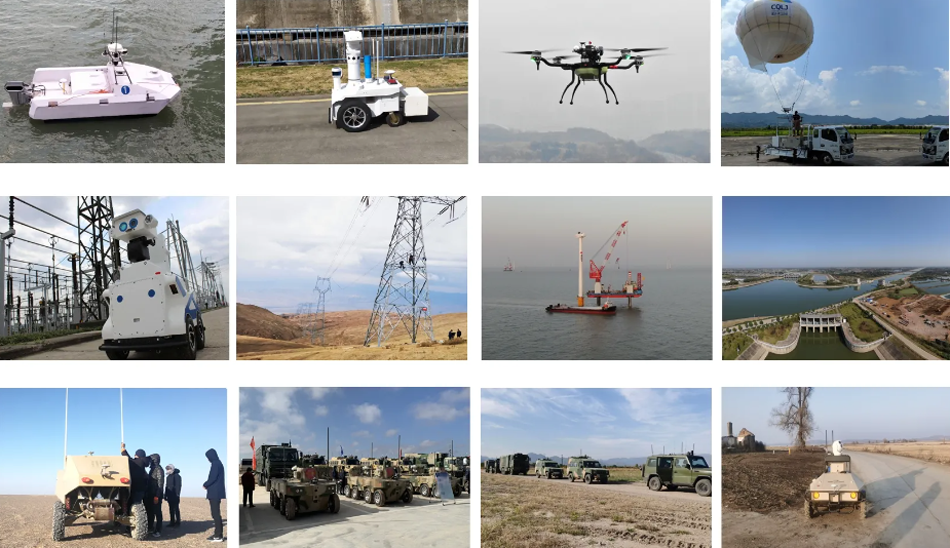

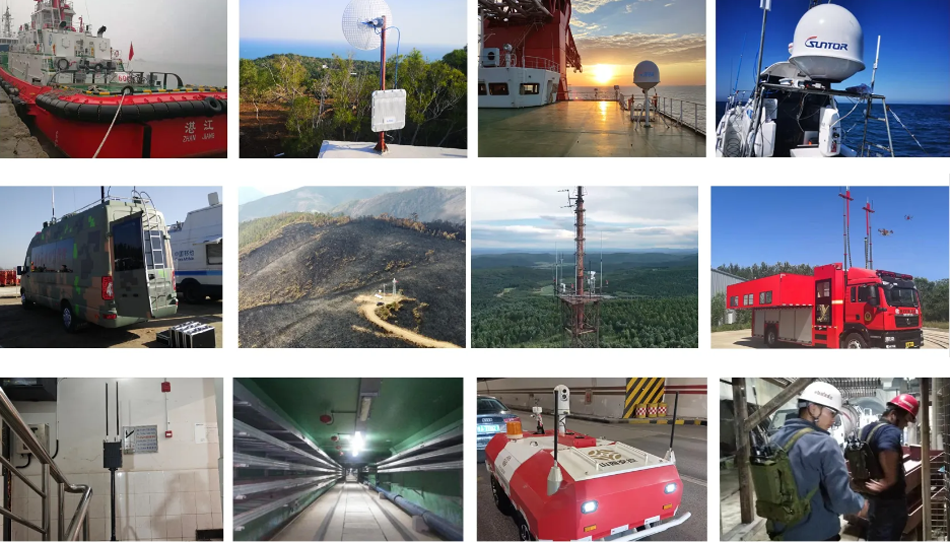

IP Mesh Radio Application Case

Suntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery

Suntor Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery
