Overview
Basic Info.
| Model NO. | MD02 |
| Information Content | Text, Picture, Video, Audio |
| Frequency Range | 1300~1500MHz |
| Networking | ≥ 52 Nodes |
| Security Protection | AES128/256 |
| Power Consumption | ≤ 30W |
| Specification | 350Grams |
| Origin | China |
| Production Capacity | 5000PCS/Month |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Transmitter Power | 2W (1W * 2) |
| Bandwidth | 5/10/20MHz |
| Max Data Rate | 90Mbps@20MHz |
| Power Supply | DC15~36V |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| HS Code | 8517799000 |
Product Description

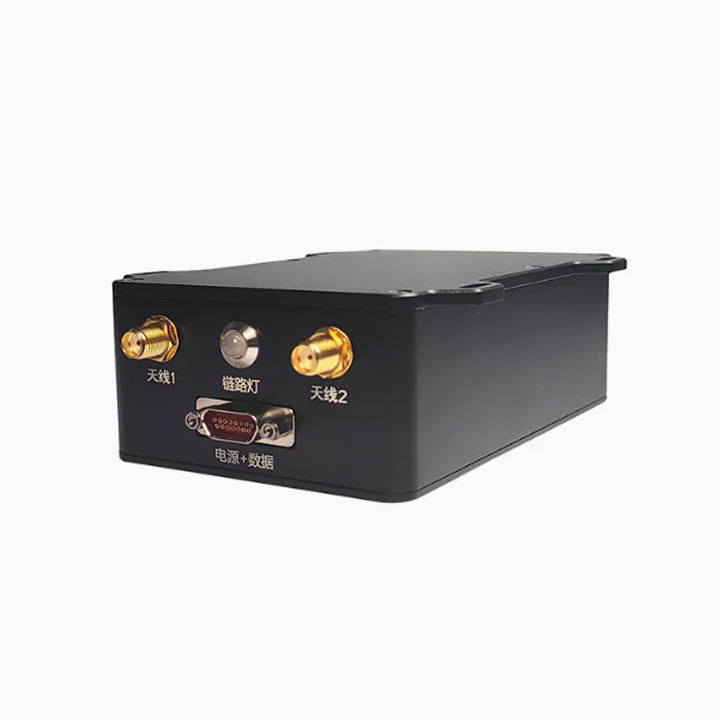

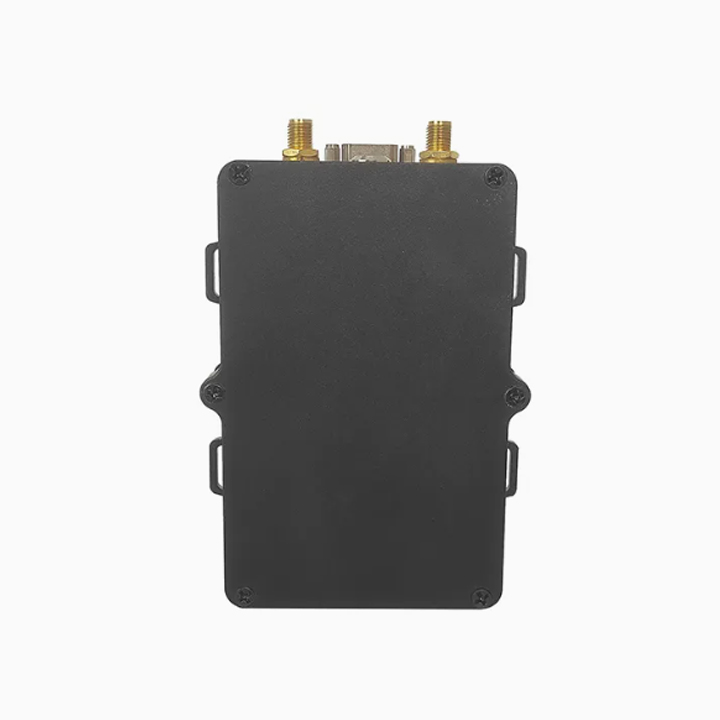

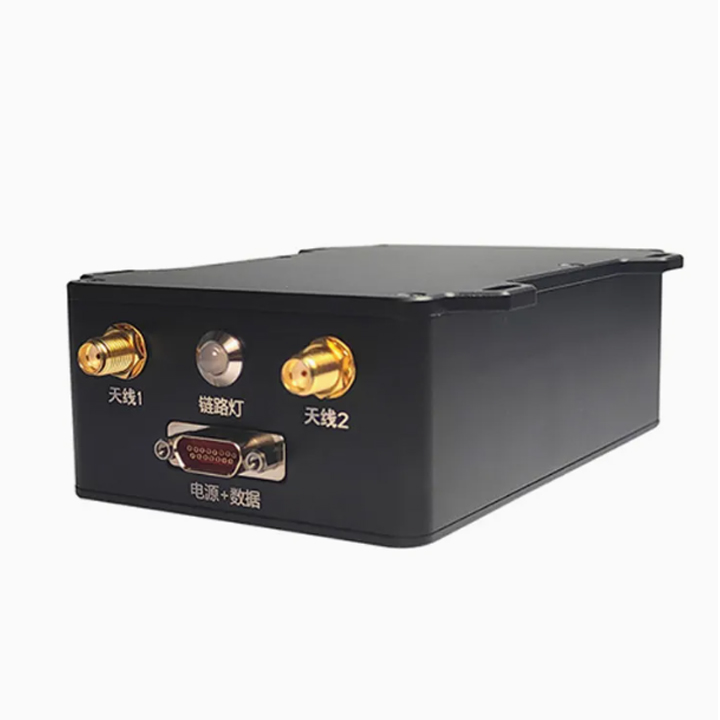

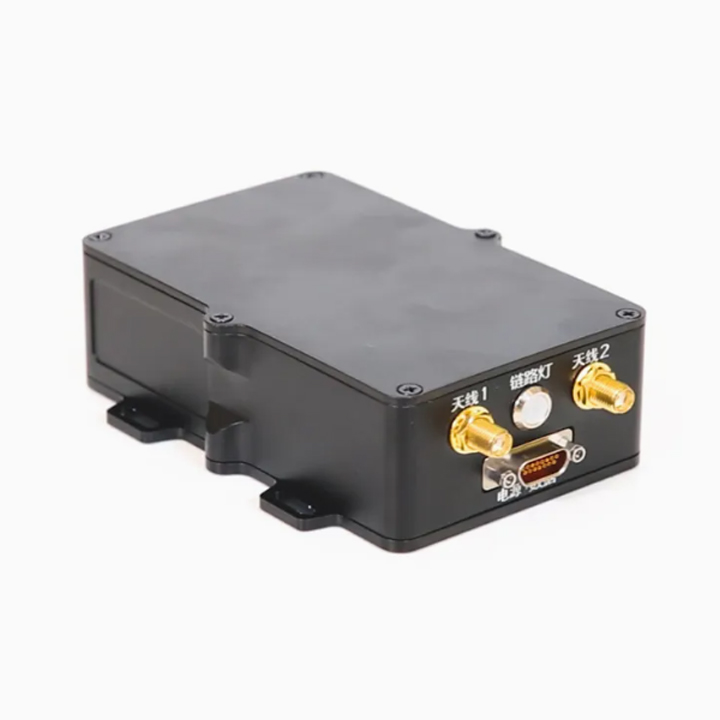

MD02 Drone Mesh Radio
Small Size & Light Weight
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
30KM Air-to-Ground Transmission Distance
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
30KM Air-to-Ground Transmission Distance

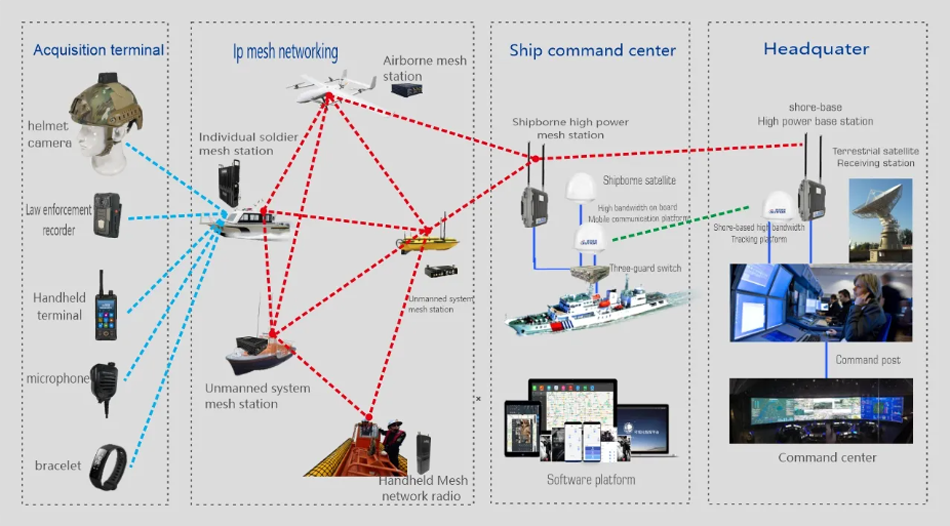

Mesh Radio – Typical System Solution
Specification
|
Wireless
|
|
|
Frequency Range
|
1428-1448MHz
|
|
Bandwidth
|
5M/10M/20MHz
|
|
Transmission System
|
COFDM
|
|
Modulation Mode
|
BPSK/QPSK/16QAM/64QAM
(Self-Adaption) |
|
Data Rate
|
90Mbps@20MHz (Peak)
|
|
RF Power
|
1W × 2
|
|
Receive Sensitivity
|
≤ -92dBm @ 5MHz
|
|
System
|
|
|
Video Input
|
ETH (HDMI/SDI for Optional)
|
|
Audio Input
|
N/A
|
|
Security
|
AES128 / 256 Encryption
|
|
Power Supply
|
DC15 -36V Wide Range Voltage
Power Supply |
|
Power Supply
|
≤ 20W(Typical), ≤ 30W(Peak)
|
|
Networking
|
|
|
Networking Capability
|
≥ 52 Nodes
|
|
Networking Hops
|
≥ 10 Hops
|
|
Access Time
|
5s after Startup of System
|
|
Topology Type
|
Ad-Hoc Network, Star Network,Chain Network
|
|
Interface
|
|
|
RF Antenna
|
SMA × 2
|
|
GPS Antenna
|
N/A
|
|
WIFI Antenna
|
N/A
|
|
Ethernet Interface
|
J30J Connector
|
|
Serial Port Interface
|
J30J Connector
|
|
Power Interface
|
J30J Connector
|
|
Physical
|
|
|
Dimension
|
≤ 107 × 84 × 37mm
|
|
Weight
|
≤ 350g (Host Only)
|
|
Protection Level
|
IP65
|
|
Operating Temperature
|
-30°C-+65°C
|

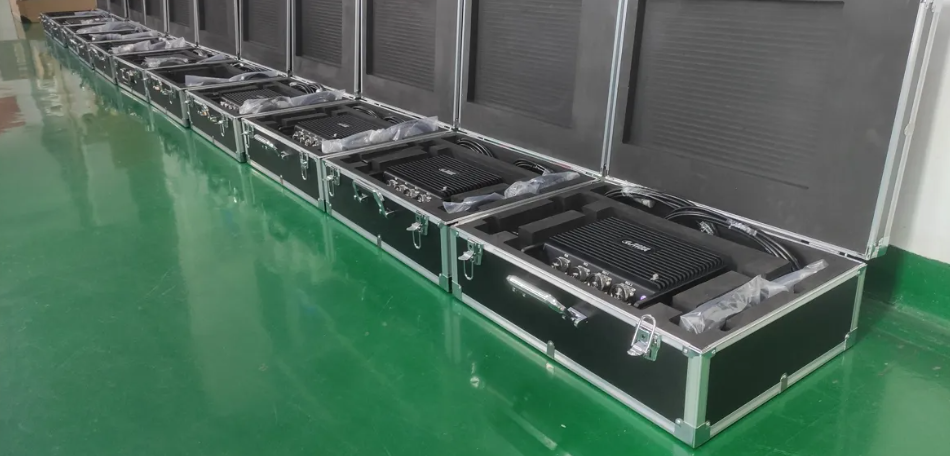

Packaging & Shipping

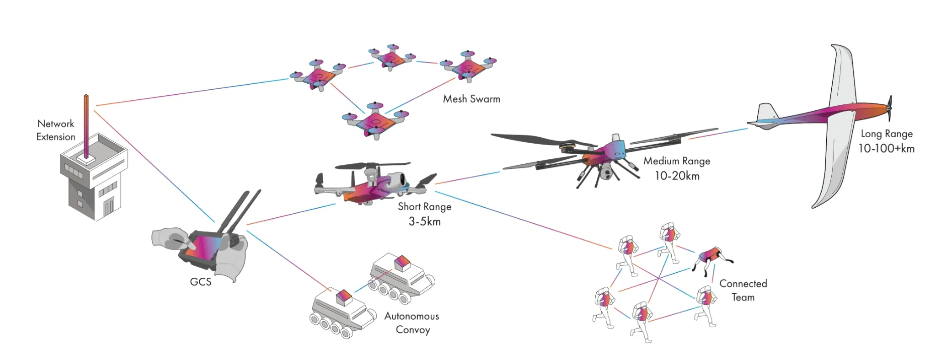

Application
IP Mesh Radio Application Case
