Home » Unmanned System Products » China Moneypro Wireless Video Transmitter Rugged and Secure High Frequency Radios
Manpack IP Mesh Radio Tactical Communication Radio Solutions
Back to products
China Moneypro Drone Data Link Mesh Radio Intelligent Frequency Selection for Data Link Transmission

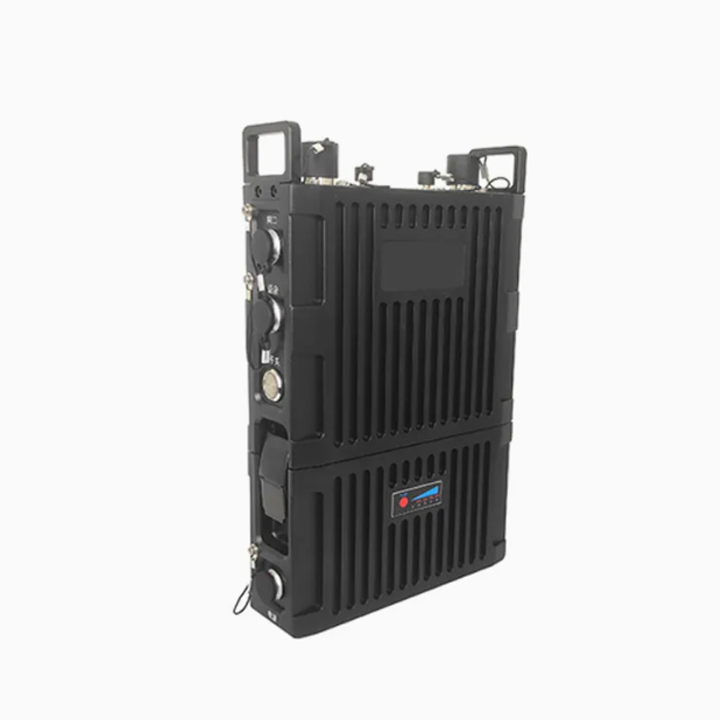

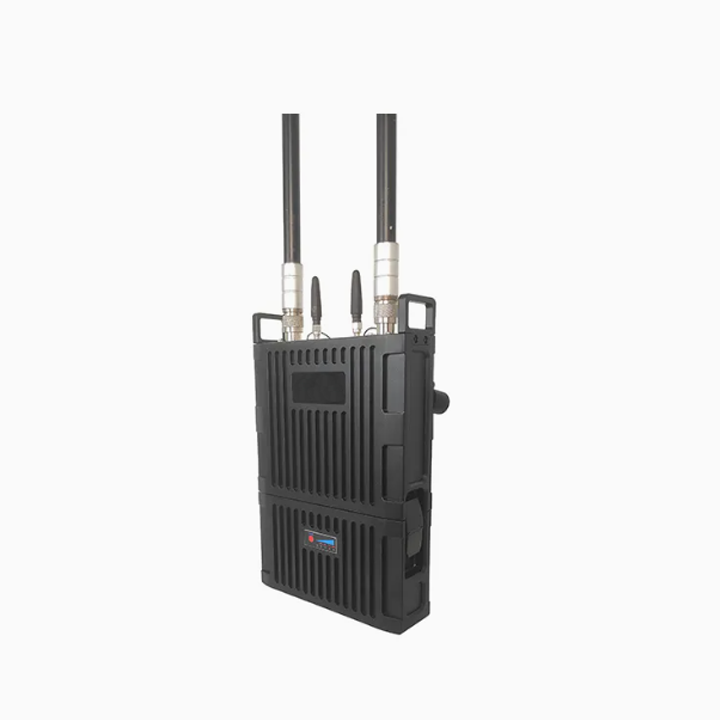

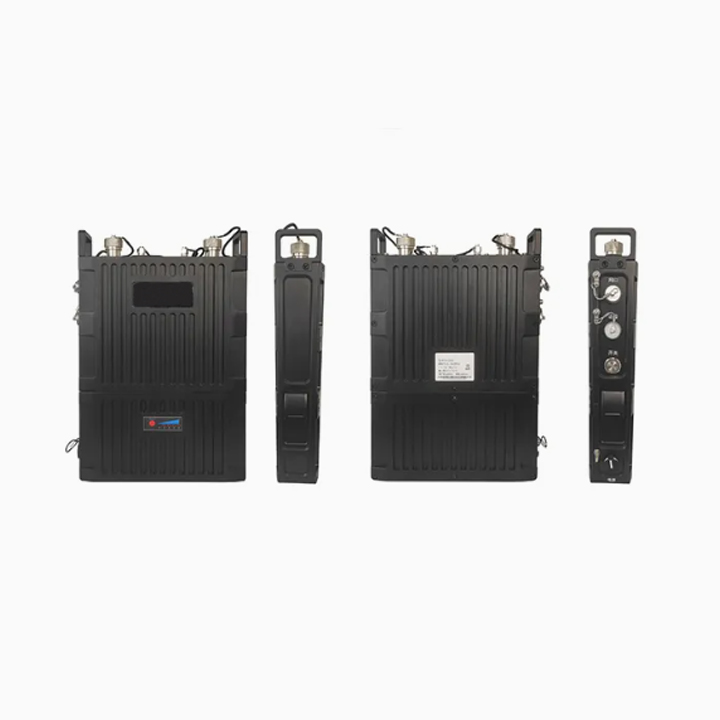

China Moneypro Wireless Video Transmitter Rugged and Secure High Frequency Radios

The China Moneypro Wireless Video Transmitter stands out as a rugged, high-performance solution engineered for reliable video and data transmission in demanding environments. Built with a durable, weather-resistant design, it withstands harsh conditions—from extreme temperatures to physical impacts—making it ideal for field operations, industrial surveillance, and outdoor missions. Leveraging high-frequency radio technology, it delivers low-latency, secure connectivity with strong anti-interference capabilities, ensuring uninterrupted transmission of high-definition video and critical data even in remote or congested areas. Whether deployed for security patrols, construction site monitoring, or emergency response, this transmitter combines robustness and advanced encryption to safeguard sensitive information while maintaining consistent performance, empowering professionals to operate with confidence in challenging scenarios.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 27519852mm
Power Consumption ≤ 30W
Specification 2W (1W*2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W*2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

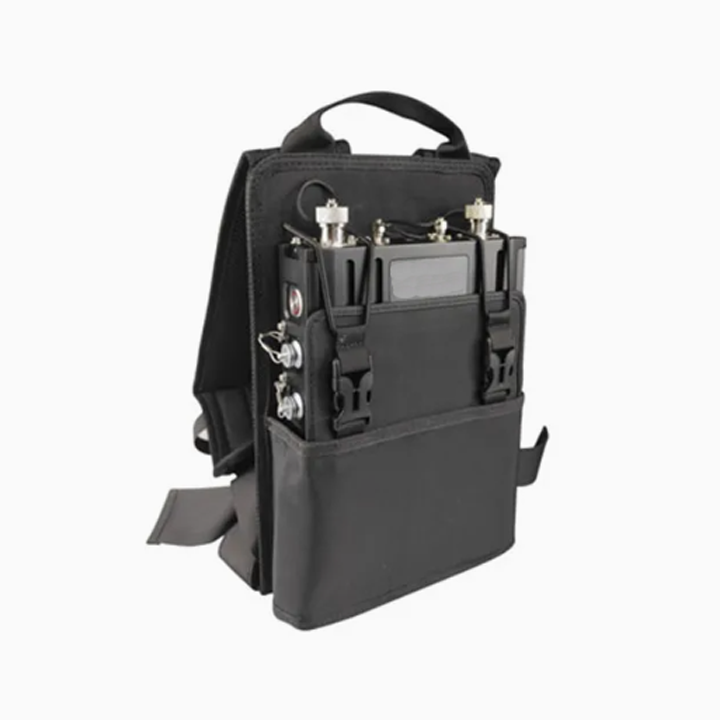

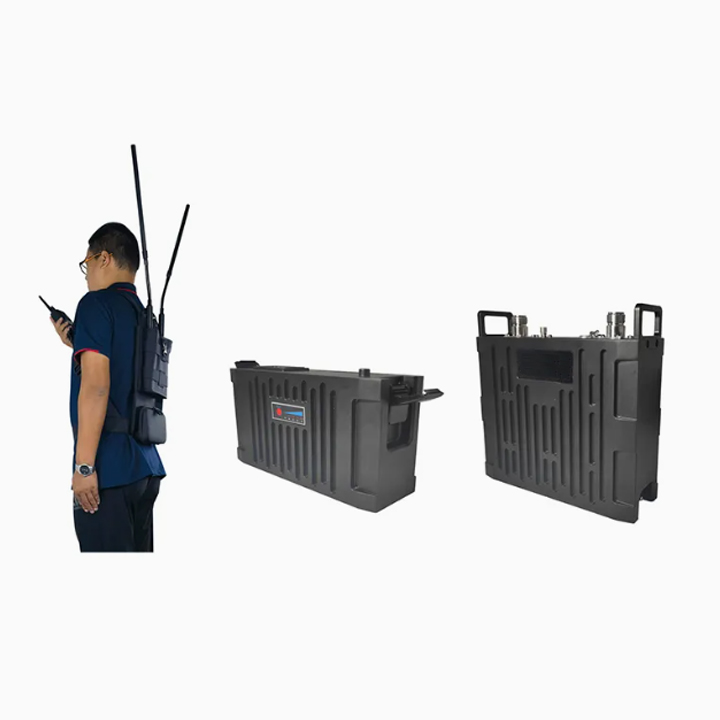

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

Mesh Radio – Typical System SolutionSuntor Wireless Video Transmitter Rugged and Secure High Frequency RadiosSuntor Wireless Video Transmitter Rugged and Secure High Frequency RadiosSuntor Wireless Video Transmitter Rugged and Secure High Frequency Radios

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

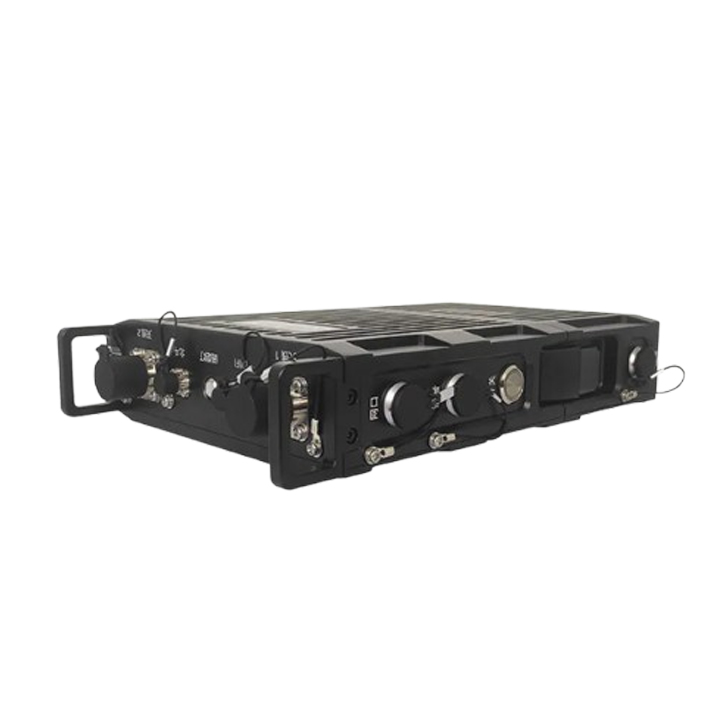

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

Packing & Delivery

Suntor Wireless Video Transmitter Rugged and Secure High Frequency RadiosSuntor Wireless Video Transmitter Rugged and Secure High Frequency Radios

Application

IP Mesh Radio Application Case

Suntor Wireless Video Transmitter Rugged and Secure High Frequency Radios

Suntor Wireless Video Transmitter Rugged and Secure High Frequency Radios
