MYD P39 High Performance Unmanned Vehicle Map Data Remote Integrated Radio
Back to products

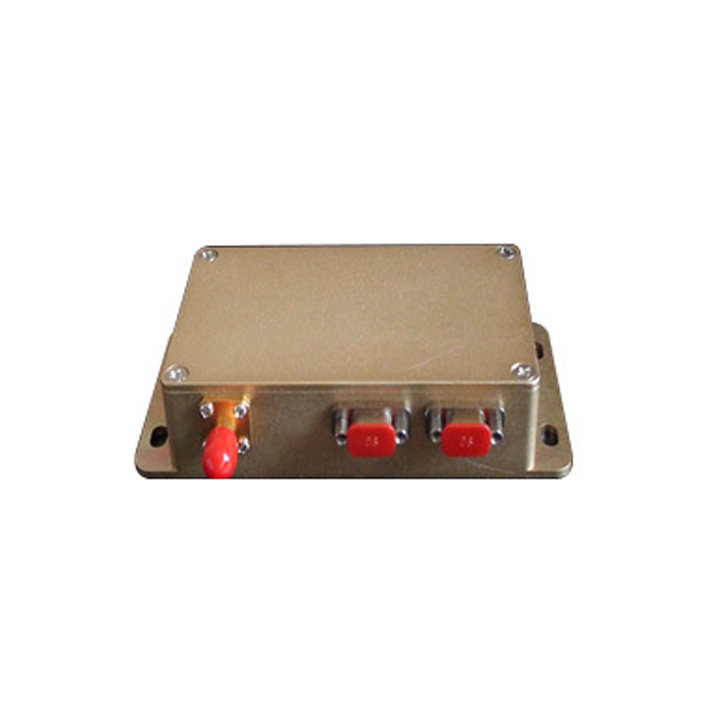

MYD-T900-40AQ-SMA (Quad Serial Ports) 100km+ Transmission And Receiver Hopping Radio

Data Link

In the telecommunications field, a data link serves as a medium to connect two locations, facilitating the transmission and reception of digital information. It can also refer to a suite of electronic components, encompassing transmitters, receivers (both classified as data terminal equipment), and interconnected data telecommunication circuits. These data are managed by link protocols, which enable the transfer of digital data from a data source to a data receiver.
A data chain, on the other hand, is a tactical wireless data communication system that operates across ground-space, space-space, and ground-ground scenarios. It transmits formatted digital information in real time using a bit-oriented approach, leveraging technologies such as modulation/demodulation, encoding/decoding, anti-interference, networked communication, and information fusion—all in accordance with specified information formats and communication protocols. The basic components of a data chain can be condensed into three core elements: terminal equipment, transmission equipment, and communication specifications.
The functions of a data chain include map transmission, data transmission, networking, air-to-ground video transmission, air-to-ground bidirectional data transmission, as well as remote control and telemetry for unmanned aerial vehicles (UAVs) and other aircraft. Additionally, it supports UAV air-based networking and UAV communication relay. Its application scope covers various platforms such as multi-rotor aircraft, fixed-wing UAVs, unmanned helicopters, missiles, and guided projectiles.
Categories: , , , ,
Description

Main Technical Specifications

  • Working frequency: 400-450MHz;
  • Spread spectrum mode: FHSS;
  • Frequency band selection: depending on the different shielding frequency points;
  • Encryption: double, static secret key; configurable;
  • Sensitivity: -108dBm@172kbps;
  • Output power: 1W (configurable, from 100MW to 1W);
  • Data interface: RS232/RS485/RS422;
  • Baud rate of serial port: 300bps～230.4Kbps(asynchronous serial);
  • Air speed: 115200,172000,230400bps configurable;
  • Networking mode: point to point, point to multipoint, storage and forwarding relay, roaming, TDMA;
  • Diagnostic port: one, RS232;
  • Diagnosis contents: power supply voltage, temperature, RSSI, real-time event recording;
  • Working voltage: 10V ~ 30VDC;
  • Power consumption: no more than 18W;
  • Connector: Antenna: SMA; one; Data: minidb9 (×2).
  • Environmental conditions: ambient temperature: – 40 ℃ ~ + 85 ℃;
  • Environmental humidity: 5-95%, non condensing.
  • Total weight: 220g;
  • Size: no more than 122mm×70mm×42mm.
