Home » Unmanned System Products » Digital Communication Module MG-150
Digital Communication Module MG-146
Back to products
Digital Communication Module MG-155

Digital Communication Module MG-150

The Moneypro MG-150 is an advanced LoRa-based wireless communication module engineered for long-range drone flight control and real-time image/data transmission. Combining robust spread-spectrum technology with high-speed data handling, the module ensures secure and stable communication between ground stations and UAVs, even in challenging environments. With adaptive frequency hopping, configurable transmit power (up to 2W), and interference resilience, the MG-150 achieves operational ranges of 20+ kilometers in open areas while maintaining low power consumption. Its compact design supports seamless integration with flight controllers and camera systems, making it ideal for applications such as aerial surveying, precision agriculture, search and rescue, and industrial inspections.

Categories: Anti Jamming & GNSS Antennas, Digital Communication Modules
Share:
  • Description
Description

Digital Communication Module MG-150 Details

Code: MG-150
Product: Digital Communication

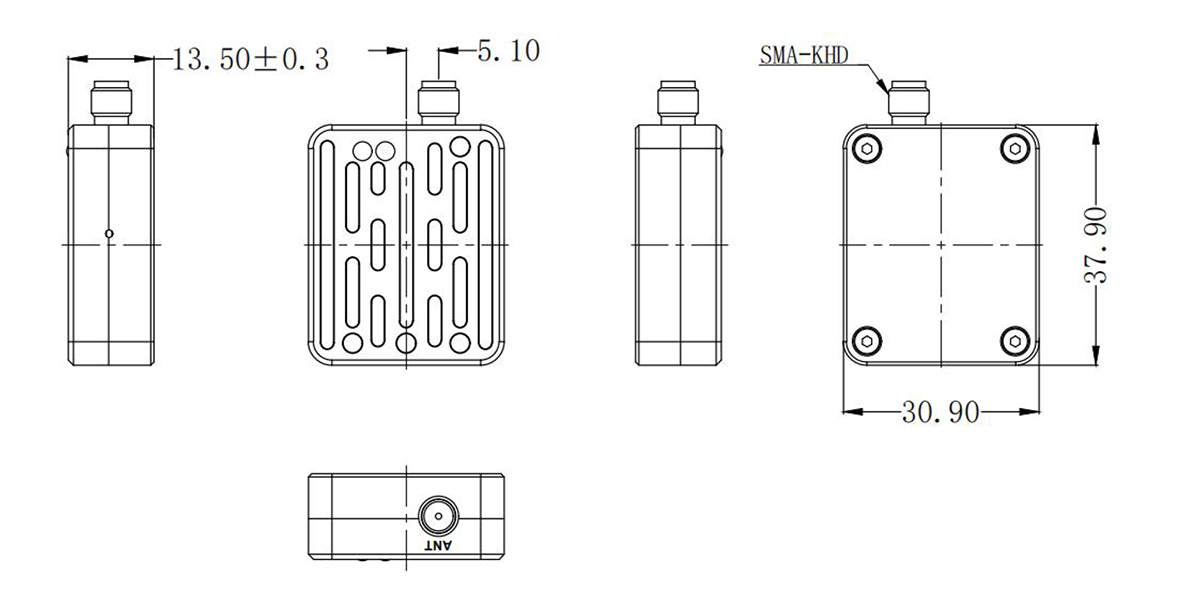

Size: 37.9*30.9*13.5mm
Brand: Moneypro
Model: MG-150



Digital Communication Module MG-150 Digital Communication Module MG-150Digital Communication Module MG-150

Related products

Sensor MP-B544

Moneypro IMU Inertial Measurement Unit, Three-axis Gyroscope, Three-axis Accelerometer, Intelligent Driving Robot MP-B544

GNSS Module MQD-357

Moneypro single Beidou module BD antennaized GNSS positioning module navigation timing pure Beidou module MQD-357

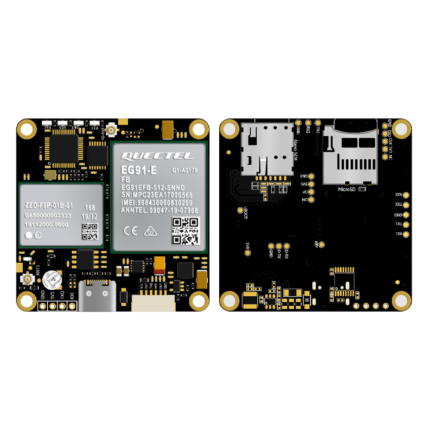

GNSS Module MP-540
