Dual Link Radio A Data Link Transmission Transmit Remote Control Signal and Digital Signal Simultaneously for UAV
The Dual Link Radio A is a specialized data link solution designed for UAVs, enabling simultaneous transmission of remote control signals and digital data—streamlining communication in aerial operations.
Its dual-link capability ensures reliable, parallel transmission of critical control commands and digital information (such as telemetry or sensor data), minimizing latency and enhancing operational efficiency.
Compact and easy to integrate with UAV systems, it delivers stable performance for various drone applications, from industrial inspections to aerial surveys, ensuring seamless, real-time connectivity between ground control and airborne units.

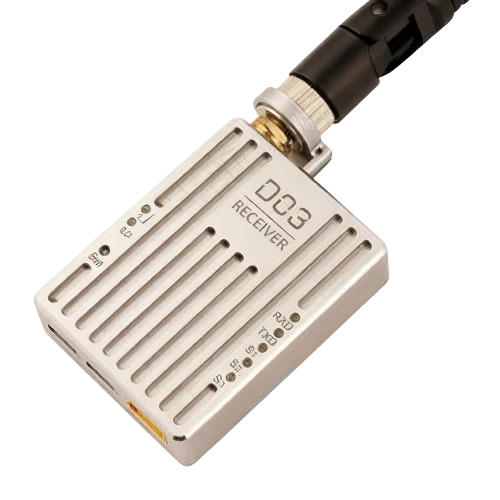

The D03 dual-link radio is a data transmission device capable of simultaneously sending both remote control signals and digital signals.
It can enhance the original remote control signal from the ground end and transmit it to the airborne end alongside data transmission signals.
Primarily designed to address issues of short range and poor transmission quality for both remote control and data signals, the D03 operates in the 900MHz frequency band, with a maximum transmission range of up to 30km.
Featuring a compact size, high integration, and high sensitivity, it offers reliable performance for various connectivity needs.
An industrial-grade data link module guarantees both the range and stability of data transmission in Non-Line-of-Sight (NLOS) environments.
With its compact size and lightweight design, it is ideally suited for small unmanned aerial vehicles (UAVs).
Boasting low power consumption and an anti-interference design, it is highly suitable for NLOS data transmission and control systems used in UAVs and robots.

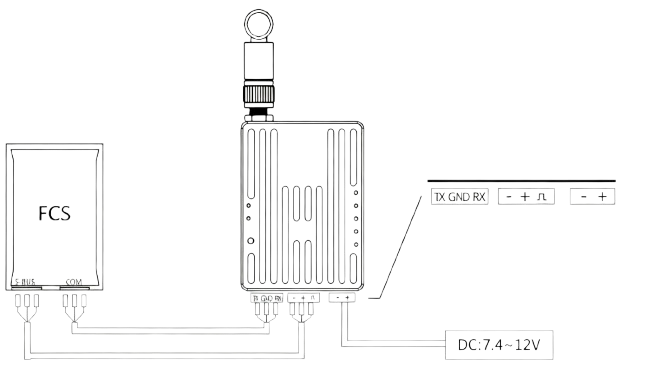

Connection Diagram of Airborne End

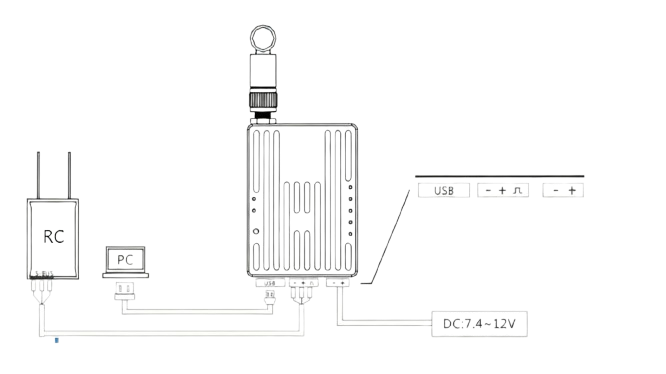

Connection Diagram of Ground End
Specification
D03
ltem
Parameters
Note
Frequency
902-928MHz
Power
0.1-1w
adjustable
Data rate
100K/200k
adjustable
Baud rate
1200-115200
adjustable

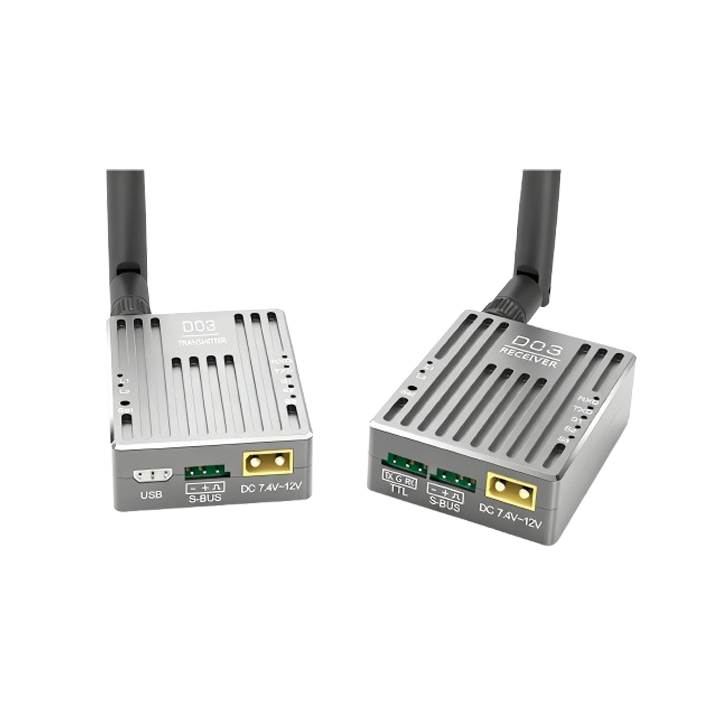

Ground unit (Transmitter)
SBuS port*1; USB port*1
Airborne unit
(Receiver)
SBuS port*1; Serial port*1
Serial port is full duplex serial port, TTL signal
