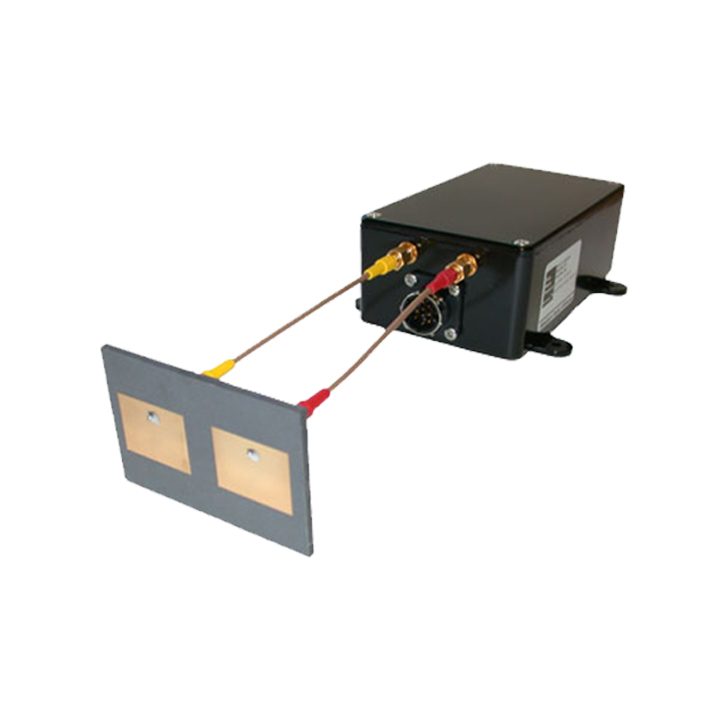

Full Function Radio Altimeter MMK-4

The MMK-4 altimeter is a full-function radio altimeter that meets aerospace standards; serving as a key component for longitudinal altitude channel control, it can be widely applied in cruise missiles and aircraft to measure altitude relative to the sea or ground. The MMK-4 adopts linear modulation coefficient technology adaptive to height changes and echo signal narrow-band receiving technology to enhance the product’s resistance to active interference, uses coherent local oscillator mixing to achieve superior performance in resisting co-frequency asynchronous interference, employs echo signal spectrum front detection technology to improve tracking accuracy, and follows the design principles of serialization, standardization, and modularization—endowing it with good product inheritance, maturity, and reliability.

Categories: , , , ,
Description

Main Electrical Performance

  • Operating frequency: 4300 ± 100MHz;
  • Radiation power: 23 ~ 26dBmW;
  • Receiving sensitivity: better than – 90dBmW;
  • Height measurement capacity: no less than 3000m;
  • Altimetry accuracy: ±0.6m, 0.5m﹤H≤10m; ±(0.3+0.03×H) m, 10m﹤H≤10000m;
  • Adaptive flight attitude: ± 30° in pitch and ± 30° in roll;
  • Horizontal velocity: 0-3 mach;
  • The power supply DC is 18 ~ 36V, and the consumption current is not more than 0.8A;
  • Working temperature: – 40 ～+ 60 ℃;
  • Output form: RS422;

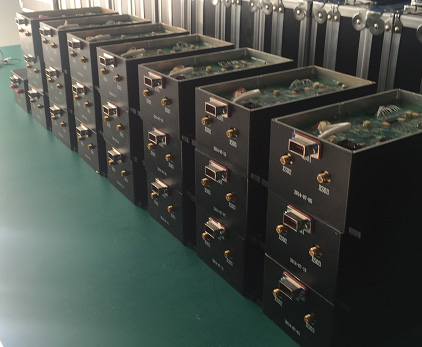

Full Function Radio Altimeter MMK-4



Mechanical Parameters

Dimension and weight of each part of altimeter

Serial number Name Size Weight(kg)
1 Measurement and control unit Body size: 160mm×86mm×67mm ≤1.5
2 Antenna 192mm×54mm×6mm; (without SMA connector) ≤0.2×2
3 Feeder Transmission feeder length: 2800mm ≤0.15
4 Feeder Receiving feeder length: 2800mm ≤0.15
