GNSS Receiver MN-808H

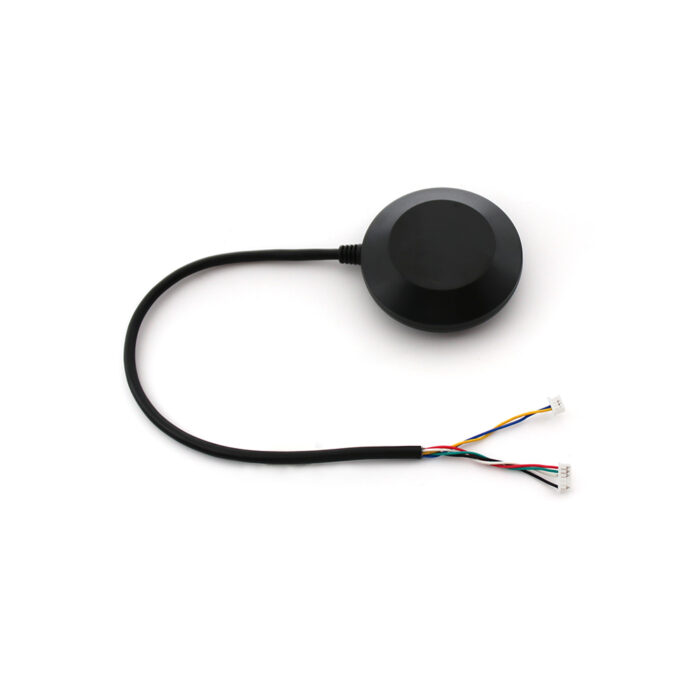

GNSS Receiver MN-808Q

The Moneypro MN-808Q represents a breakthrough in high-precision positioning technology, integrating multi-frequency GNSS capability into a compact, industry-standard form factor. This advanced receiver module delivers centimeter-level accuracy through sophisticated RTK and PPP technologies, making it suitable for demanding applications where precision positioning is critical. The module’s robust design and low-power architecture ensure reliable performance across various environmental conditions and operational scenarios.

Categories: ,
Description

Technical Features & Performance Advantages

  • Advanced Multi-Band Technology

    • Dual-frequency support for L1/L2/E5/B1/B2 signals

    • 672-channel GNSS engine for simultaneous satellite tracking

    • Support for all major constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS

    • Advanced anti-jamming technology with multi-path mitigation

  • High-Precision Performance

    • RTK positioning accuracy: Horizontal 8mm + 1ppm, Vertical 15mm + 1ppm

    • SBAS positioning accuracy: Better than 50cm

    • Cold start time: < 30 seconds

    • Reacquisition time: < 1 second

  • Optimized System Architecture

    • Ultra-low power consumption: < 1.2W during full operation

    • Advanced power management with multiple operational modes

    • Standard: Standard positioning mode

    • Economy: Reduced power consumption mode

    • Sleep: Minimal power standby mode

    • Integrated data logging with expandable memory support

Application Scenarios

  • Precision agriculture and autonomous farming equipment

  • UAV navigation and drone control systems

  • Marine navigation and hydrographic surveying

  • Construction machinery automation and guidance

  • Deformation monitoring and structural health assessment

  • Scientific research and geophysical measurement

  • Robotics and autonomous vehicle navigation

Development Support

  • Comprehensive SDK with development tools

  • Multiple output protocols: NMEA-0183, RTCM, proprietary binary

  • Firmware update capability via USB

  • Technical documentation and application notes

  • Reference design and integration support

Certifications & Compliance

  • CE, FCC, ROHS compliant

  • ISO 9001 manufacturing quality system

  • REACH environmental compliance

Why Choose Moneypro MN-808Q?

The MN-808Q combines high-precision positioning performance with exceptional power efficiency in a compact industrial-grade package. Its multi-frequency, multi-constellation capability ensures reliable operation even in challenging environments, while the comprehensive development support enables rapid integration into various applications. Backed by Moneypro’s quality assurance and technical expertise, the MN-808Q provides a future-proof solution for demanding positioning requirements across multiple industries.
