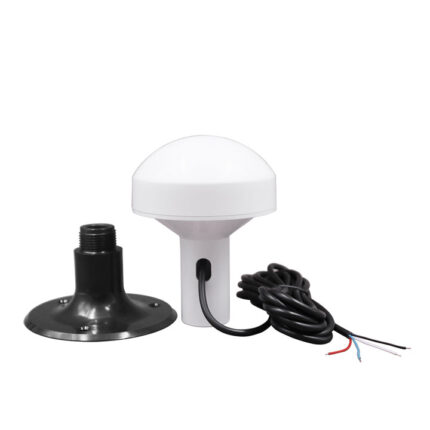

GNSS Receiver MP-573N
Back to products
GNSS Receiver MP-573DN

GNSS Receiver MP-573DU

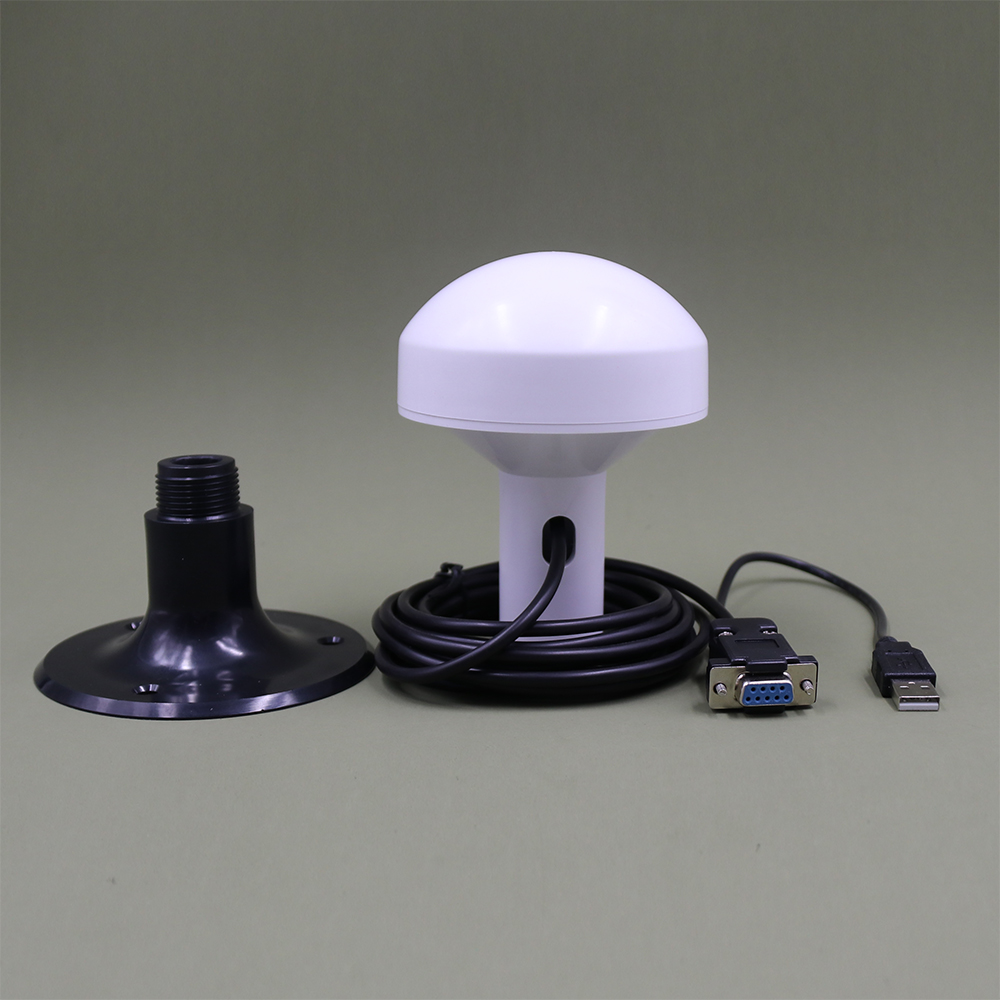

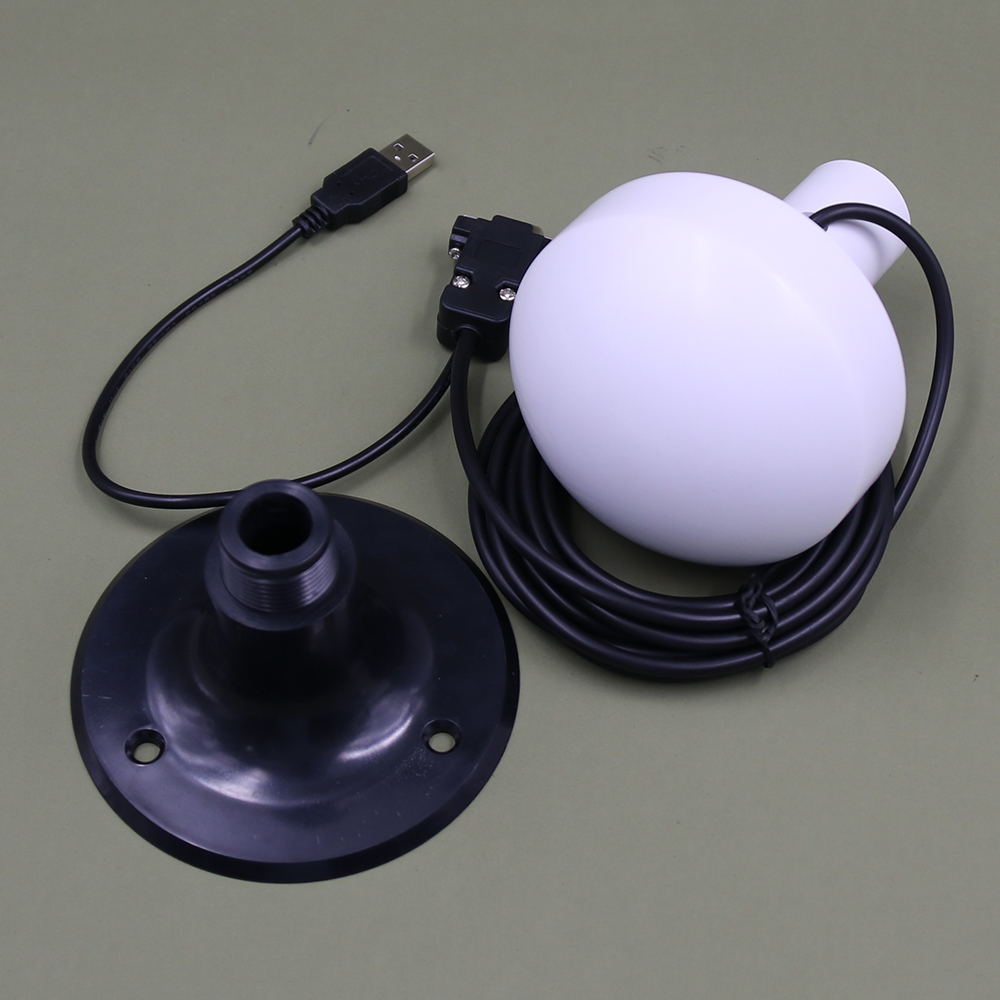

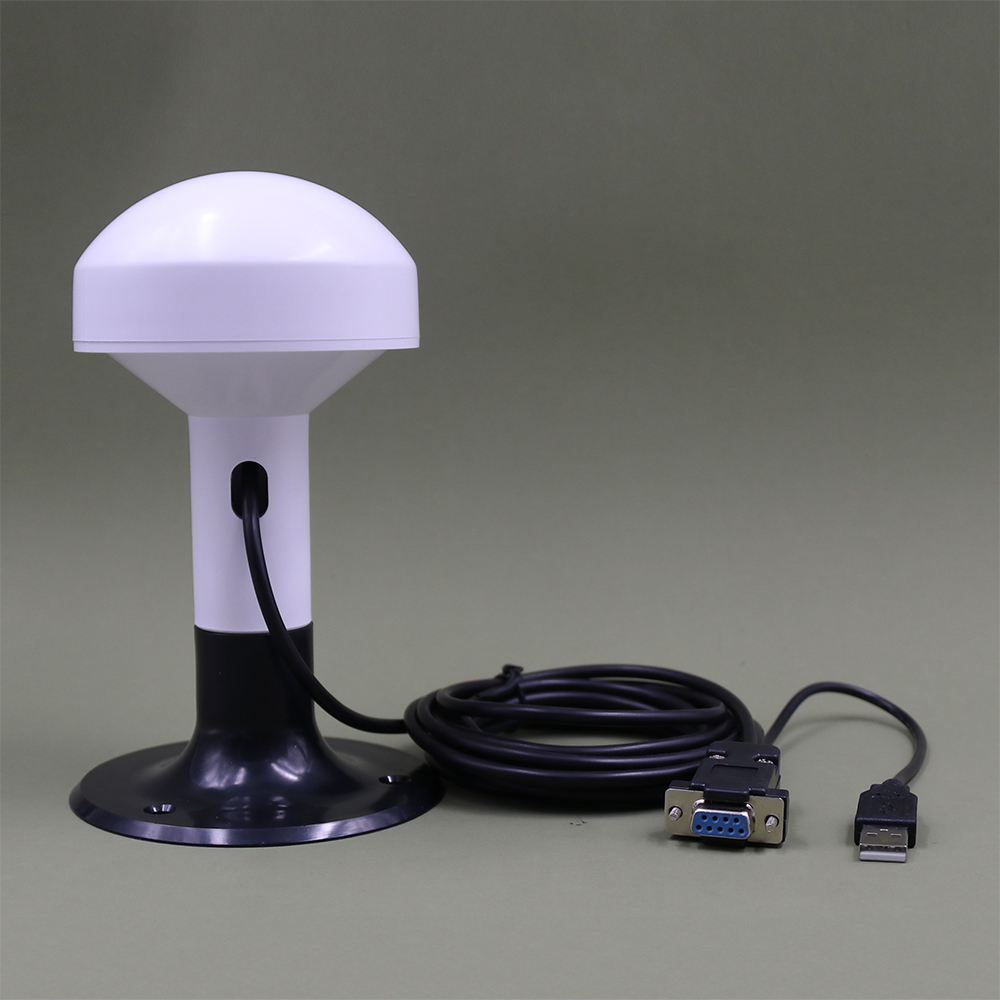

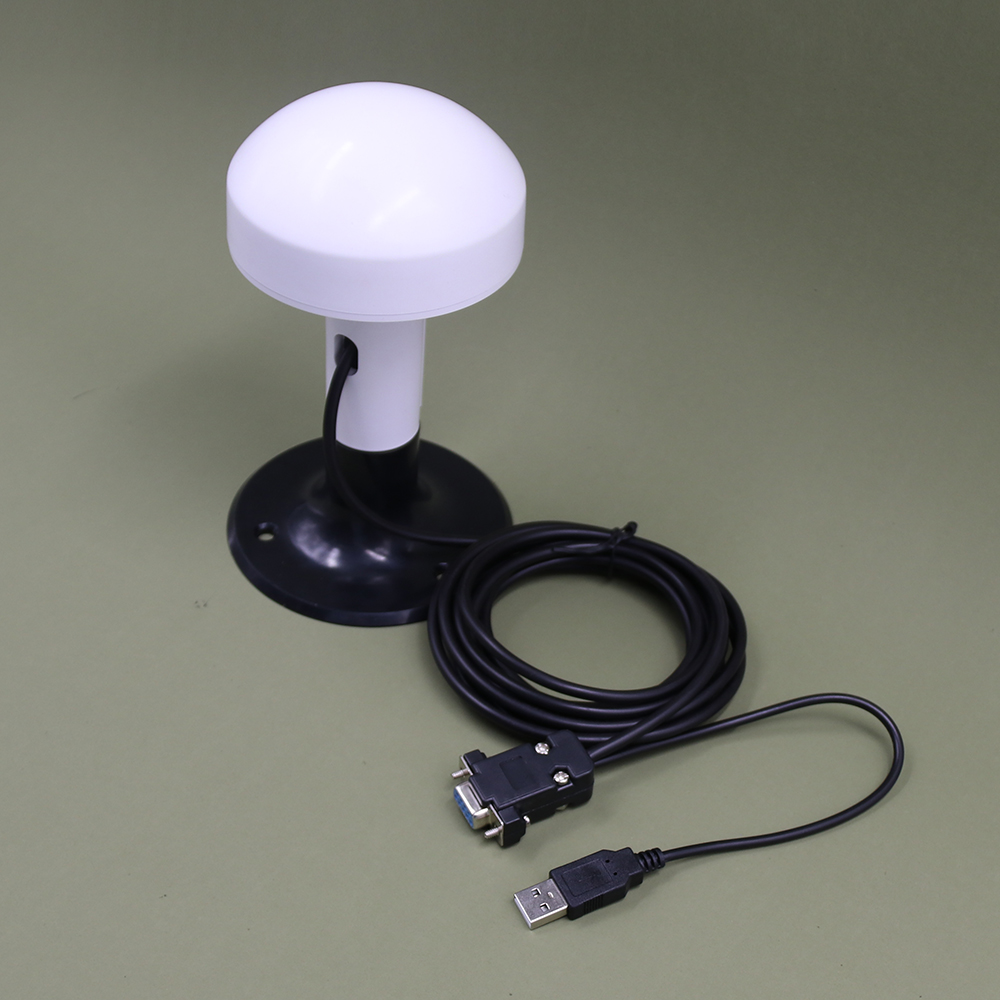

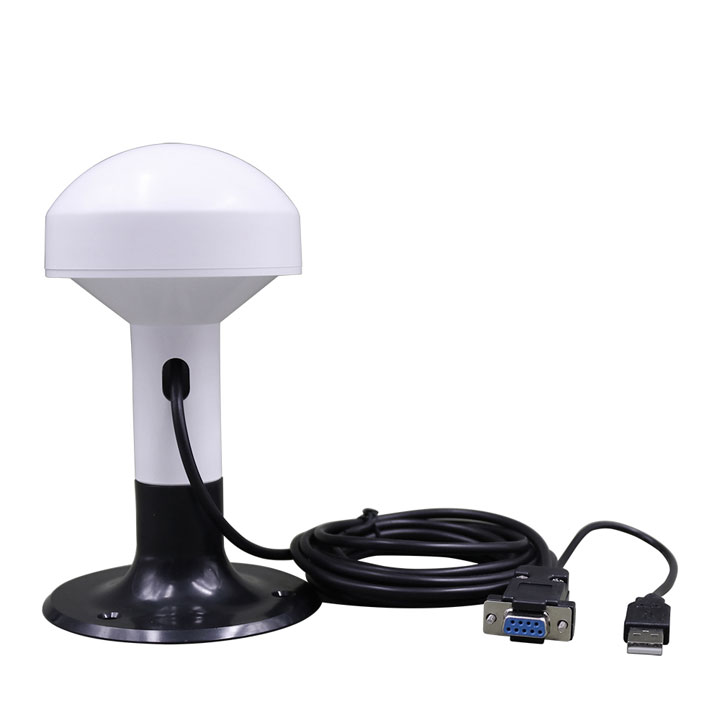

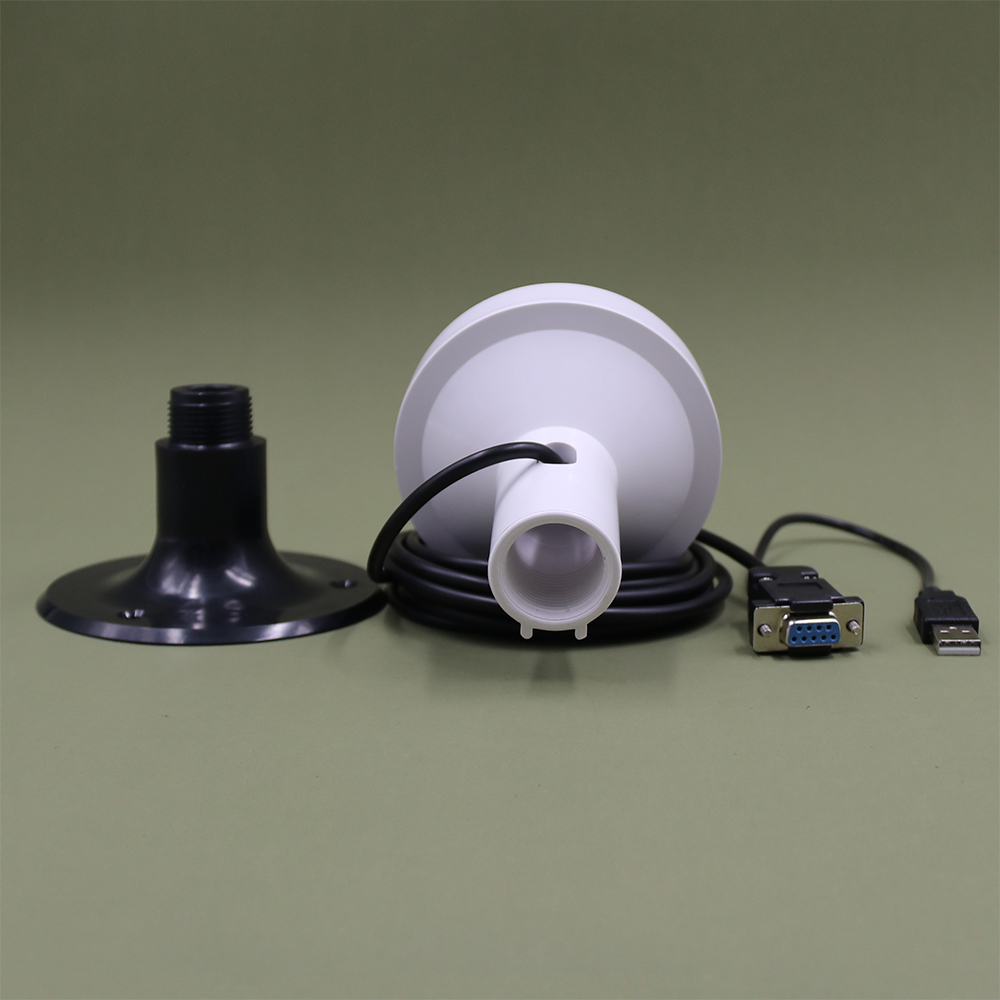

The Moneypro MP-573DU represents the pinnacle of marine navigation antenna technology, integrating a sophisticated 35dB gain ceramic patch element within a ruggedized mushroom-style housing. Engineered specifically for the demanding requirements of modern maritime operations, this advanced GNSS receiver delivers exceptional signal reception across multiple satellite constellations while maintaining reliable performance in the harshest marine environments. The antenna’s optimized design ensures stable positioning data for critical navigation systems, AIS transceivers, and vessel monitoring applications, making it an indispensable component for both commercial and recreational vessels.

Categories: ,
Description

Technical Features & Performance Advantages

  • Advanced Signal Processing System

    • 35dB low-noise amplification with active temperature compensation

    • High-purity ceramic patch element with optimized radiation pattern

    • Multi-stage filtering architecture eliminates cellular and RF interference

    • Enhanced signal tracking algorithms for rapid satellite acquisition

  • Professional Marine Construction

    • IP68-rated fully submersible enclosure withstands extreme weather conditions

    • Corrosion-resistant 316 stainless steel mounting hardware and base

    • Integrated lightning protection (IEC 60945 compliant)

    • UV-stabilized RADOME material maintains performance in direct sunlight

  • Comprehensive Constellation Support

    • Full GNSS compatibility: GPS, GLONASS, Galileo, BeiDou, QZSS

    • Dual-frequency reception capability (L1/L2, L5)

    • Simultaneous AIS reception and satellite positioning

    • Support for all major differential correction services

Marine Applications

  • Class A and Class B AIS transponder systems

  • Integrated bridge navigation systems

  • Vessel Traffic Management Systems (VTMS)

  • Search and rescue coordination systems

  • Fishing fleet monitoring and management

  • Port and harbor surveillance networks

  • Oceanographic research vessels

  • Commercial shipping navigation

Certifications & Compliance

  • Compliant with IMO performance standards for AIS

  • Meets IEC 62320-1 marine electronic requirements

  • ROHS 3 and REACH environmental compliance

  • Manufactured under ISO 9001:2015 quality system

Installation Guidelines

For optimal performance, install the MP-573DU at the highest practical location on the vessel, ensuring a clear 360-degree view of the horizon. Maintain minimum 2-meter separation from other transmitting antennas. Use proper marine sealants for all connector interfaces to prevent moisture ingress. Regular inspection of cables and connectors is recommended as part of routine vessel maintenance.

Why Select Moneypro MP-573DU?

The MP-573DU combines cutting-edge GNSS technology with uncompromising marine-grade construction. Our rigorous testing protocol ensures reliable performance in the most challenging conditions, while our global technical support network provides expert assistance for system integration. Backed by Moneypro’s comprehensive 3-year warranty and lifetime technical support, the MP-573DU represents the smart choice for professionals who demand reliability and precision in marine navigation.
