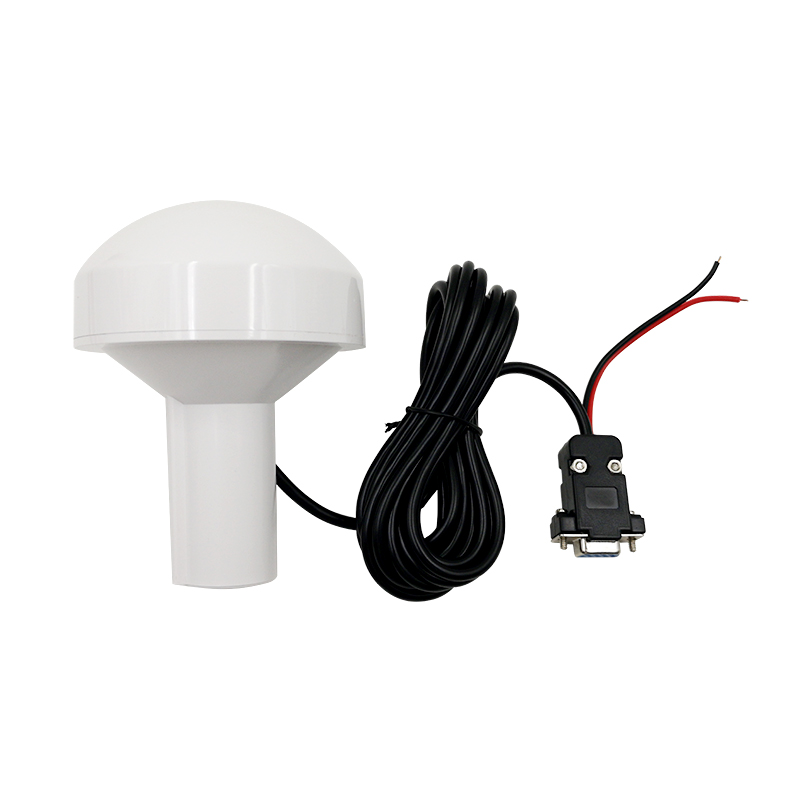

GNSS Receiver MQD-27DN

Key Features & Technical Advantages

• Advanced Signal Processing Technology

  • High-sensitivity BDS signal reception chipset ensures rapid satellite acquisition and stable tracking

  • Multi-frequency support enables precise positioning accuracy within 2.5 meters

  • Advanced anti-jamming technology maintains signal integrity in electrically noisy environments

  • Low-power consumption design with intelligent power management system

• Robust Mechanical Construction

  • IP67-rated waterproof enclosure withstands harsh weather conditions and industrial environments

  • UV-resistant polymer housing maintains structural integrity under prolonged sun exposure

  • Wide operating temperature range (-40°C to +85°C) ensures reliability in extreme climates

  • Reinforced cable connections and strain relief provide long-term mechanical durability

• Flexible Interface & Integration Options

  • Multiple interface protocols including UART, USB, and GPIO for versatile system integration

  • Configurable data output formats compatible with most industrial control systems

  • Expandable memory for data logging and position history storage

  • Programmable operation modes adaptable to various application scenarios

Application Scenarios

• Industrial automation and robotics positioning systems

• Agricultural machinery navigation and precision farming

• Fleet management and vehicle tracking solutions

• Marine navigation and fishing vessel monitoring

• Structural health monitoring and geotechnical surveying

• Scientific research and environmental data collection

• DIY projects and prototype development

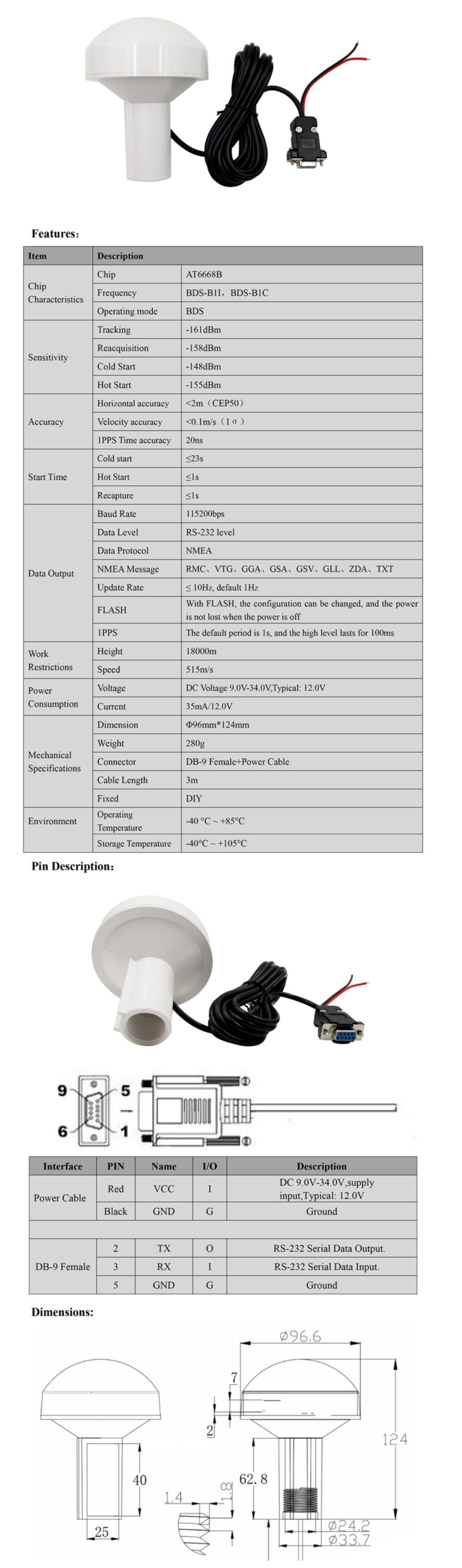

Technical Specifications

• Model: MQD-27DN

• Supported Systems: BDS (BeiDou Navigation Satellite System)

• Positioning Accuracy: 2.5 meters CEP

• Tracking Sensitivity: -162 dBm

• Update Rate: 1Hz to 10Hz (configurable)

• Operating Voltage: 3.3V to 5V DC

• Power Consumption: <1.2W during normal operation

• Interface Types: UART, USB 2.0 (customizable options available)

• Antenna Type: Integrated mushroom-head with ground plane

• Operating Temperature: -40°C to +85°C

• Storage Temperature: -55°C to +95°C

• Dimensions: 85mm diameter × 45mm height

• Weight: 210 grams

Customization Services

Moneypro offers comprehensive customization options for the MQD-27DN, including:

• Interface type and protocol adaptation

• Cable length and connector type modifications

• Firmware customization for specific application requirements

• Housing color variations for different environments

• Bulk ordering with OEM/ODM services available

Why Choose Moneypro MQD-27DN?

The MQD-27DN combines reliable performance with exceptional durability, making it the ideal choice for professionals who cannot compromise on positioning accuracy. Our extensive customization capabilities ensure that the product can be tailored to meet your exact specifications, while our rigorous quality control guarantees consistent performance across all units.
