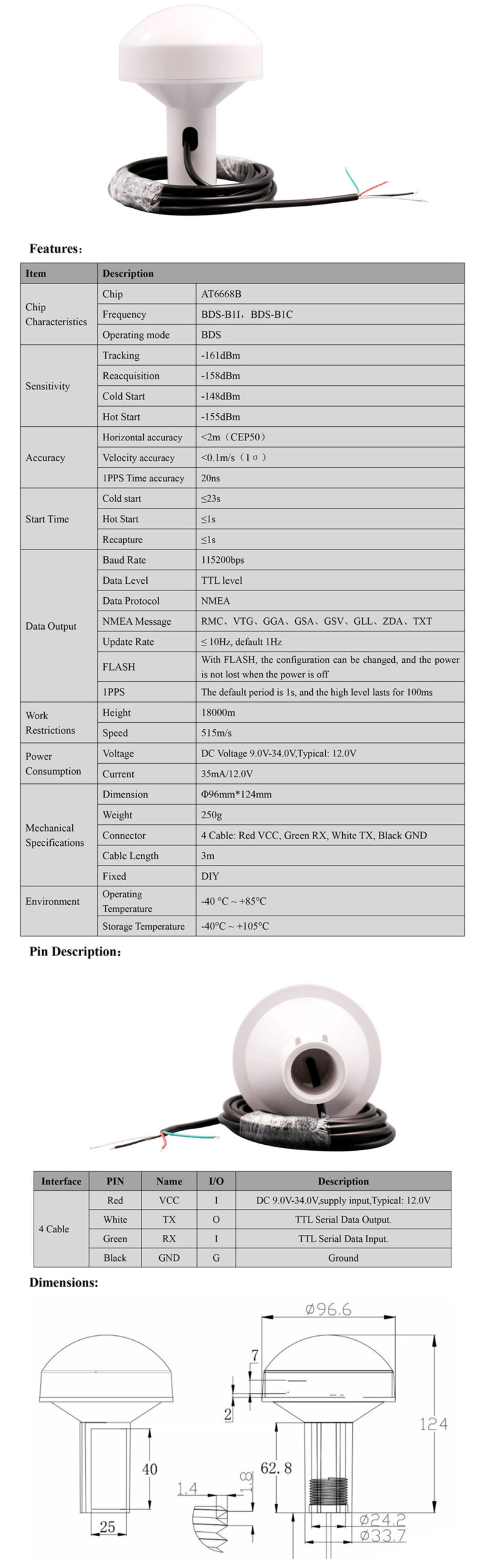

Technical Specifications
Core Performance
-
Single BeiDou B1 signal reception
-
44-channel parallel processing
-
Cold start time: <35 seconds
-
Hot start: <1 second
-
Reacquisition: <2 seconds
-
Tracking sensitivity: -155 dBm
-
Capture sensitivity: -142 dBm
Integrated Antenna System
-

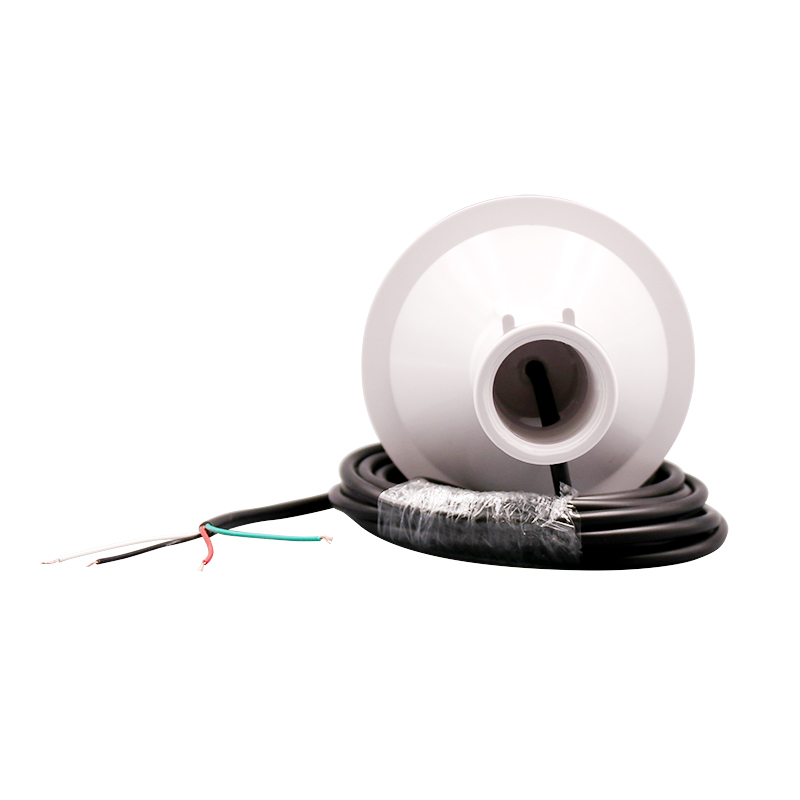

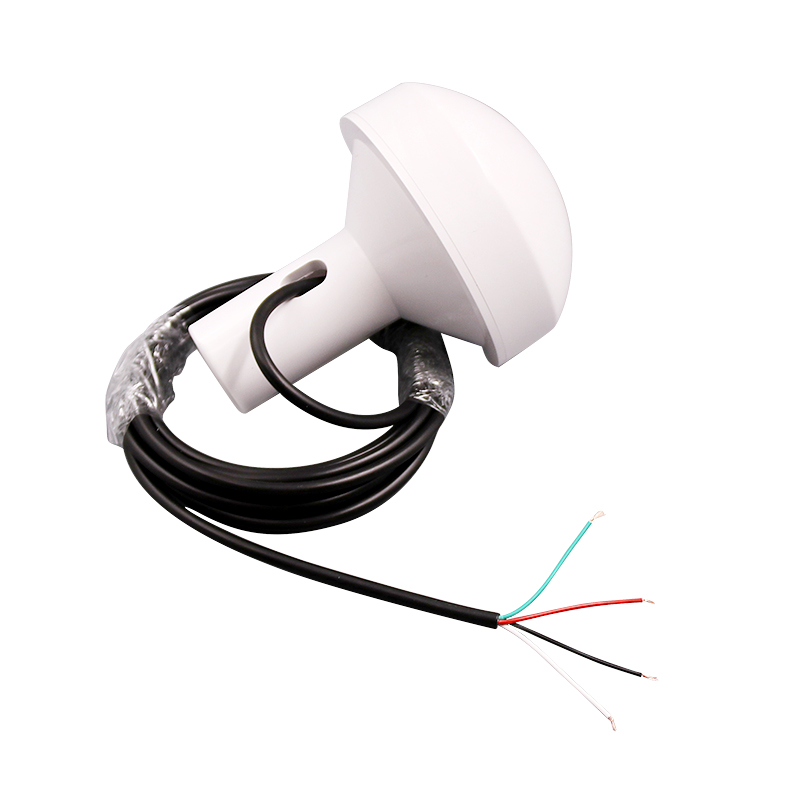

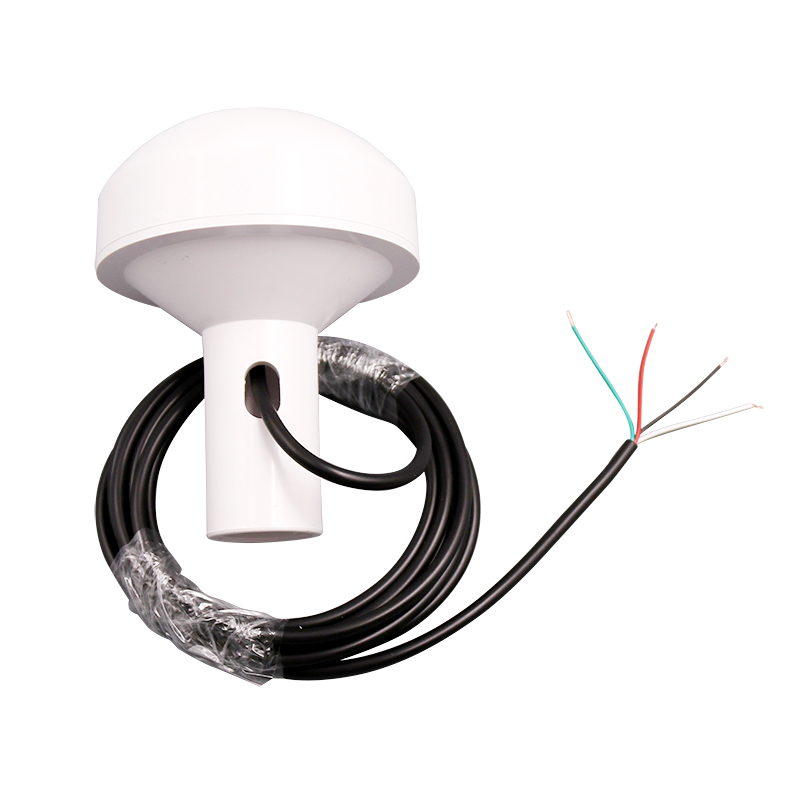

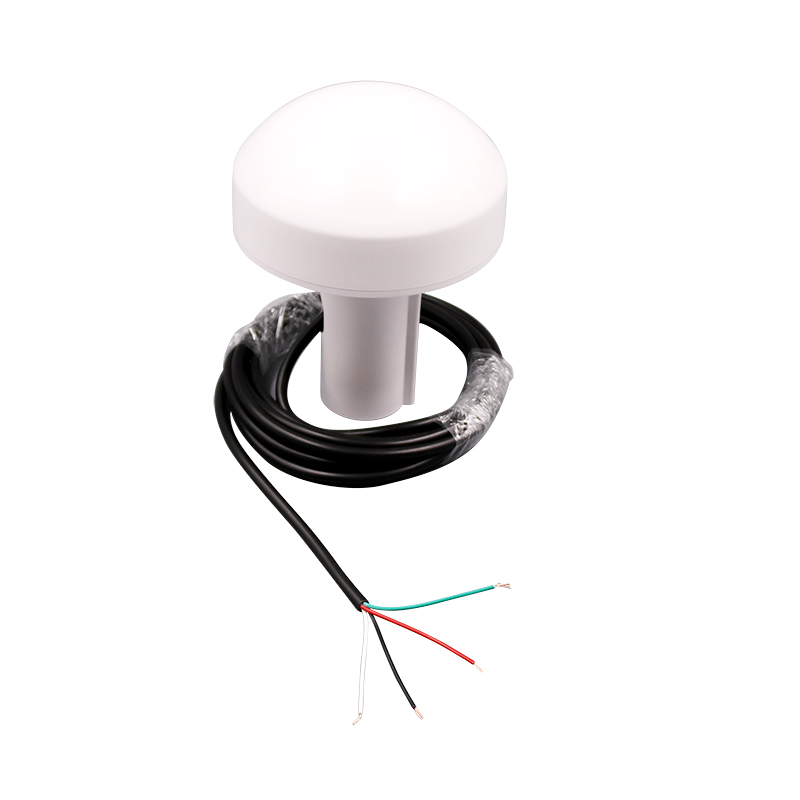

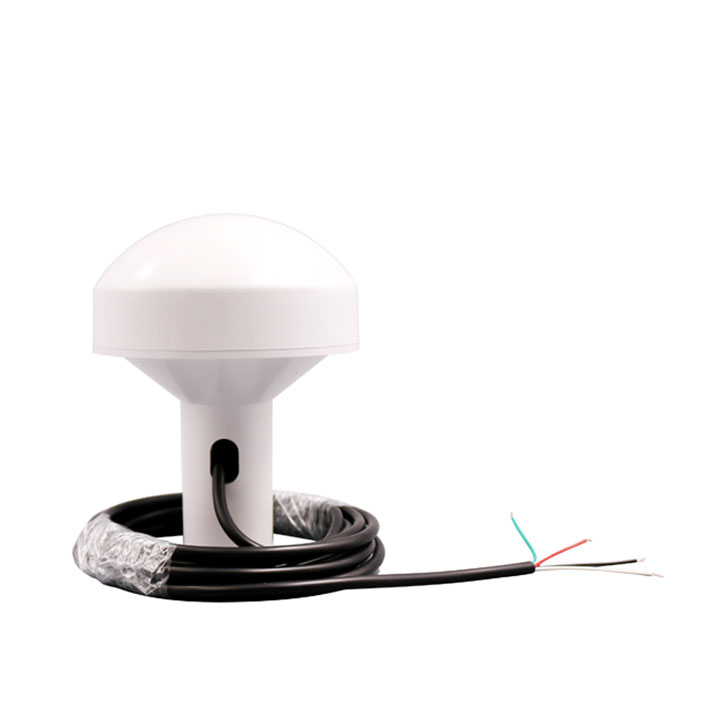

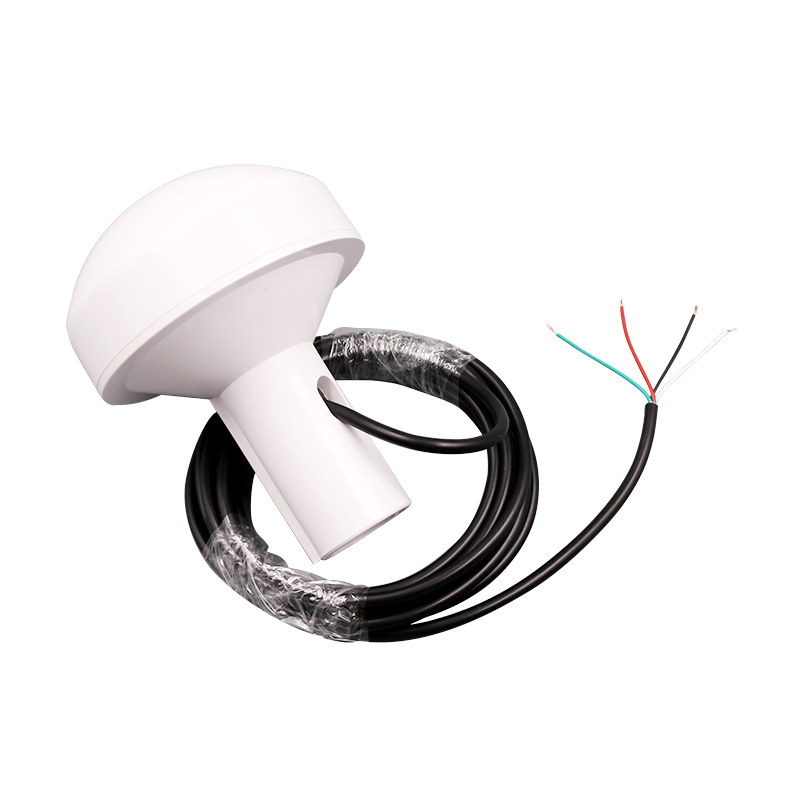

Compact mushroom head antenna design
-
4.5dBi gain optimized for BDS B1
-
Omnidirectional reception pattern
-
Right-hand circular polarization
-
Integrated LNA with 26dB gain
-
Low-profile antenna structure
Industrial Reliability
-
Operating temperature: -30°C to +75°C
-
Storage temperature: -40°C to +85°C
-
Vibration resistance: 3Grms
-
IP64 environmental protection
-
ESD protection: ±4kV contact discharge
Precision Performance
-
Horizontal positioning accuracy: 2.8 meters
-
Velocity accuracy: 0.15 m/s
-
Timing accuracy: 30ns RMS
-
Configurable update rate: 1-5Hz
-
Position dilution of precision (PDOP): <1.6
Interface & Customization
Standard Interfaces
-
UART serial interface (3.3V TTL)
-
I2C communication protocol
-
USB 2.0 connectivity
-
Basic GPIO functions
Customization Options
-
Protocol adaptation services
-
Data output format customization
-
NMEA message selection
-
Baud rate adjustment (4800-230400 bps)
-
Power management configuration
-

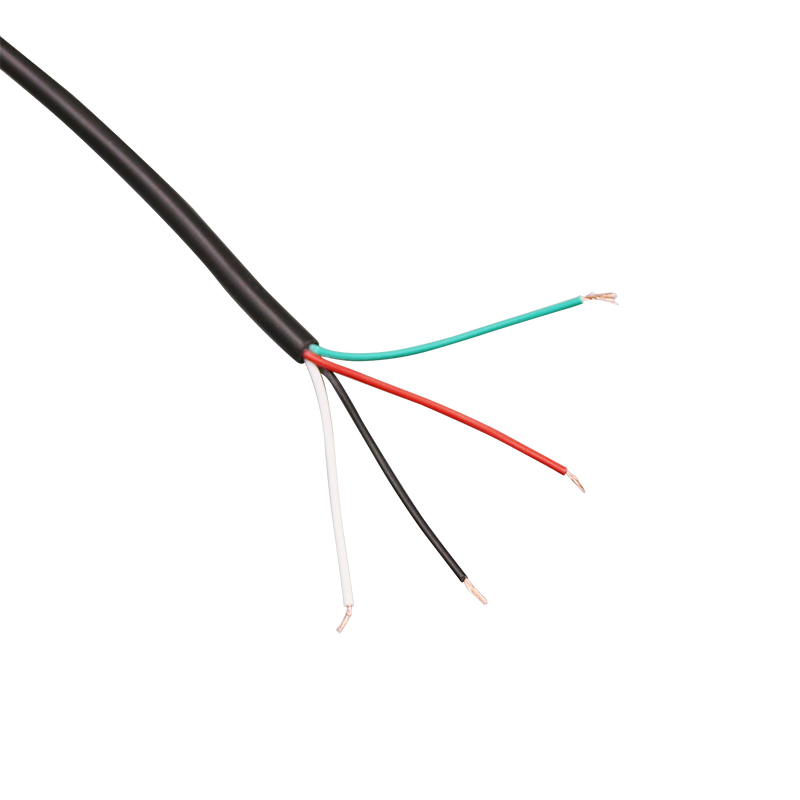

Cable length customization
-
Housing color variations
Application Scenarios
Industrial Computing
-
Compact industrial computers
-
Embedded control systems
-
Space-constrained industrial equipment
-
Portable monitoring devices
-
Data acquisition systems
DIY & Maker Projects
-
Miniature drone navigation
-
Compact tracking devices
-
Educational kits and prototypes
-
IoT positioning applications
-
Robotics and automation projects
Technical Support
Development Resources
-
Hardware integration guide
-
Software development kit
-
Protocol documentation
-
Application circuit examples
-
Troubleshooting manual
Customization Services
-
Communication protocol adaptation
-
Firmware customization
-
Mechanical integration support
-
Performance optimization
-
Application-specific solutions
Quality Assurance
-
CE certification
-
RoHS compliance
-
12-month warranty
-
Technical support
-
Quality management system
Product Advantages
Compact Design
-
Small form factor (42mm diameter × 14mm height)
-
Integrated antenna-receiver solution
-
Easy installation in limited spaces
-
Minimal external components
-
Lightweight construction
Reliable Performance
-
Stable signal reception
-
Consistent positioning accuracy
-
Durable mechanical design
-
Long-term operational stability
-
Quality components
Application Flexibility
-
Easy system integration
-
Multiple interface options
-
Customizable features
-
Wide compatibility
-
Quick deployment
The Moneypro MQD-27N offers an ideal balance of compact size and reliable performance, making it particularly suitable for applications where space optimization is crucial while maintaining the quality and reliability expected from industrial-grade navigation solutions.
