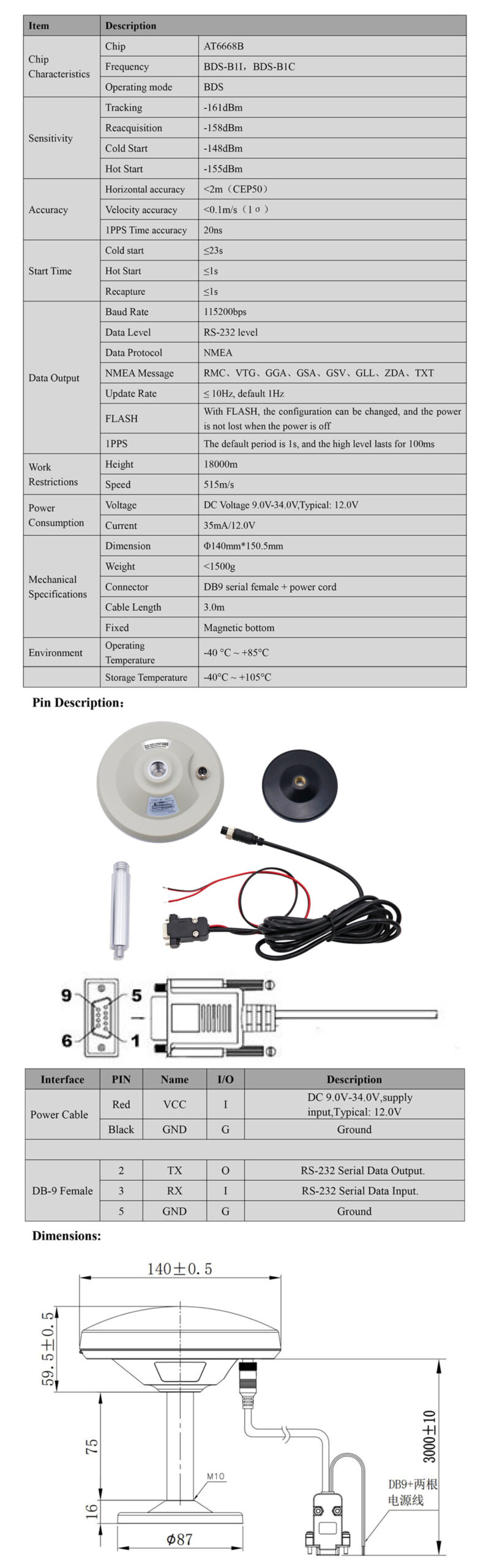

Technical Specifications
Core Performance
-
Single BeiDou B1 signal reception
-
56-channel parallel processing
-
Cold start time: <32 seconds
-
Hot start: <1 second
-
Reacquisition: <1.8 seconds
-
Tracking sensitivity: -157 dBm
-
Capture sensitivity: -144 dBm
Integrated Antenna System
-
Optimized mushroom head antenna design
-
5.2dBi gain for BDS B1 frequency
-
360° omnidirectional coverage
-
Right-hand circular polarization
-
Integrated low-noise amplifier
-
Enhanced multipath rejection
Industrial Reliability
-
Operating temperature: -35°C to +80°C
-
Storage temperature: -45°C to +85°C
-
Vibration resistance: 4Grms
-
IP65 environmental protection
-
ESD protection: ±5kV contact discharge
Precision Performance
-
Horizontal positioning accuracy: 2.2 meters
-
Velocity accuracy: 0.1 m/s
-
Timing accuracy: 25ns RMS
-
Configurable update rate: 1-5Hz
-
Position dilution of precision (PDOP): <1.3
Interface & Customization
Standard Interfaces
-
UART serial interface (3.3V TTL)
-
I2C communication protocol
-
USB 2.0 connectivity
-
Configurable GPIO pins
Customization Options
-
Protocol adaptation services
-
Data output format customization
-
NMEA message configuration
-
Baud rate adjustment (4800-460800 bps)
-
Power management settings
-
Antenna cable length customization
-
Housing design variations
Application Scenarios
Industrial Computing
-
Industrial panel PC integration
-
Embedded system applications
-
Factory automation equipment
-
Portable data collection devices
-
Equipment monitoring systems
-
Industrial control computers
DIY & Maker Projects
-
Drone navigation systems
-
Vehicle tracking devices
-
Outdoor positioning equipment
-
Educational demonstration kits
-
IoT sensor applications
-
Robotics positioning solutions
Technical Support
Development Resources
-
Comprehensive hardware design guidelines
-
Software development kit
-
Protocol specification documents
-
Integration application notes
-
Troubleshooting guide
Customization Services
-
Communication protocol adaptation
-
Firmware customization
-
Mechanical structure adjustment
-
Performance optimization
-
Application-specific solutions
Quality Assurance
-
CE certification
-
RoHS compliance
-
18-month warranty
-
Technical support services
-
Reliable supply guarantee
Product Advantages
Integrated Design
-
Compact form factor (48mm diameter × 16mm height)
-
All-in-one antenna and receiver
-
Simplified installation process
-
Reduced external components
-
Space-saving solution
Reliable Performance
-
Stable signal reception
-
Consistent positioning accuracy
-
Robust mechanical construction
-
Long-term operation stability
-
Industrial-grade components
Flexible Application
-
Easy system integration
-
Multiple interface options
-
Customizable functionality
-
Wide application compatibility
-
Quick deployment capability

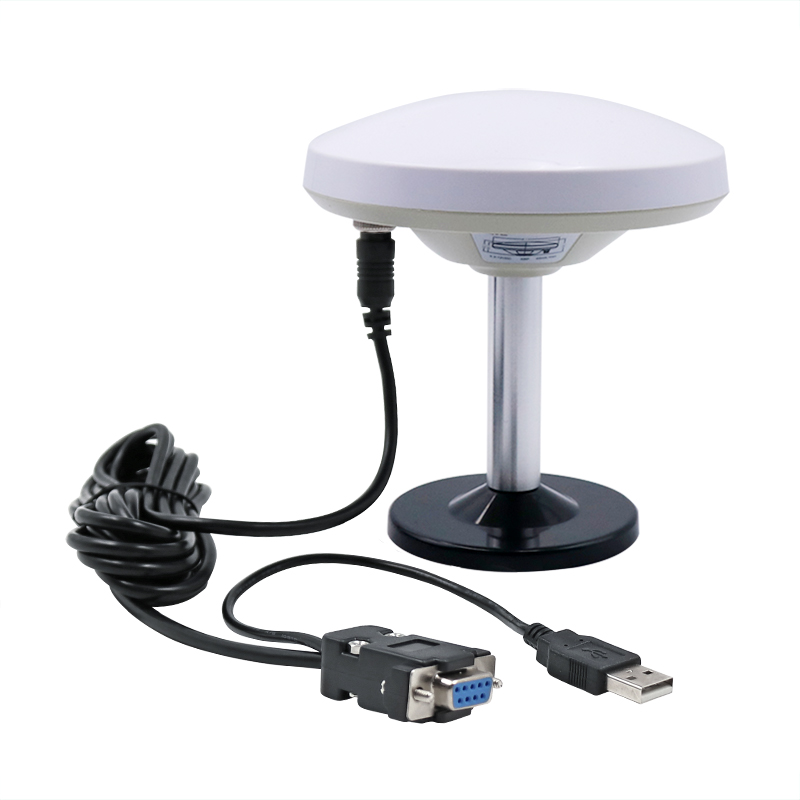

The Moneypro MQD-29DN with its integrated mushroom head antenna design provides an optimal balance of performance, reliability, and convenience for both industrial applications and DIY projects, offering a streamlined solution for BeiDou positioning requirements with enhanced customization possibilities.
