Technical Specifications
Dual-System Performance
-
Simultaneous BDS B1 and GPS L1 signal reception
-
64-channel advanced processing architecture
-
Cold start time: <30 seconds
-
Hot start: <1 second
-
Reacquisition: <1.5 seconds
-
Tracking sensitivity: -158 dBm
-
Capture sensitivity: -145 dBm
Integrated Antenna System
-
Proprietary mushroom head antenna design
-
Dual-frequency optimized for BDS B1/GPS L1
-
5.5dBi high gain performance
-
Omnidirectional 360° coverage
-
Right-hand circular polarization (RHCP)
-
Integrated low-noise amplifier (LNA)
Industrial-Grade Reliability
-
Operating temperature: -35°C to +80°C
-
Storage temperature: -45°C to +85°C
-
Vibration resistance: 4Grms
-
IP65 environmental protection
-
Enhanced ESD protection: ±6kV contact discharge
Precision Performance
-
Horizontal positioning accuracy: 2.0 meters
-
Velocity accuracy: 0.1 m/s
-
Timing accuracy: 20ns RMS
-
Configurable update rate: 1-10Hz
-
Position dilution of precision (PDOP): <1.5
Interface & Customization
Standard Communication Interfaces
-
UART serial interface (3.3V TTL)
-
I2C communication protocol
-
SPI interface support
-
USB 2.0 connectivity
-
GPIO configurable pins
Customization Options
-
Multi-protocol adaptation
-
Custom data output formats
-
Configurable NMEA message output
-
Adjustable baud rates (4800-921600 bps)
-
Advanced power management modes
-
Private protocol development
-
Antenna cable length customization
-
Housing design variations
Application Scenarios
Industrial Computing
-
Industrial panel PC integration
-
Embedded computing systems
-
Factory automation equipment
-
Portable data collection terminals
-
Equipment monitoring and tracking
DIY & Maker Applications
-
Drone navigation and control systems
-
Vehicle tracking and monitoring
-
Outdoor adventure equipment
-
Educational research projects
-
IoT and smart device development
-
Robotics and automation projects
Technical Support & Services
Development Resources
-
Comprehensive hardware design guidelines
-
Complete software development kit
-
Detailed protocol specifications
-
Integration application notes
-
Troubleshooting and maintenance guide
Customization Services
-
Communication protocol adaptation
-
Firmware customization services
-
Mechanical structure modifications
-
Performance optimization solutions
-
Application-specific customization
Quality Assurance
-
CE certification compliance
-
RoHS environmental compliance
-
24-month warranty coverage
-
Professional technical support
-
Reliable supply chain management
Product Advantages
Integrated Design Excellence
-
Compact form factor (50mm diameter × 18mm height)
-
All-in-one receiver and antenna solution
-
Streamlined installation process
-
Minimal external components required
-
Space-optimized design
Superior Performance
-
Dual-system signal redundancy
-
Stable and reliable positioning
-
Enhanced signal reception capability
-
Consistent accuracy performance
-
Robust construction quality
Application Flexibility
-
Easy system integration
-
Multiple interface options
-
Customizable functionality
-
Broad application compatibility
-
Rapid deployment capability

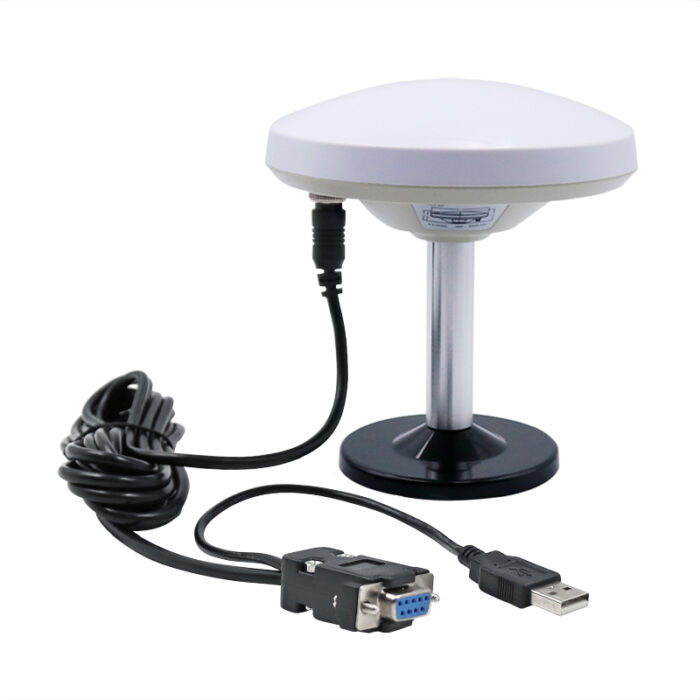

The Moneypro MQD-29DU with its integrated mushroom head antenna and dual-system support provides an optimal combination of performance, reliability, and convenience for both industrial applications and DIY projects, delivering a comprehensive solution for advanced positioning requirements across various scenarios.
