Technical Specifications
Core Performance
-
Single BeiDou B1 signal reception
-
48-channel parallel processing
-
Cold start time: <35 seconds
-
Hot start: <1 second
-
Reacquisition: <2 seconds
-
Tracking sensitivity: -156 dBm
-
Positioning accuracy: 2.5 meters
Integrated Antenna System
-
Built-in mushroom head antenna design
-
5dBi gain optimized for BDS B1 frequency
-
360° omnidirectional reception
-
Right-hand circular polarization (RHCP)
-
Low-noise amplifier integrated
Industrial Reliability
-
Operating temperature: -30°C to +80°C
-
Storage temperature: -40°C to +85°C
-
Vibration resistance: 3Grms
-
IP64 environmental protection
-
ESD protection: ±4kV contact discharge
Interface & Customization
Standard Interfaces
-
UART (3.3V TTL level)
-
I2C communication interface
-
USB 2.0 connectivity
-
GPIO expansion pins
Customization Options
-
Protocol adaptation services
-
Data output format customization
-
NMEA message configuration
-
Baud rate adjustment (4800-460800 bps)
-
Power mode settings
-
Antenna cable length customization
-
Housing color variations
Application Scenarios
Industrial Computing
-
Industrial panel PC integration
-
Embedded system applications
-
Factory automation equipment
-
Portable data collection devices
-
Equipment monitoring systems
DIY & Maker Projects
-
Drone navigation systems
-
Vehicle tracking devices
-
Outdoor positioning equipment
-
Educational demonstration kits
-
IoT sensor nodes
-
Robotics applications
Technical Support
Development Resources
-
Hardware design guidelines
-
Software development kit
-
Protocol specification documents
-
Integration application notes
-
Troubleshooting guide
Customization Services
-
Communication protocol adaptation
-
Firmware customization
-
Mechanical structure adjustment
-
Performance optimization
-
Application-specific solutions
Quality Assurance
-
CE certification
-
RoHS compliance
-
18-month warranty
-
Technical support services
-
Reliable supply guarantee
Key Advantages
Integrated Design
-
Compact form factor (45mm diameter × 15mm height)
-
All-in-one antenna and receiver
-
Simplified installation process
-
Reduced external components
-
Space-saving solution
Reliable Performance
-
Stable signal reception
-
Consistent positioning accuracy
-
Robust mechanical construction
-
Long-term operation stability
-
Industrial-grade components
Flexible Application
-
Easy system integration
-
Multiple interface options
-
Customizable functionality
-
Wide application compatibility
-
Quick deployment capability

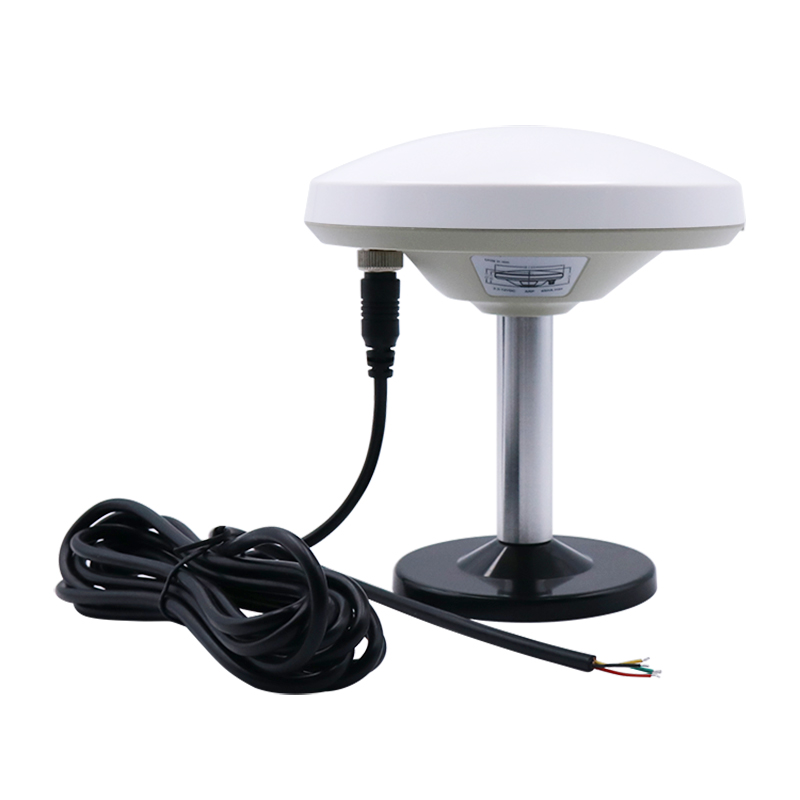

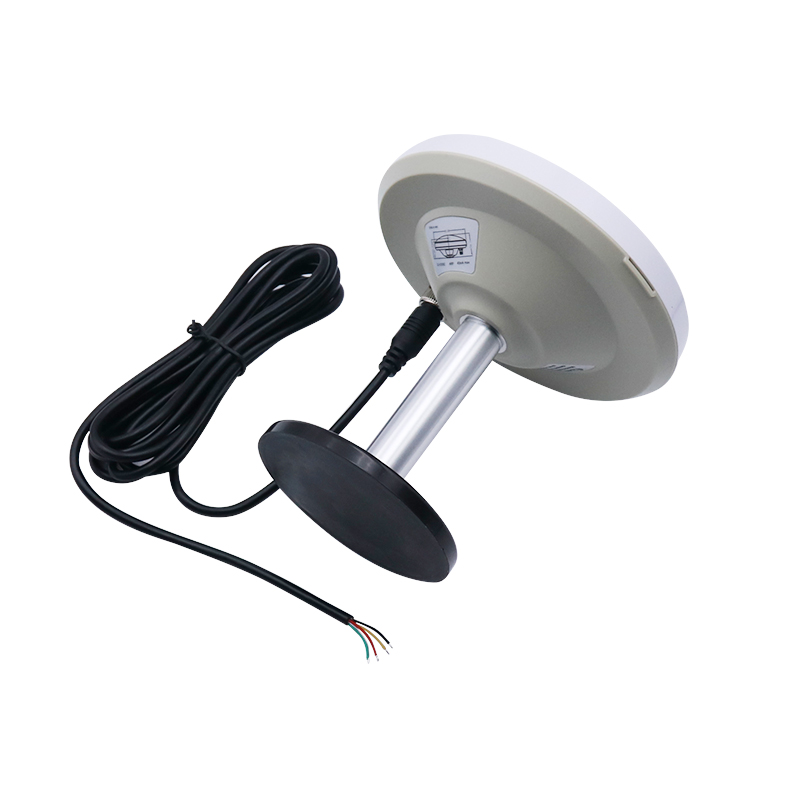

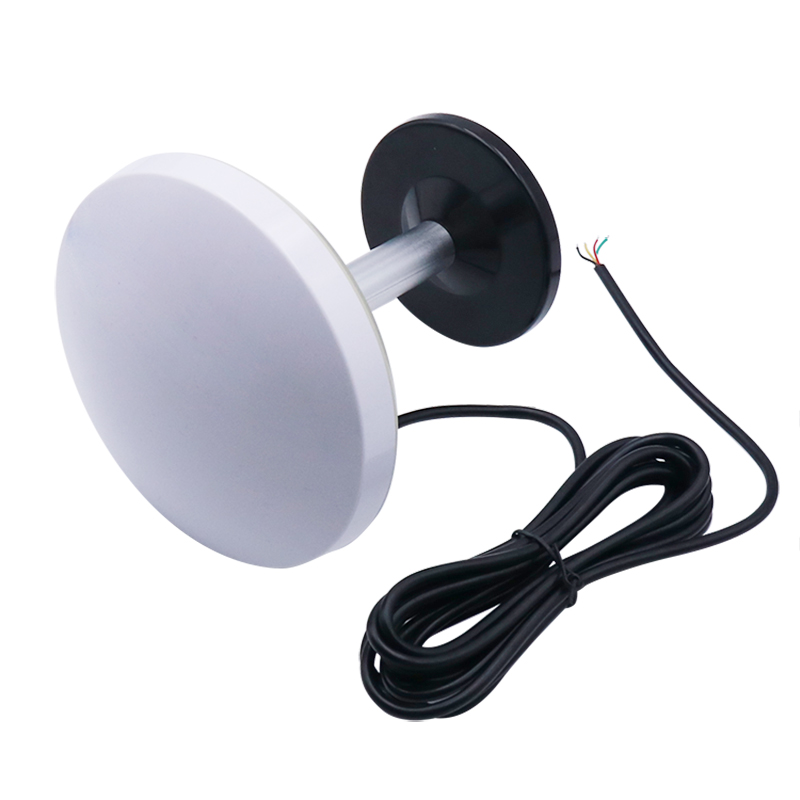

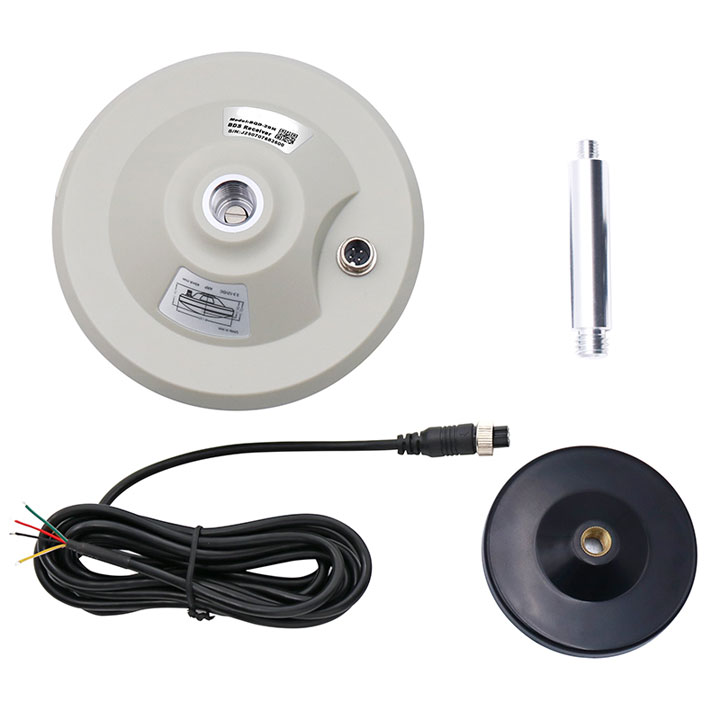

The Moneypro MQD-29N with its integrated mushroom head antenna design provides a perfect balance of performance, reliability, and convenience for both industrial applications and DIY projects, offering a streamlined solution for BeiDou positioning requirements.
