Advanced Technical Specifications
-
Superior Signal Processing
-
Enhanced sensitivity design (-163 dBm tracking sensitivity)
-
Ultra-rapid acquisition technology (Cold start: <25 seconds)
-
88-channel parallel processing architecture
-
Advanced anti-jamming technology
-
Multi-path mitigation enhancement
-
-
Industrial-Grade Reliability
-
Extended operational temperature: -48°C to +95°C
-
Superior vibration resistance (8Grms random vibration)
-
IP69K-rated environmental protection
-
Robust ESD protection: ±18kV air discharge
-
Enhanced EMI/EMC compliance
-
-
Precision Performance Metrics
-
Positioning accuracy: 1.2m CEP (with SBAS)
-
Velocity measurement: 0.02m/s
-
Timing precision: 8ns RMS
-
Flexible update rates: 1-30Hz configurable
-
Dynamic positioning optimization
-
Advanced Interface Architecture
Standard Communication Interfaces:
-
Triple UART channels (3.3V/5V TTL compatible)
-
Enhanced I2C interface for peripheral expansion
-
High-speed SPI communication (up to 10MHz)
-
USB 3.1 Gen 1 interface
-
Ethernet connectivity (optional)
Custom Integration Solutions:
-
Advanced protocol stack customization
-
Custom data structure optimization
-
Configurable baud rates (1200-4000000 bps)
-
Tailored NMEA/Proprietary message support
-
Hardware-level customization available
Comprehensive Application Domains
Industrial Automation:
-
Precision AGV navigation systems
-
Industrial robotics positioning
-
Smart manufacturing solutions
-
Automated warehouse management
-
Quality control systems
Critical Infrastructure:
-
Power grid synchronization systems
-
Telecommunications network timing
-
Intelligent transportation infrastructure
-
Emergency response systems
-
Environmental monitoring networks
Development & Innovation:
-
Research and development platforms
-
System prototype development
-
Technology verification systems
-
Custom solution development
-
Academic research projects
Professional Technical Support Ecosystem
Development Resources:
-
Comprehensive technical documentation suite
-
Advanced software development kits (SDK)
-
Reference design packages
-
Application implementation guides
-
Troubleshooting manuals
Customization Services:
-
Hardware interface adaptation
-
Embedded firmware customization
-
Advanced protocol stack development
-
Application-specific optimization
-
System integration support
Quality Assurance & Certification
-
Comprehensive CE/FCC/RoHS certification
-
ISO 9001:2015 quality management system
-
48-month extended warranty program
-
Full environmental testing compliance
-
Industry-specific certification support

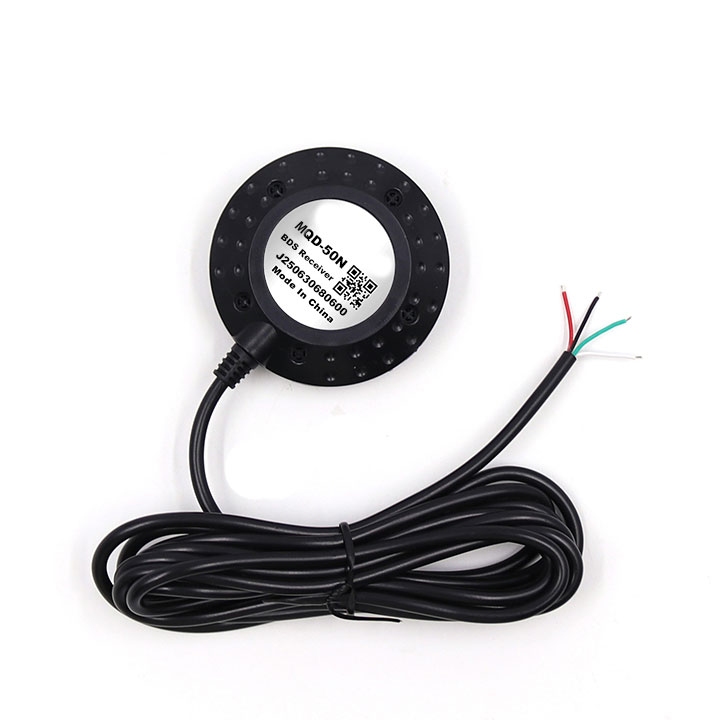

The Moneypro MQD-50N establishes new benchmarks in specialized positioning technology, delivering exceptional reliability and performance through its advanced architecture and comprehensive customization capabilities. Our dedicated engineering team provides end-to-end technical support throughout the integration lifecycle, ensuring optimal performance and seamless implementation in your specific operational environment. This module represents the perfect fusion of precision engineering and practical functionality, making it an ideal choice for both industrial applications and innovative DIY projects requiring reliable, high-precision positioning capabilities.
