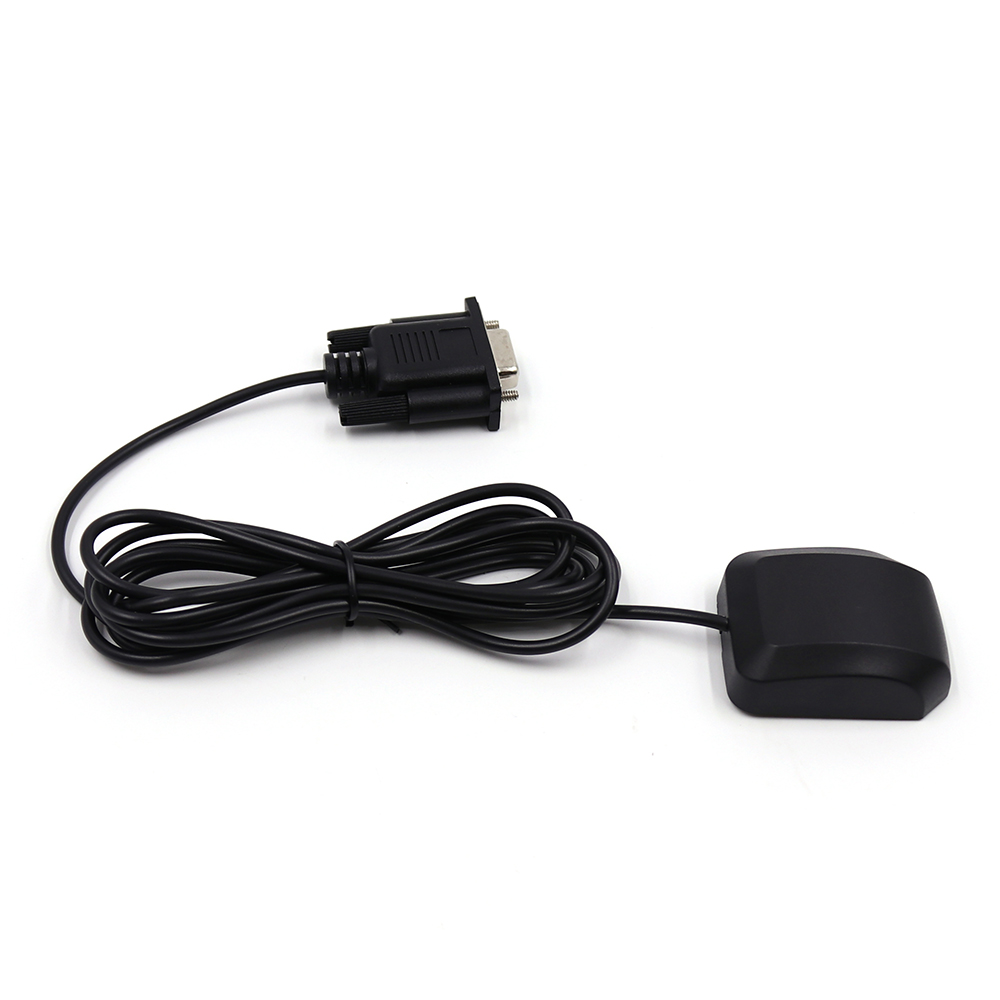

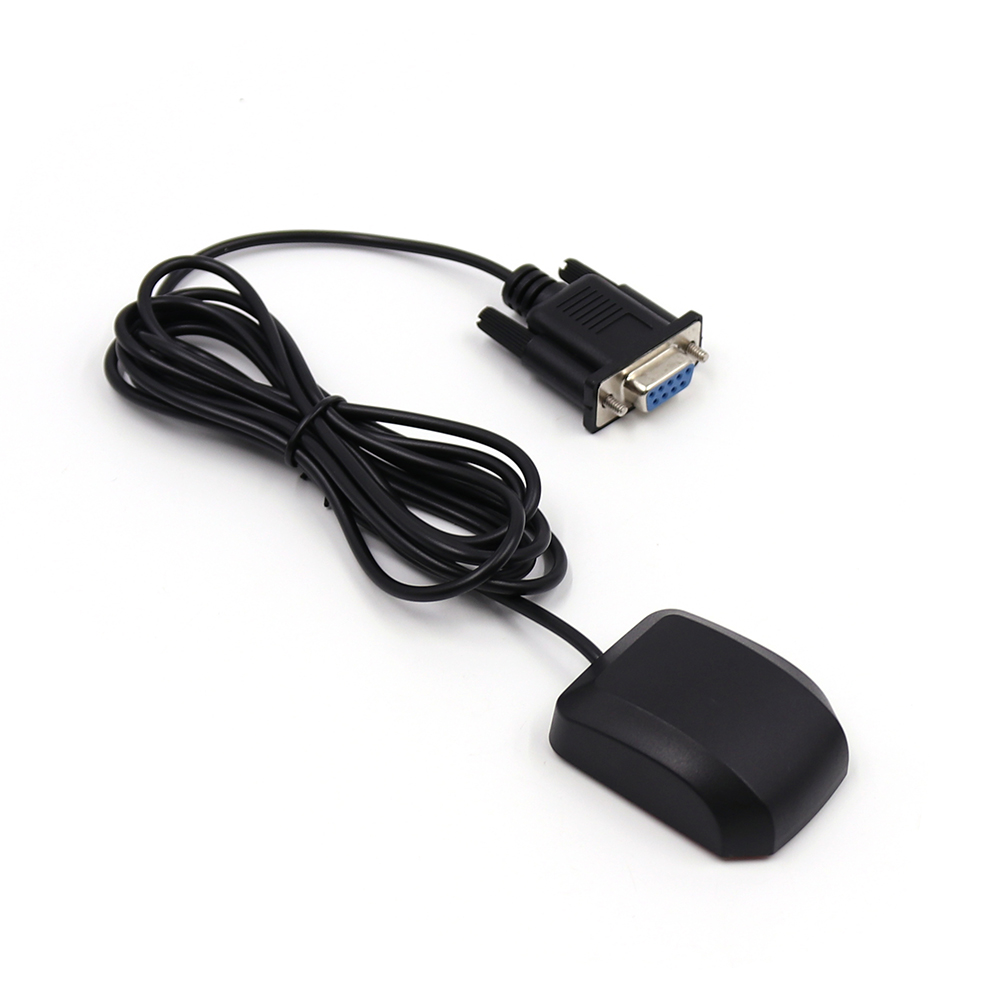

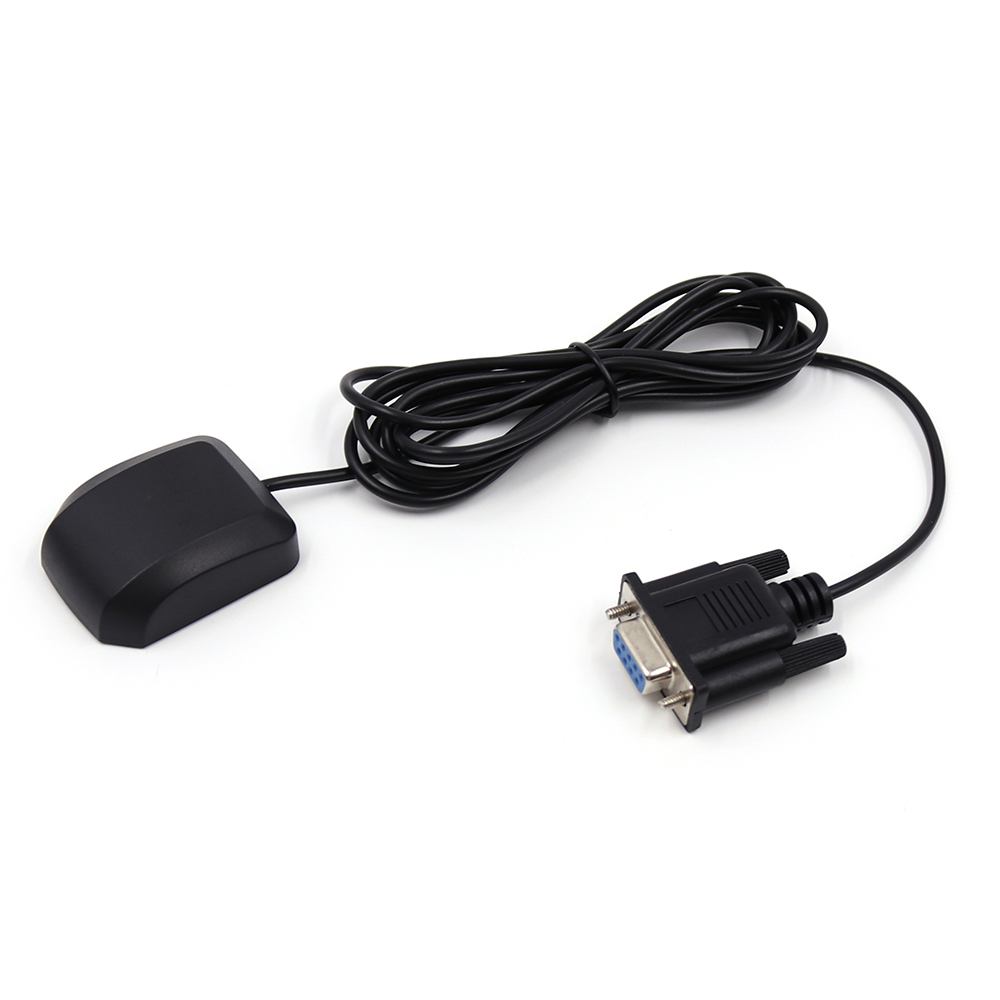

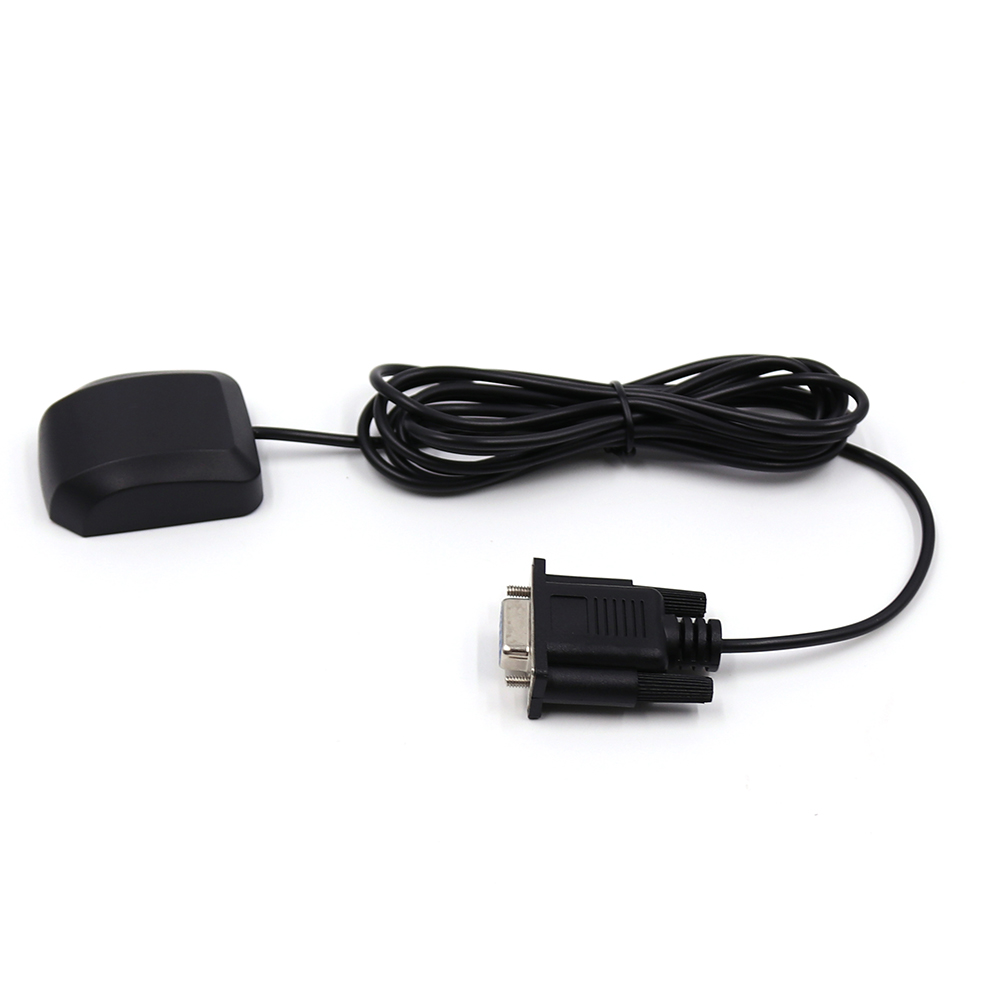

GNSS Receiver MQD-51D

GNSS Receiver MQD-51D Details

Technical Specifications & Features

• Advanced Signal Processing

  • High-sensitivity receiver design (-158 dBm tracking sensitivity)

  • Fast Time-to-First-Fix technology (Cold start: <35s)

  • Multi-frequency signal acquisition and processing

  • Advanced interference mitigation algorithms

• Industrial Performance Standards

  • Extended operational temperature range: -40°C to +85°C

  • Enhanced shock and vibration resistance

  • IP67-rated environmental protection (with optional housing)

  • ESD protection: ±8kV contact discharge

• Precision Engineering

  • Positioning accuracy: 2.5m CEP (SBAS enabled)

  • Velocity accuracy: 0.1m/s

  • Timing accuracy: 20ns RMS

  • Maximum update rate: 10Hz

Interface & Integration Capabilities

Standard Communication Protocols:

• UART (3.3V/5V TTL compatible)

• I2C interface for sensor integration

• SPI protocol for high-speed data transfer

• USB 2.0 interface (optional configuration)

Customization Options:

• Protocol adaptation and customization

• Data output format optimization

• Baud rate configuration (9600-921600 bps)

• NMEA message selection and customization

• Private protocol development support

Application Scenarios

Industrial Automation:

• Automated Guided Vehicle (AGV) navigation systems

• Robotic positioning and path planning

• Smart manufacturing positioning solutions

• Warehouse inventory management systems

Critical Infrastructure:

• Power grid synchronization and monitoring

• Telecommunications network timing

• Transportation infrastructure management

• Public safety and emergency response systems

Research & Development:

• Academic research projects

• Prototype development

• System integration studies

• Algorithm verification and testing

Technical Support & Services

Development Support:

• Comprehensive technical documentation

• Software development kits (SDK)

• Reference design schematics

• Application notes and design guidelines

Customization Services:

• Hardware interface adaptation

• Firmware customization

• Protocol stack development

• Application-specific optimization

Quality Assurance & Compliance

• CE/RoHS certification

• ISO 9001:2015 quality management

• 24-month product warranty

• Environmental compliance testing

The Moneypro MQD-51D establishes new standards for reliability and performance in specialized positioning applications, offering unparalleled flexibility through its comprehensive customization options and robust industrial design. Our technical team provides expert support throughout the integration process, ensuring optimal performance in your specific application environment.
