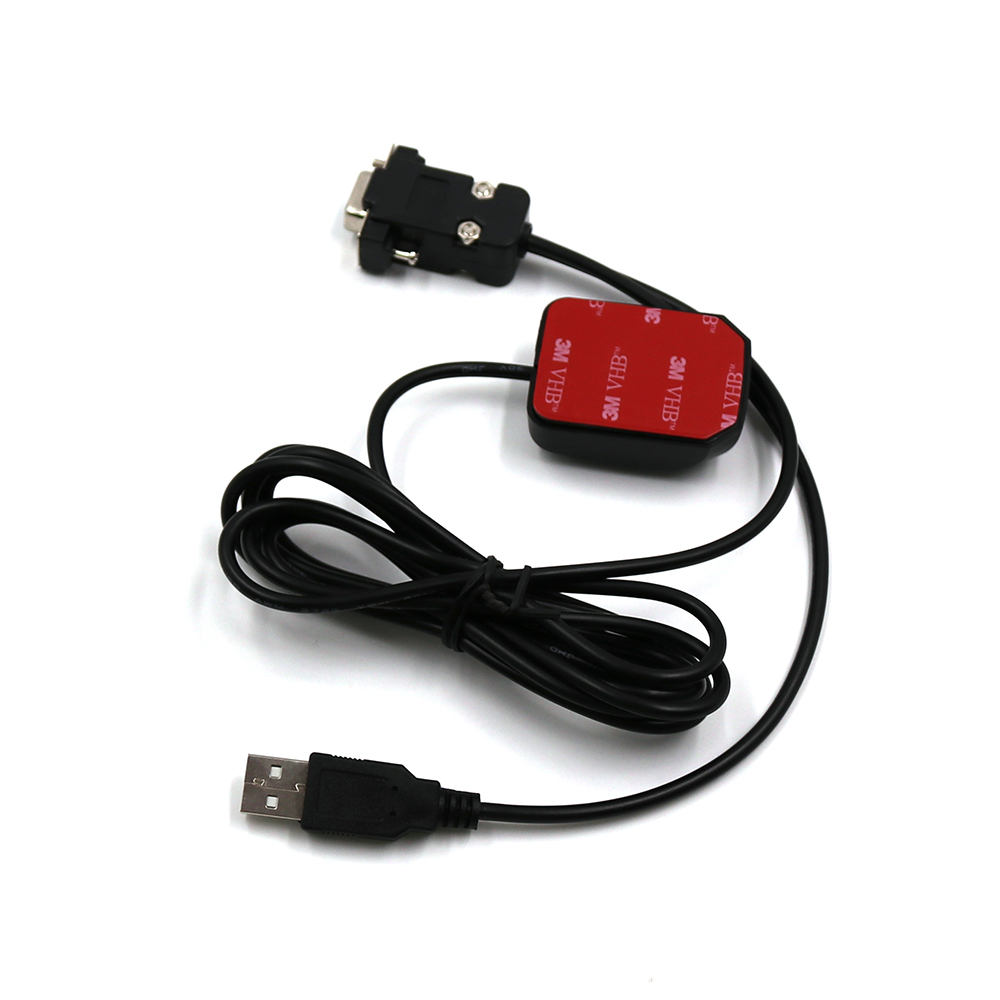

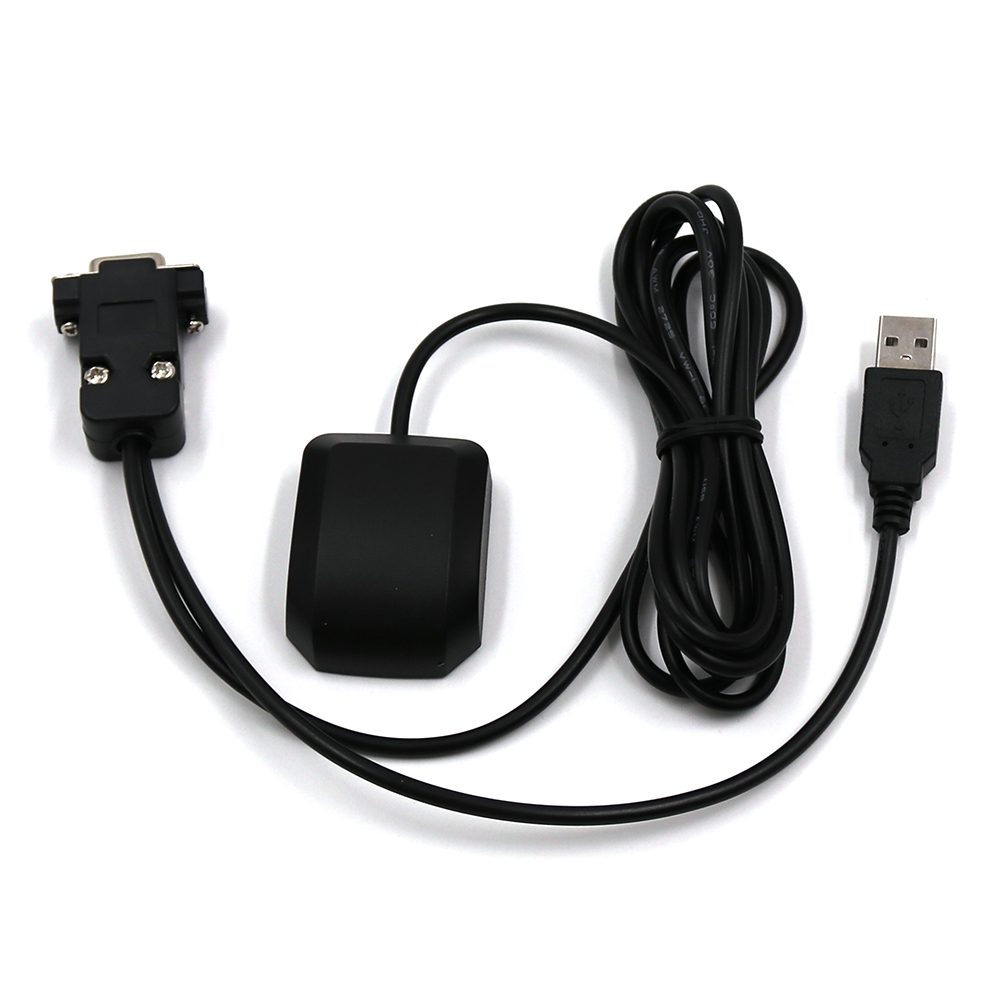

GNSS Receiver MQD-51DU

GNSS Receiver MQD-51DU Details

Key Features & Advantages

1. BeiDou-Centric, Autonomous & Secure:

   • Solely tracks the BeiDou constellation, ensuring superior signal coverage and stability across China and the Asia-Pacific region. This aligns with requirements for national information security and technological autonomy.

2. Industrial-Grade Ruggedness & Reliability:

   • Features an extended operating temperature range of -40°C to +85°C, guaranteeing stable performance in harsh industrial environments.

   • Built with enhanced anti-interference capabilities, maintaining a stable satellite lock even in electromagnetically noisy settings like factory floors or control cabinets.

3. High-Accuracy Positioning & Timing:

   • Delivers high-precision positioning, capable of reaching centimeter-to-millimeter accuracy when used with differential correction services (e.g., RTK), ideal for applications like precision agriculture and automated guidance.

   • Integrates a high-stability Temperature-Compensated Crystal Oscillator (TCXO) to provide a precise, low-jitter Pulse Per Second (PPS) signal, making it perfect for critical timing applications such as communication base stations and power grid synchronization.

4. Flexible Interface & Deep Customization:

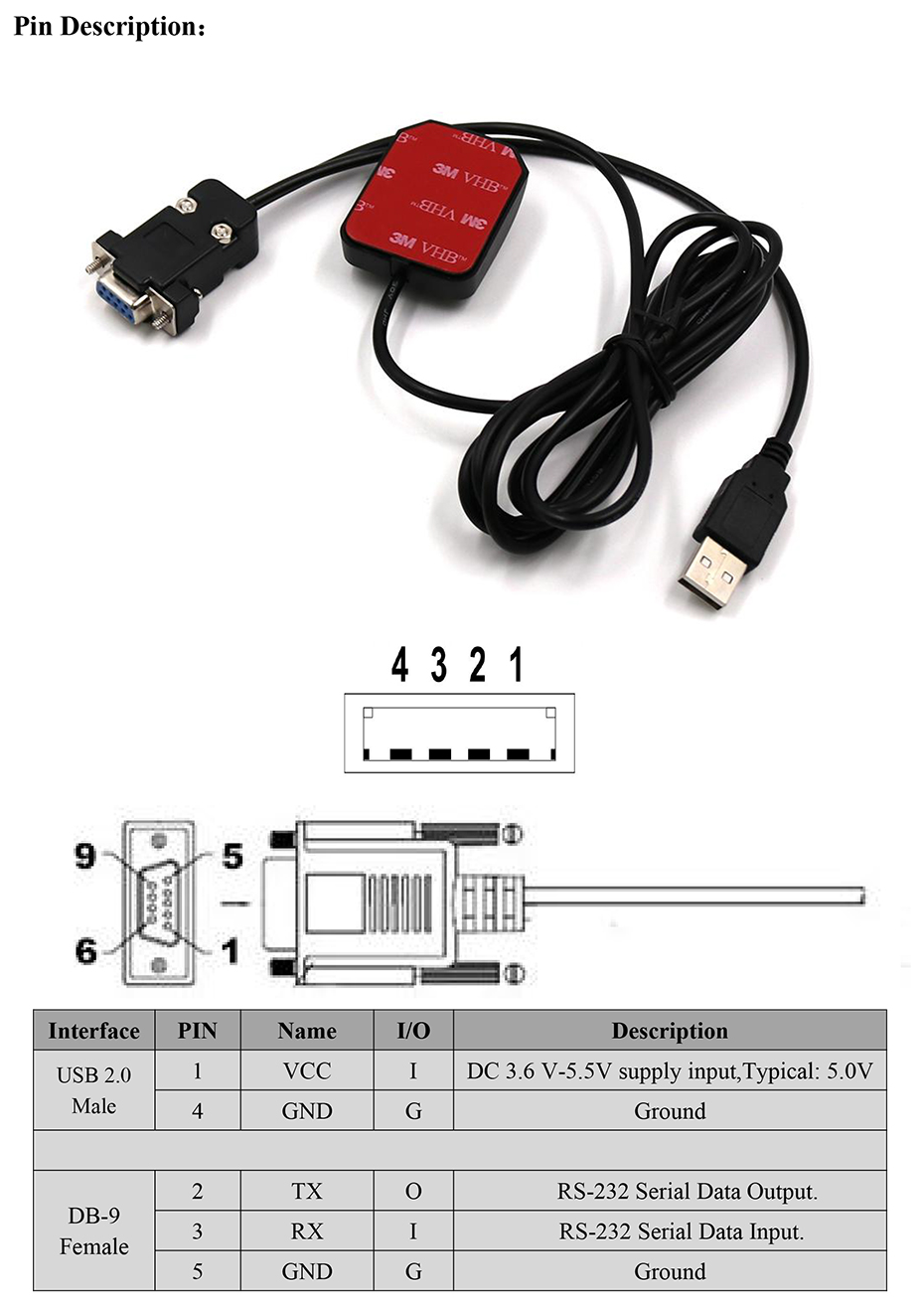

   • Offers standardized communication interfaces (e.g., UART) and supports customization of other interfaces for seamless integration with Industrial PCs (IPCs), Programmable Logic Controllers (PLCs), and embedded systems.

   • Our technical team provides comprehensive hardware and software support for protocol customization and feature tailoring to meet your project’s unique requirements.

5. Simplified Integration:

   • Designed for ease of use with a standard connector and an optional high-performance, compact active antenna, significantly reducing installation complexity and development time.

Typical Applications

• Industrial Automation & Robotics: Navigation for AGVs/AMRs, smart warehouse logistics, and robotic positioning.

• Critical Infrastructure: Timing synchronization for power grids, telecommunications base stations, and financial transaction timestamping.

• Surveying & Smart City: Precision mapping, GIS data collection, and intelligent transportation systems (ITS).

• High-End DIY & R&D: UAV swarm control, autonomous vehicle prototyping, and high-precision clock projects.

Why Choose the Moneypro MQD-51DU?

Selecting the MQD-51DU means choosing a partner committed to performance, professionalism, and support. We provide not just a module, but a complete positioning solution backed by dedicated customization services, empowering your projects to navigate the future with confidence and precision.
