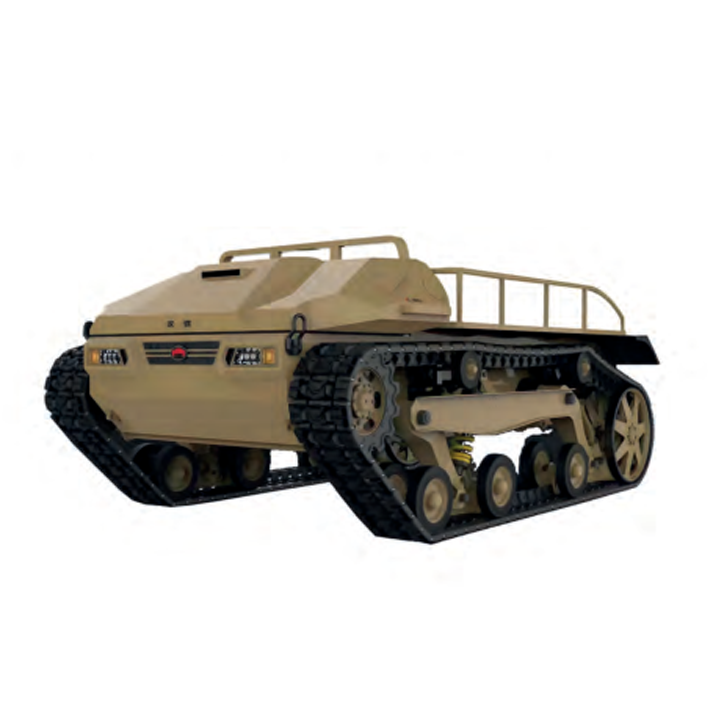

HanLuo HL-200 General Mobile Platform

This product is a remote-controlled crawler-type mobile platform. This platform can be operated individually or in a cluster to form a combat team for completing various mission tasks. It is mainly applied in fields such as transportation, emergency rescue, material supply, emergency response, and medical rescue.

Categories: ,
Description

HanLuo HL-200 General Mobile Platform Technical Indicators

(1) Dimensions (length × width × height): < 2700mm × 1700mm × 1300mm;
(2) Self-weight: < 900kg;
(3) Load capacity: 200kg;
(4) Maximum driving speed: 30km/h;
(5) Maximum downhill slope: 35″;
(6) Maximum side slope: 25°;
(7) Maximum vertical obstacle height: 600mm;
(8) Maximum crossing ditch width: 800mm;
(9) Maximum water crossing depth: 500mm;
(10) Driving mode: Electric, range: 80km;
(11) Remote control range: 5km in clear view environment.
