Home » Unmanned System Products » HD Video Low Latency Drone Transmission Radio with Fhss for Public Safety Missions
OEM Drone Transmission Radio Manufacturer HD Digital Video Data Link for Uav
Back to products
Drone Data Link Transmission Radio for Industrial Uav Surveying Mapping Inspection Surveillance

HD Video Low Latency Drone Transmission Radio with Fhss for Public Safety Missions

Tailored for high-stakes public safety missions, this HD Video Low Latency Drone Transmission Radio leverages Frequency Hopping Spread Spectrum (FHSS) technology to deliver unparalleled reliability and performance. Designed to support critical operations like search-and-rescue, emergency response, crowd monitoring, and law enforcement surveillance, it transmits crystal-clear HD video with minimal latency—ensuring first responders receive real-time, actionable intelligence to make swift, informed decisions. The FHSS-enabled anti-interference capability shields signals from electromagnetic disruptions, guaranteeing stable connectivity even in dense urban areas, remote terrains, or high-electromagnetic environments. Built for rugged public safety demands, this transmission radio merges low-latency precision, HD clarity, and resilient signal integrity, becoming an indispensable tool for teams tasked with protecting lives and maintaining public order.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M20Pro-J30J
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428-1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 94.5 × 77 × 32mm (Air)
Interfaces 1 Ttl + 1 RS232 + 1 S.Bus
Security Protection AES128
Specification 330Grams Weight
Origin China
Production Capacity 5000PCS/Month
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 25dBm ± 2
Data Rate 24Mbps @ 10MHZ (Peak)
Weight ≤ 330g (Air)
Transmission Distance 20km Air-to-Ground
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 9.45cm * 7.70cm * 3.20cm
Package Gross Weight 0.330kg

Product Description

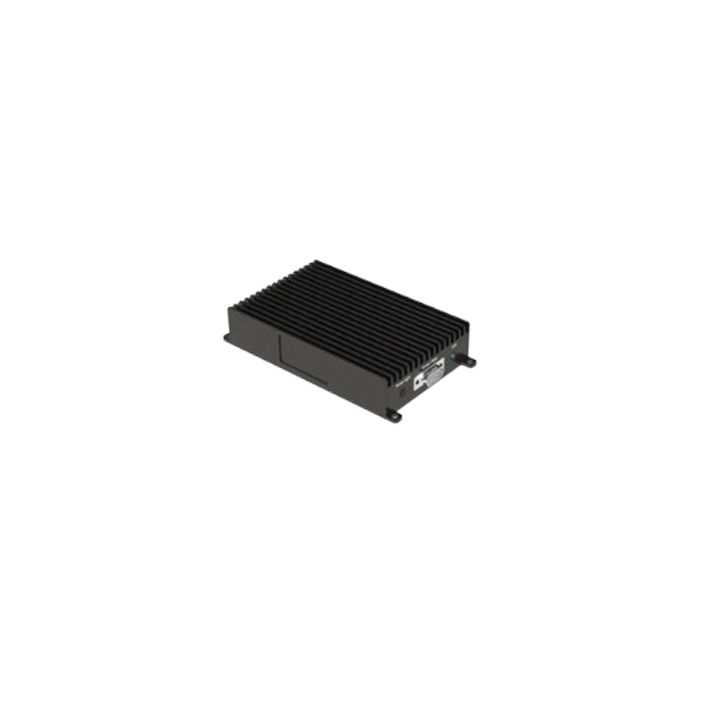

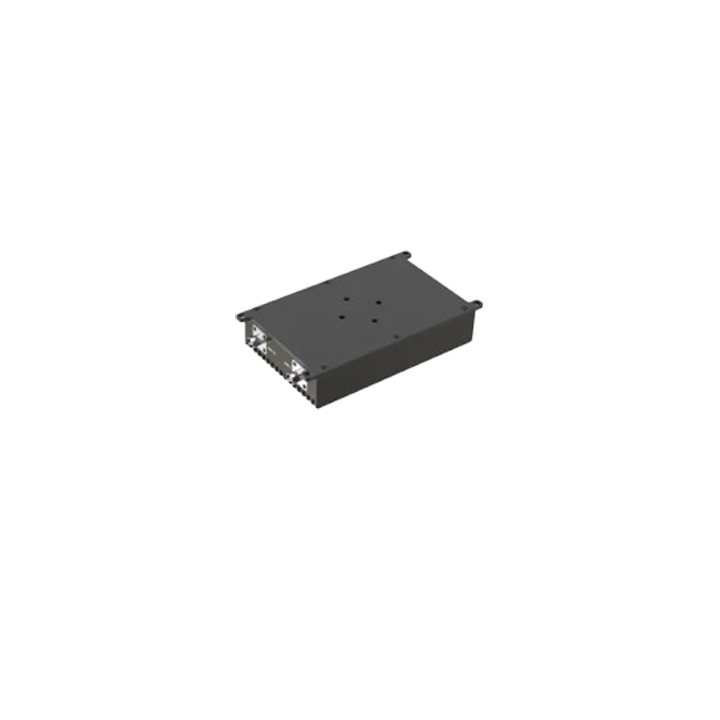

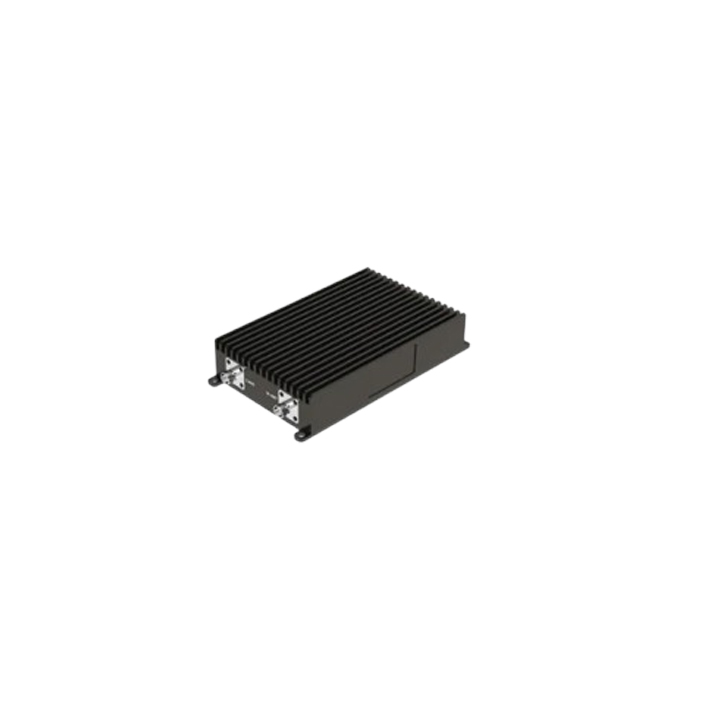

M20Pro Drone Video Transmission Radio

330 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance

M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic SwarmsHD Video Low Latency Drone Transmission Radio with Fhss for Public Safety Missions HD Video Low Latency Drone Transmission Radio with Fhss for Public Safety Missions HD Video Low Latency Drone Transmission Radio with Fhss for Public Safety MissionsM20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic SwarmsM20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic SwarmsM20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms HD Video Low Latency Drone Transmission Radio with Fhss for Public Safety Missions

Specification

Wireless TDD-OFDM / MIMO / 1T2R
Technology QPSK / 16QAM / 64QAM
Modulation 24Mbps @ 10MHz (Peak)
Data Rate 24Mbps @ 10MHz (Peak)
Frequency Range 1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth 5MHz / 10MHz / 20MHz
Tx Power 25dBm ± 2
Rx Sensitivity -99dBm @ 5MHz
System
Serial Port 1 TTL + 1 RS232 + 1 S.BUS
Video Port 2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security AES128 Encryption
Power DC12V-24V Power Supply
≤ 6W @ DC12V Power Consumption (Air)
Interfaces
RF Antenna SMA × 2
Serial Port Interface JST × 2
S.BUS Interface JST × 1
Video Port Interface JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input XT30
Physical
Dimension ≤ 94.5 × 77 × 32mm (Air)
Weight ≤ 330g (Air)
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2 Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)

Packing & Delivery

M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms
