Overview
Basic Info.
| Model NO. | VTA-AutoPro |
| Information Content | Text, Picture, Video, Audio |
| Gain | 15dBi |
| Pan Range | 360° |
| Pan Speed | 0.1°-30°/S |
| Baud Rate | 2400 / 4800 / 9600 / 19200BPS |
| Specification | 8W (4W * 2) |
| Origin | China |
| Production Capacity | 5000PCS/Month |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Frequency Range | 1300-1500MHz |
| Swr | ≤ 2.0 |
| Tilt Range | 0°-+90° (90°+90° Cus.) |
| Tilt Speed | 0.1°-8°/S |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| HS Code | 8517799000 |
Packaging & Delivery
| Package Size | 38.00cm * 38.00cm * 5.70cm |
| Package Gross Weight | 1.580kg |
Product Description

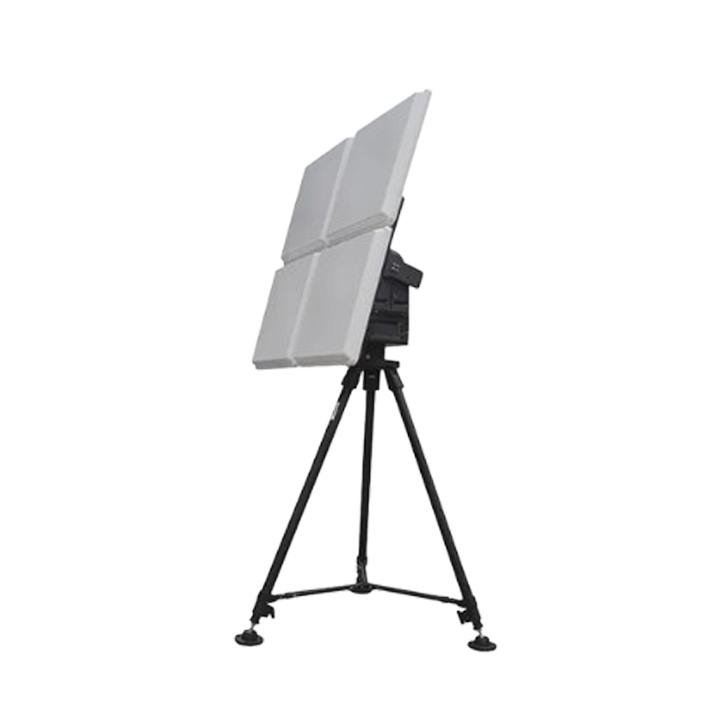

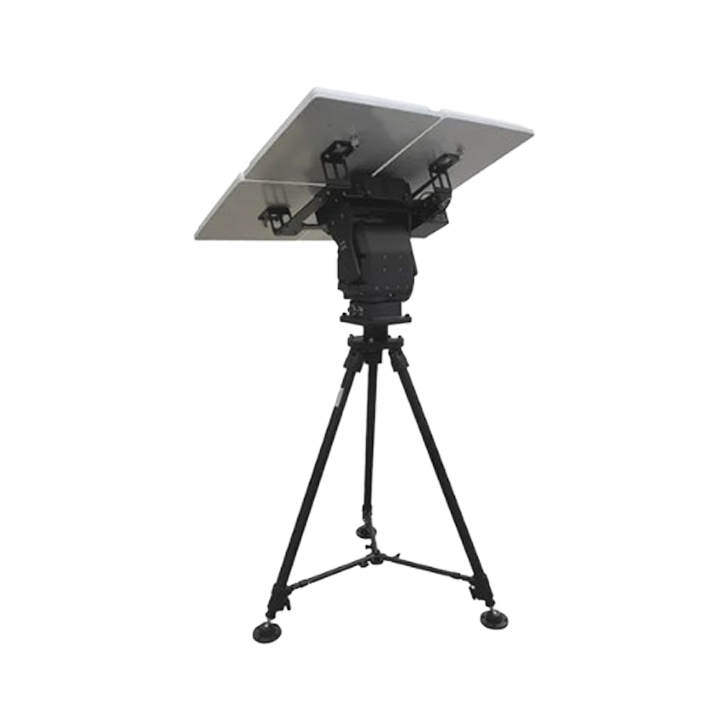

VTA-AutoPro Tracking Antenna System
Quick Deployment Solution
Directional Antenna
High Speed Automatic PTZ
360° Horizontal Continuous Rotation
Increase Transmission Distance
Improve Transmission Data Rate
Directional Antenna
High Speed Automatic PTZ
360° Horizontal Continuous Rotation
Increase Transmission Distance
Improve Transmission Data Rate
Mesh Radio – Typical System Solution
Specification
|

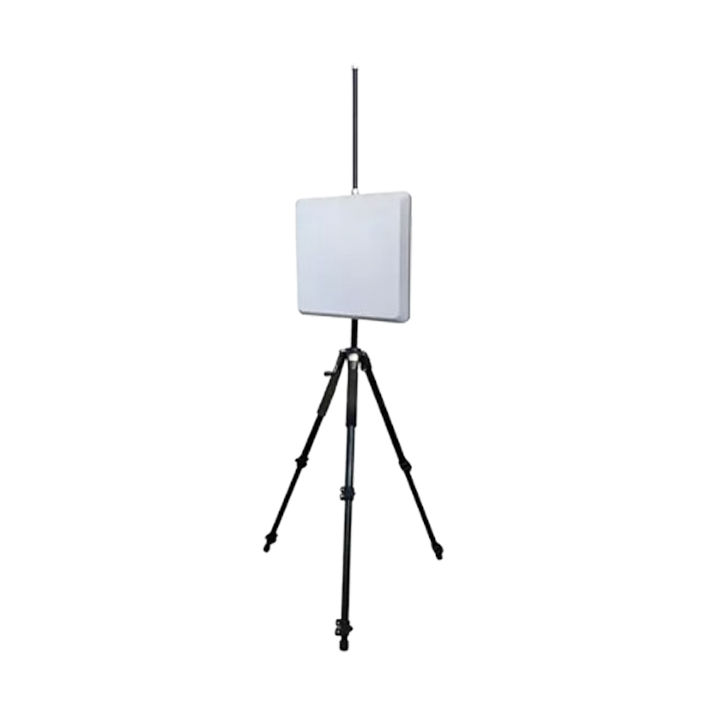

Directional Antenna
|
|
|
Frequency Range
|
1300-1500MHz
|
|
Gain
|
15dBi
|
|
SWR
|
≤ 2.0
|
|
Polarization
|
Vertical
|
|
Directional
|
Vertical 31°
|
|
Impedance
|
50Ohm
|
|
Connector
|
SMA
|
|
Dimension
|
380 × 380 × 57mm
|
|
Material
|
ABS
|
|
Weight
|
1580g
|
|

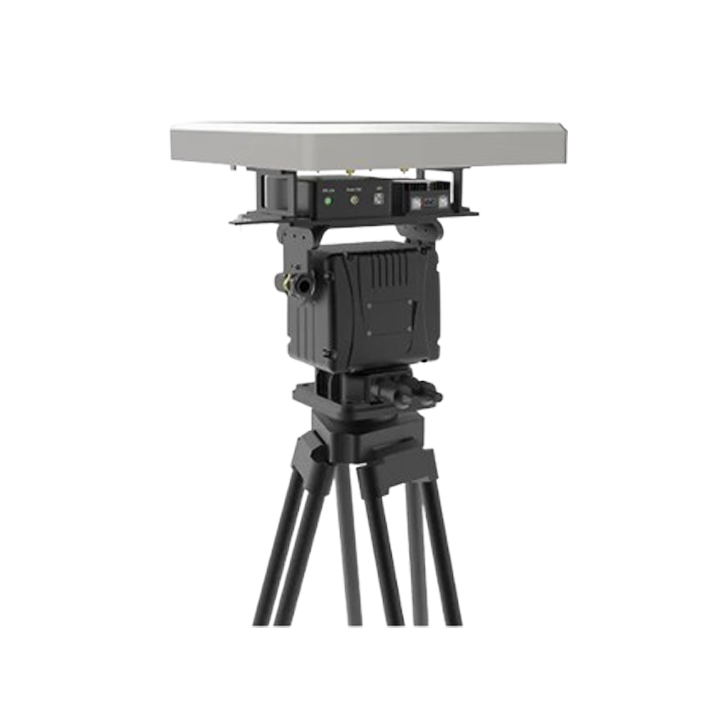

Professional Automatic PTZ
|
|
|
Pan Range
|
360°
|
|
Tilt Range
|
0°-+90° (-90°-+90° Cus.)
|
|
Pan Speed
|
0.1°-30° / s
|
|
Tilt Speed
|
0.1°-8° / s
|
|
Protocol
|
Pelco-D
|
|
Baud Rate
|
2400 / 4800 / 9600 / 19200bps
|
|
Communication
|
RS485
|
|
Load Bearing
|
10000g
|
|
Power Supply
|
DC28V (DC24V-36V)
|
|
Weight
|
6500g
|
|
Tracking Position
|
|
|
Mode
|
GPS / Beidou
|
|
Accuracy
|
≤ 1m
|
|
Antenna
|
33±2dB
|
|
Physical
|
|
|
Operating Temperature
|
-20°C-+75°C
|
|
Protection Level
|
IP65 (Customized)
|
Packing & Delivery
Application
IP Mesh Radio Application Case
