Home » Unmanned System Products » High Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video Transmitting
China Moneypro 5W Tactical Mesh Radios Handheld Video and Ptt MIMO Manet Radio
Back to products
China Moneypro 64node MIMO Mesh Module for Unmanned System Uav Ugv Sending Video Data

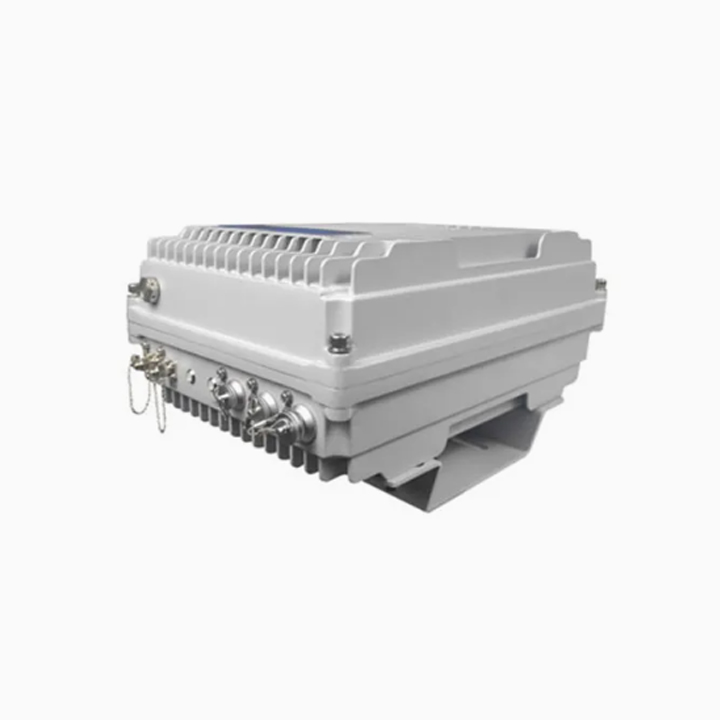

High Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video Transmitting

This High Powered IP Mesh Radio features a purpose-built vehicle-mounted design, engineered to deliver exceptional long-range wireless video transmission in Non-Line-of-Sight (NLOS) environments. Equipped with high-output power and advanced IP mesh networking technology, it ensures reliable, low-latency connectivity across extended distances—even in challenging scenarios like rural terrain, urban sprawl, or areas with physical obstructions such as buildings or foliage. Optimized for continuous video streaming, the radio supports high-definition (HD) content transmission, making it ideal for mission-critical applications including law enforcement patrols, military convoys, emergency response vehicles, and remote infrastructure monitoring. Its rugged vehicle-mounted form factor ensures secure integration with various land vehicles, while robust construction withstands vibration, harsh weather, and extreme operating conditions. The self-healing mesh architecture enables dynamic, ad-hoc network formation, maintaining uninterrupted video links even as vehicles move or network nodes adjust, empowering teams with persistent, long-range communication in NLOS scenarios where traditional radios fall short.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MF10
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 340240135mm
Power Consumption ≤120W
Specification 10W (5W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 10W (5W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight 7kg (Host Only)
Power Supply DC28V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MF10/20 Fixed Mesh Radio

Rugged Protective Structure
10 /20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance

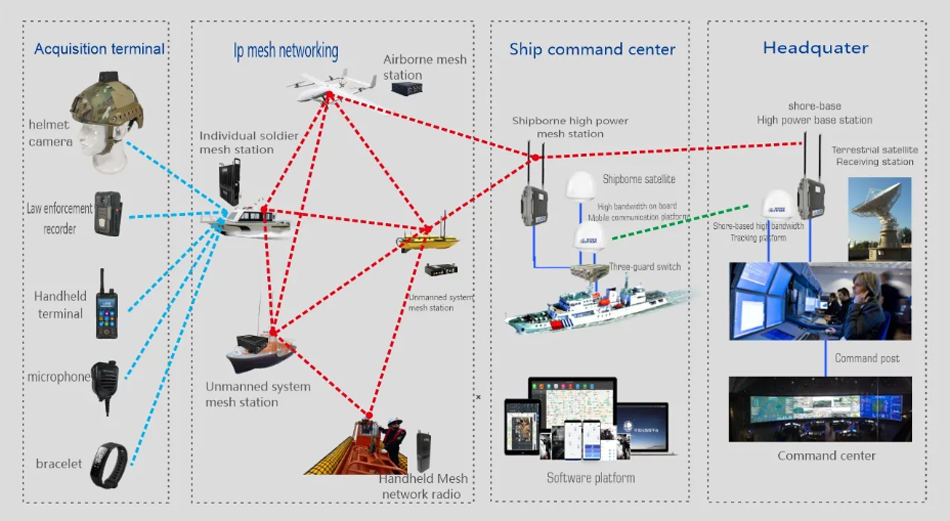

Mesh Radio – Typical System SolutionHigh Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video TransmittingHigh Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video TransmittingHigh Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video Transmitting

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
5W × 2  (10W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Security
AES128 / 256 Encryption
Power Supply
DC28V Power Supply
Power Supply
≤ 120W(Typical), ≤ 200W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface/Audio Interface/Power Interface
Aviation to Connector

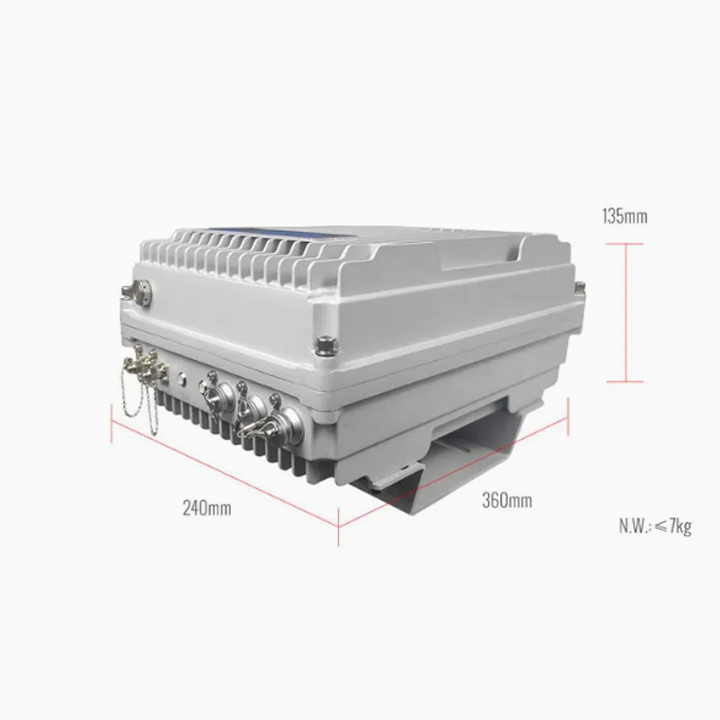

Physical
Dimension
≤ 340 × 240 × 135mm
Weight
≤ 7000g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

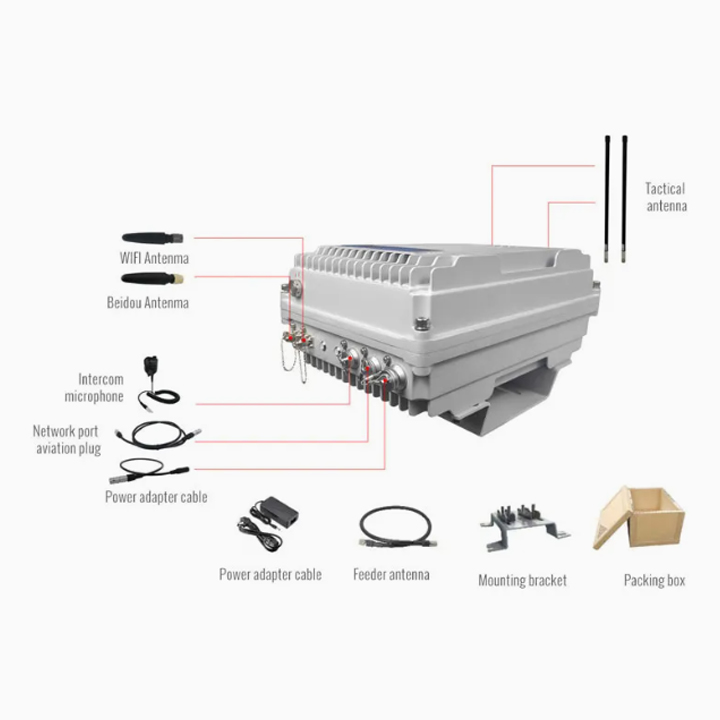

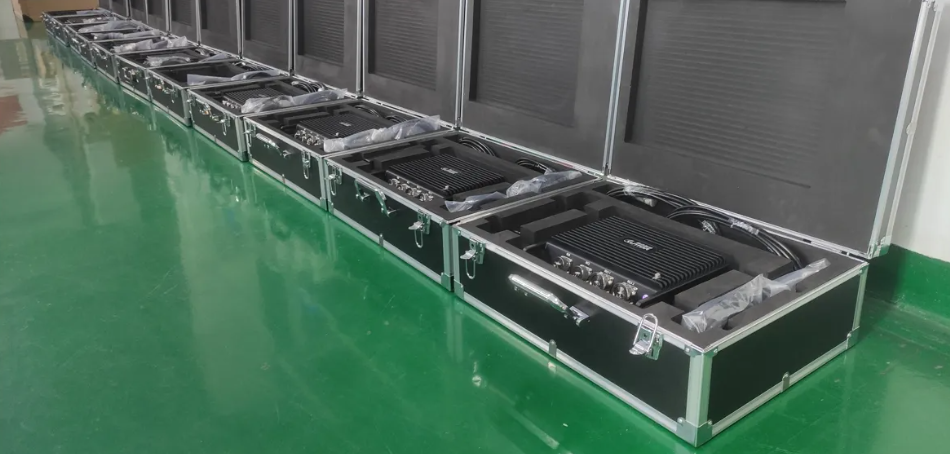

Packing & Delivery

High Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video TransmittingHigh Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video Transmitting

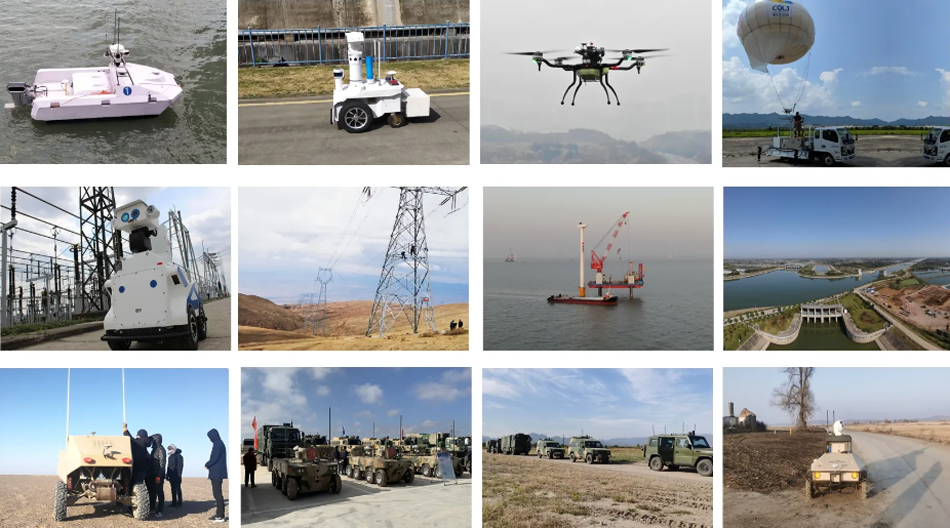

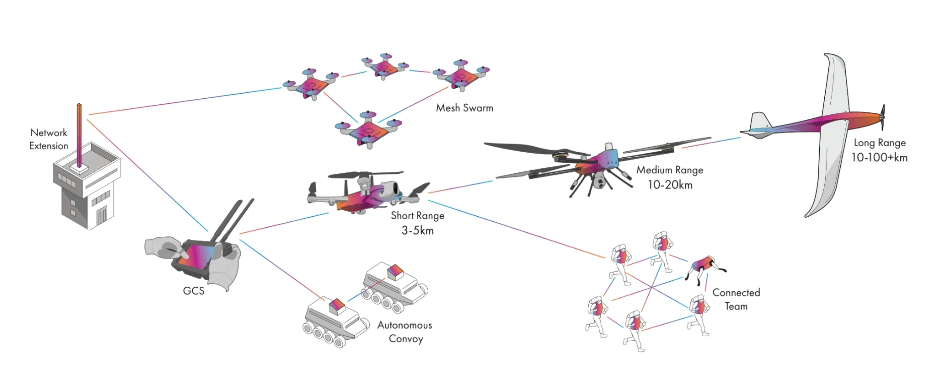

Application

IP Mesh Radio Application Case

High Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video Transmitting

High Powered IP Mesh Radio with Vehicle Mounted Design for Nlos Long Range Wireless Video Transmitting
