Home » Unmanned System Products » High Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video Transmission
China Moneypro Dmimo Mesh Unmanned Drone Data Link System for Uav Ugv Video Data Transmitter
Back to products
China Moneypro Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio

High Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video Transmission

This high-powered vehicle mounted IP mesh radio is engineered to deliver robust, IP-based data and video transmission for on-the-move critical operations. Built with amplified signal strength and ruggedized vehicle-compatible design, it leverages self-healing mesh networking technology to maintain stable connectivity across dynamic terrains—even in remote areas or environments with signal obstructions. Optimized for bandwidth-intensive applications, it seamlessly transmits high-definition video feeds, real-time mission data, and IP-based communications, supporting use cases such as emergency response fleets, tactical vehicle deployments, border patrol, or industrial field operations. Its vehicle-integrated form factor ensures reliable performance under harsh conditions, while the mesh architecture enables scalable, ad-hoc network formation with other vehicles or fixed nodes, empowering teams to stay connected and maintain situational awareness during mobile missions.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MV20
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 49238790mm
Power Consumption ≤200W
Specification 20W(10W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 20W (10W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤8kg (with Battery)
Power Supply AC220V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MV10/20 Vehicle Mesh Radio

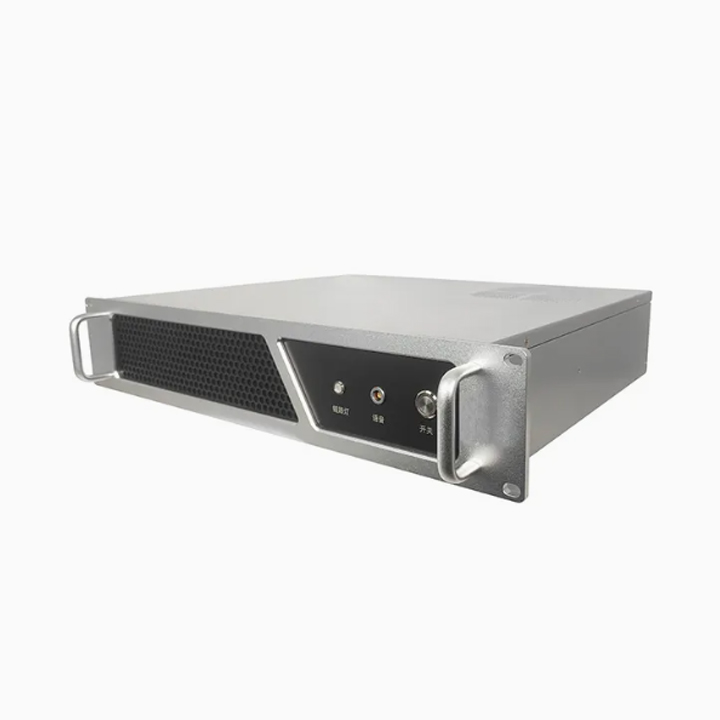

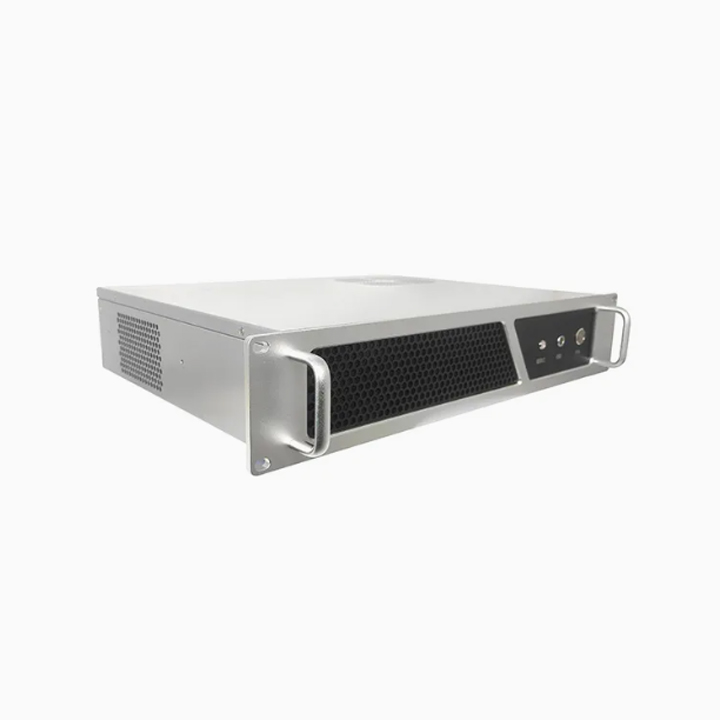

2U Standard Rack Structure
10 / 20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance

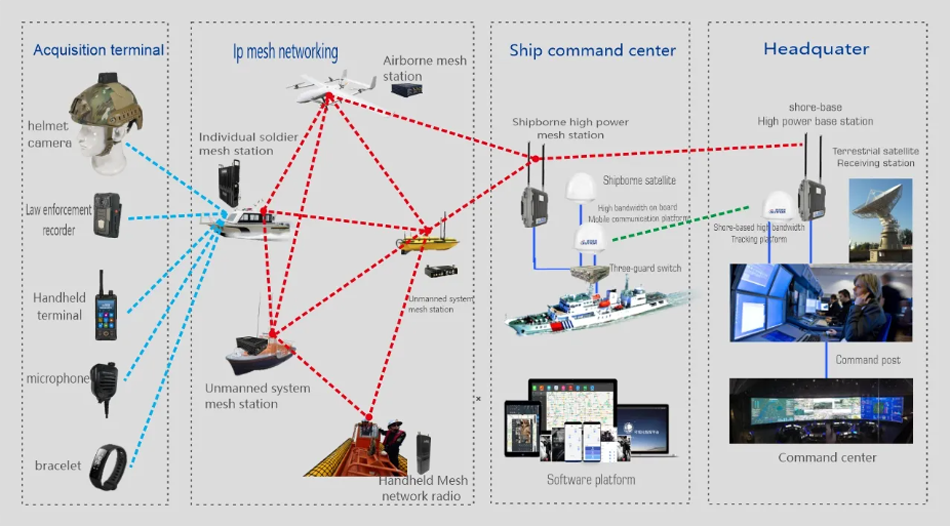

Mesh Radio – Typical System SolutionHigh Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video TransmissionHigh Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video TransmissionHigh Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video Transmission

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
5W × 2  (10W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
AC220V Power Supply
Power Supply
≤ 120W(Typical), ≤ 200W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

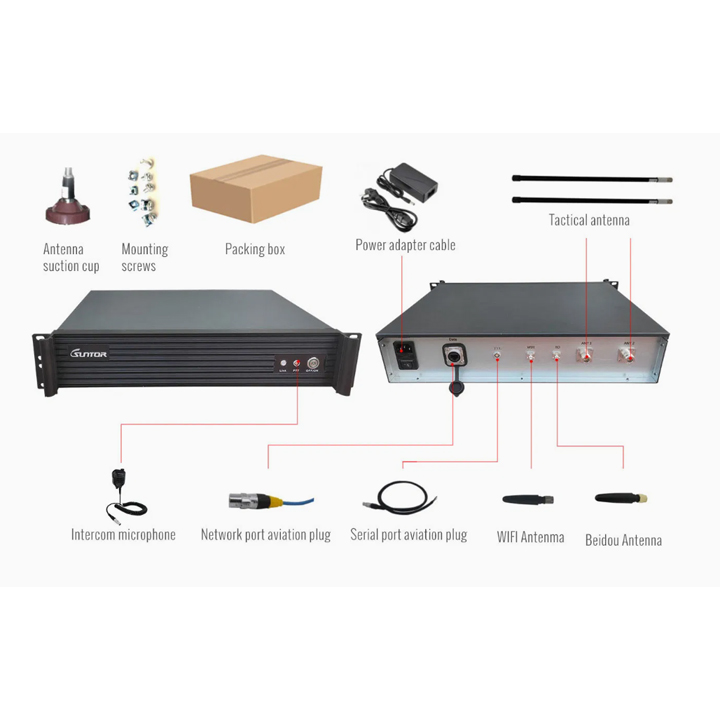

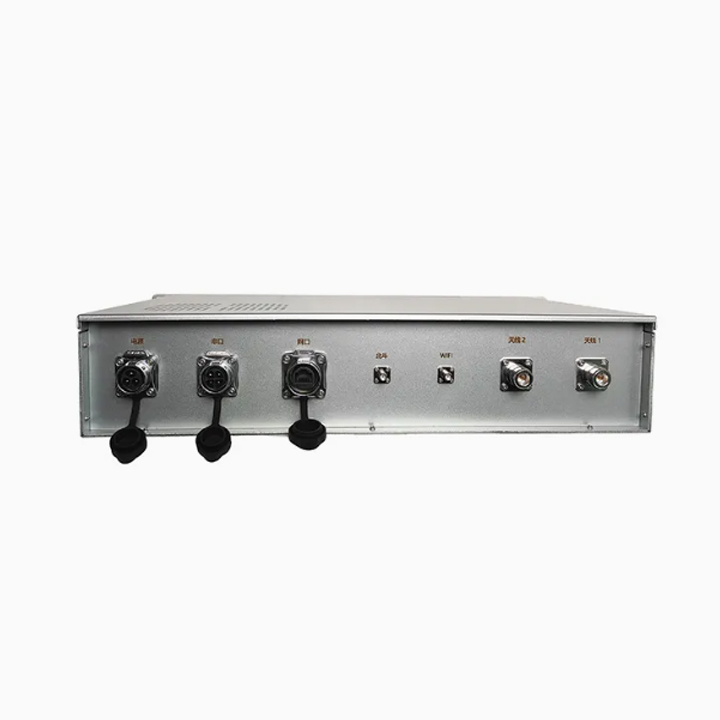

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface/Audio Interface/Power Interface
Aviation to Connector
Physical
Dimension
≤ 482 × 385 × 90mm
Weight
≤ 7200g
Protection Level
IP54
Operating Temperature
-30°C-+65°C

Application

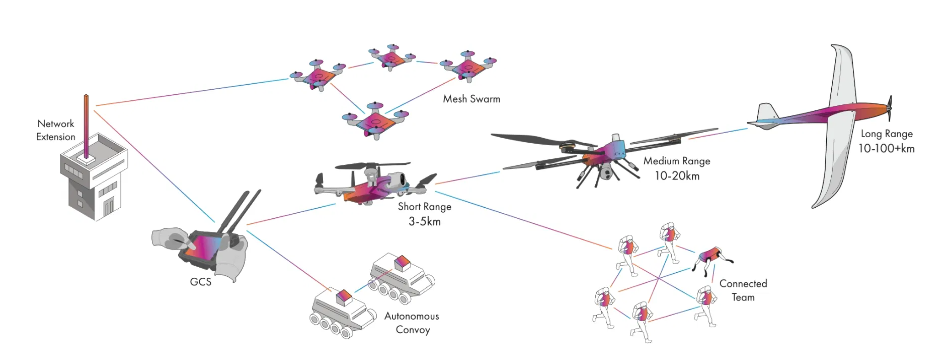

IP Mesh Radio Application Case

High Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video Transmission

High Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video Transmission
