China Moneypro Self-Organizing Ad-Hoc Network Data Link Unmanned System Mesh Radio
Back to products
IP Tactical Vehicle Mesh Radio for Wireless Video and Data Networks Communication

High-Speed Data Transmission Unmanned System IP Mesh Radio for Drone and Robots

The High-Speed Data Transmission Unmanned System IP Mesh Radio is a premium communication solution engineered to meet the bandwidth-intensive needs of drones and robots in mission-critical operations. Built on advanced IP mesh technology, it enables self-organizing, multi-hop connectivity that eliminates dependency on fixed infrastructure—ensuring stable, uninterrupted links even in remote areas, urban canyons, or signal-congested environments. Designed for ultra-fast data transfer, it delivers high-throughput transmission of 4K/HD video, real-time sensor feeds, telemetry data, and control commands with minimal latency, empowering seamless coordination for applications like autonomous navigation, collaborative mapping, industrial inspections, and public safety missions. Equipped with robust encryption and anti-interference capabilities, it safeguards sensitive operational data against unauthorized access, while its compact, lightweight form factor integrates effortlessly with a wide range of drone and robot platforms. Whether deployed for commercial, industrial, or public safety use, this IP mesh radio unlocks the full potential of unmanned systems by combining high-speed performance, reliability, and security in a versatile package.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MU08
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 18713765mm
Power Consumption ≤ 80W
Specification 8W (4W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 8W (4W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤ 1.4kg (Host Only)
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

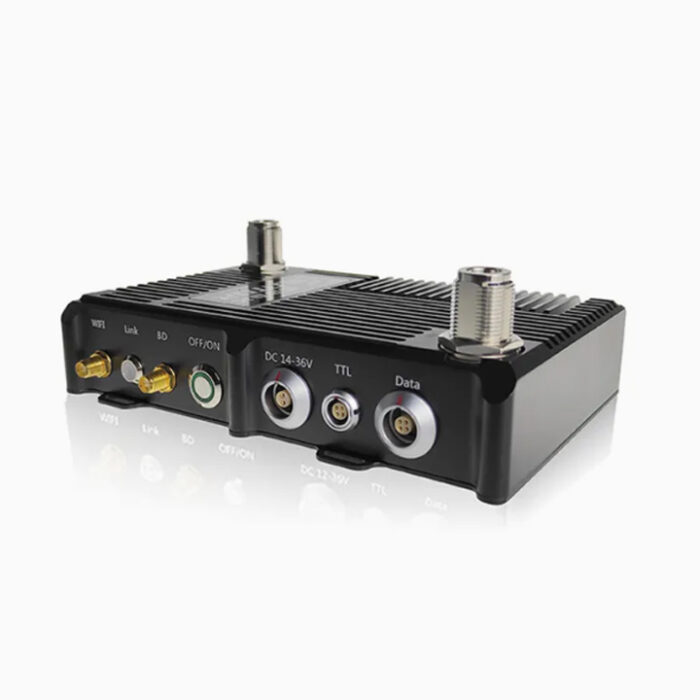

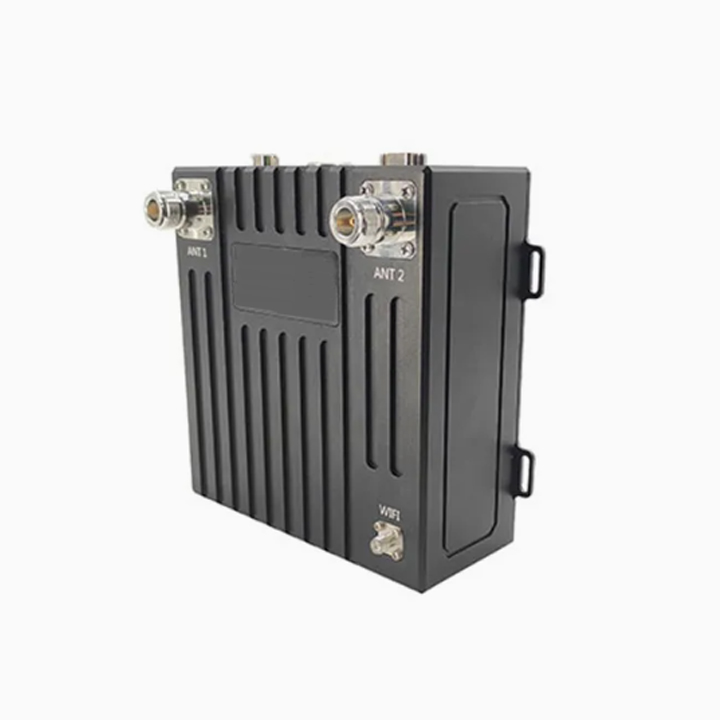

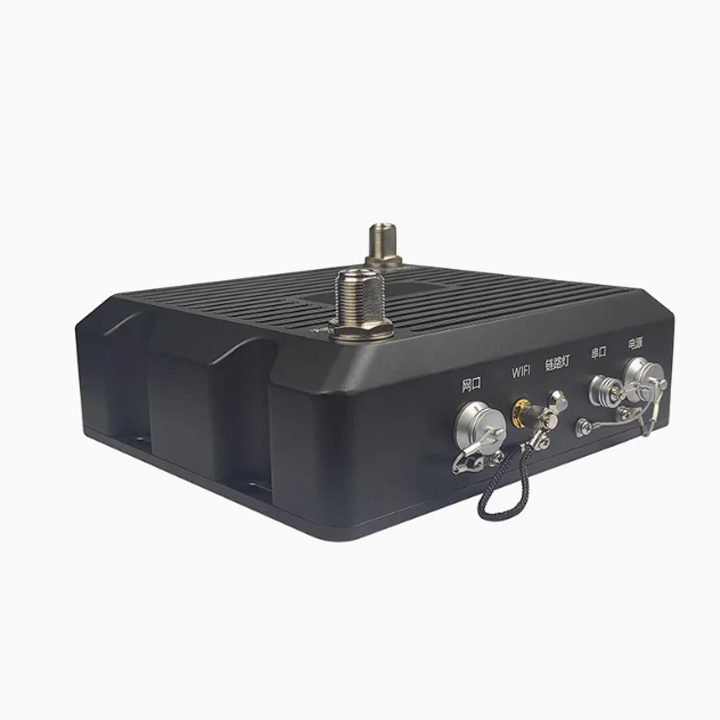

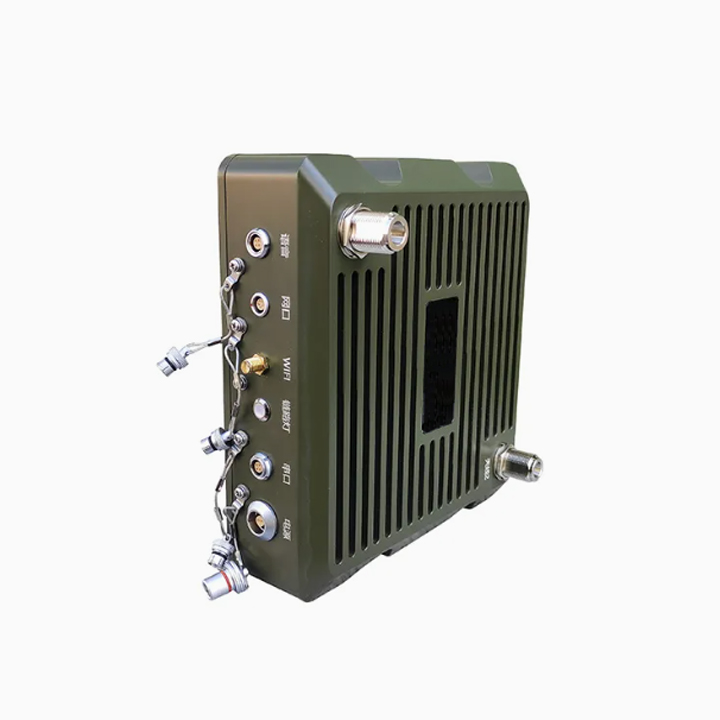

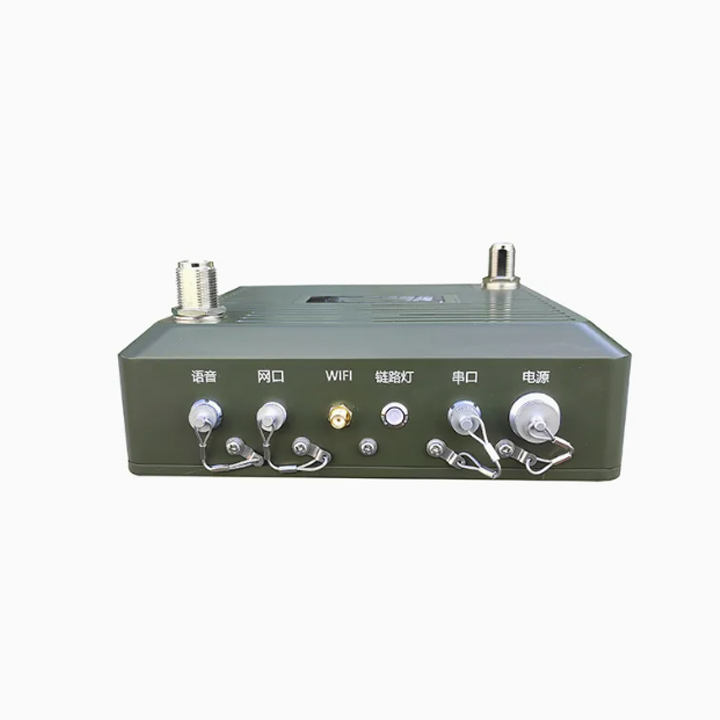

MU08 Unmanned System Mesh Radio

Compact Size
2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area or 30KM Air-to-Ground Transmission Distance

Mesh Radio – Typical System Solution

Suntor Wireless Video Transmitter Rugged and Secure High Frequency RadiosSuntor Wireless Video Transmitter Rugged and Secure High Frequency RadiosSuntor Wireless Video Transmitter Rugged and Secure High Frequency Radios

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2 (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 30W
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 187 × 137 × 35mm
Weight
≤ 1400g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

Packing & Delivery

Suntor Wireless Video Transmitter Rugged and Secure High Frequency RadiosSuntor Wireless Video Transmitter Rugged and Secure High Frequency Radios

Application

IP Mesh Radio Application Case

Suntor Wireless Video Transmitter Rugged and Secure High Frequency Radios

Suntor Lightweight Handheld IP Mesh Radio for Secure Voice and Data Communication
