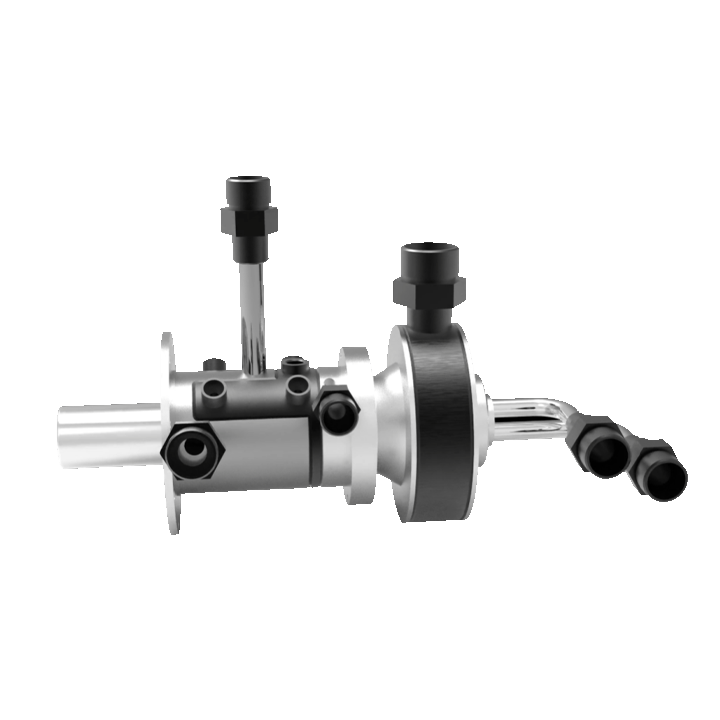

Industrial Burner Series Characteristics
The industrial burner series primarily includes three models utilizing detonation combustion technology: EG201, EG202, and HOH105. The EG201 is mainly applied in industrial heating scenarios, while the EG202 is integrated with gas turbines for power plant applications. The HOH105 enables hydrogen-rich combustion for use in hydrogen heating, incineration, metallurgy, and other fields. Benefiting from the rapid combustion reaction of detonation combustion technology, these burners offer advantages such as ultra-low nitrogen oxide emissions and high combustion efficiency. Under gas turbine emission standards, NOx emissions can achieve ultra-low levels below 5 ppm.
Industrial Burner Series advantages:
- Ultra-low NOx emissions: Through precision engineering, the MTN-HEG series detonation burners control NOx emissions below 10 mg/Nm³, minimizing environmental impact.
- High-efficiency energy conversion: By leveraging detonation technology, energy conversion efficiency is significantly enhanced, delivering greater economic efficiency compared to traditional combustion methods.
Industrial Burner Series Specification
| Model | Technical Specifications | Parameter | Unit |
| MTN-BG-100 | Single-burner rated load (customized project) | 100 | kW |
| Corresponding boiler | Custom | ||
| NOx emissions | ≤15 | mg/Nm³ | |
| MTN-HEG-75 | Burner rated load | 4.5 | MW |
| Corresponding boiler | 6 | t/h | |
| NOx emissions | ≤15 | mg/Mm³ | |
| MTN-HEG-150 | Burner rated load | 7.5 | MW |
| Corresponding boiler | 10 | t/h | |
| NOx emissions | ≤15 | mg/Mm³ | |
| MTN-HEG-225 | Burner rated load | 22.5 | MW |
| Corresponding boiler | 30 | t/h | |
| NOx emissions | ≤15 | mg/Mm³ | |
