Home » Unmanned System Products » Long Range 10km Transmission Mesh Radio System for Live HD Video Streaming

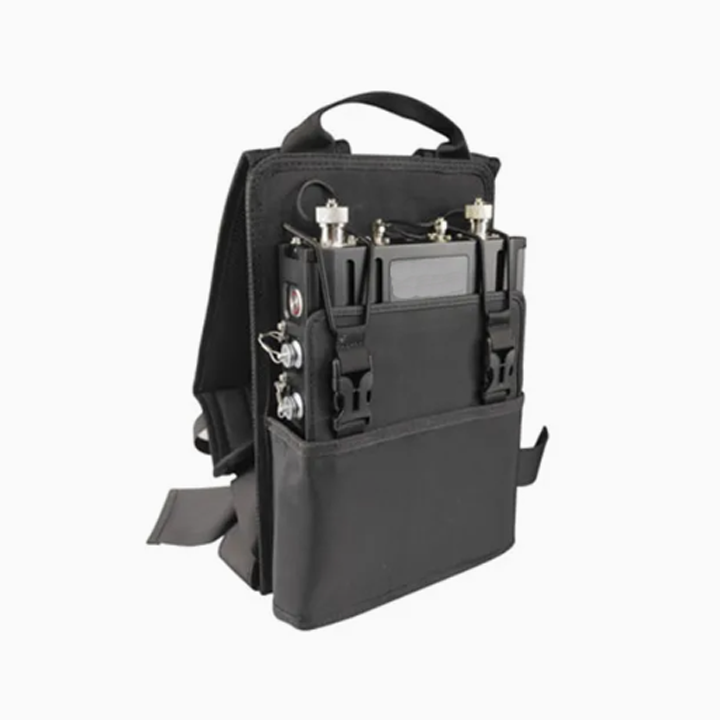

Manpack IP Mesh Radio for Stable Video Data Transmission in Harsh Environments
Back to products
Secure and Robust Manpack Mesh Radio for Critical Video Data Transmission

Long Range 10km Transmission Mesh Radio System for Live HD Video Streaming

Our Long Range 10km Transmission Mesh Radio System is a high-performance communication solution tailored for seamless live HD video streaming across extended distances. Engineered to deliver reliable connectivity up to 10km, it ensures smooth, low-latency transmission of high-definition live video—making it ideal for scenarios like outdoor event broadcasting, remote site monitoring, large-scale public safety operations, and long-distance aerial surveillance. Powered by advanced Mesh Radio technology, the system features self-healing, multi-node networking that automatically adapts to signal obstacles (such as rural terrain, urban buildings, or natural landscapes) to maintain uninterrupted streaming, even in dynamic or signal-challenged environments. Compact, easy to deploy, and compatible with various video capture devices, it balances long-range performance with HD quality, providing professionals in media, security, and industrial fields with a dependable tool to deliver clear, real-time live video streams over significant distances without compromising on stability or visual clarity.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB08
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 27519852mm
Power Consumption ≤ 30W
Specification 2W (1W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 27.50cm * 19.80cm * 5.20cm
Package Gross Weight 3.000kg

Product Description

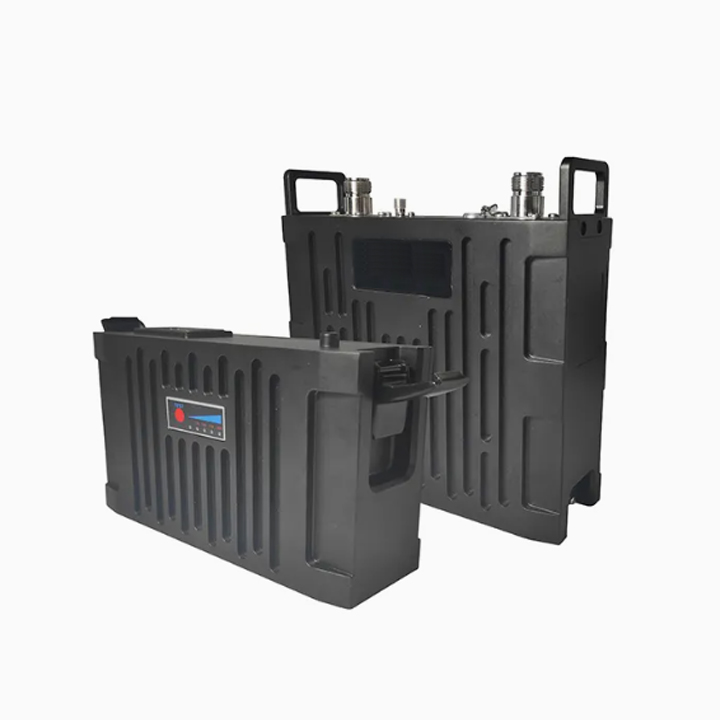

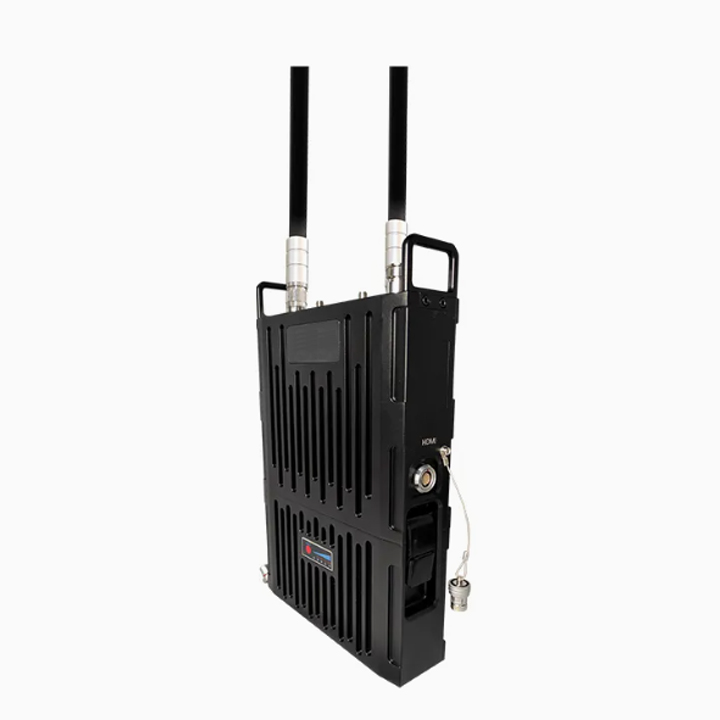

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

Mesh Radio – Typical System Solution

Uav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned System Uav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned System Uav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned System

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

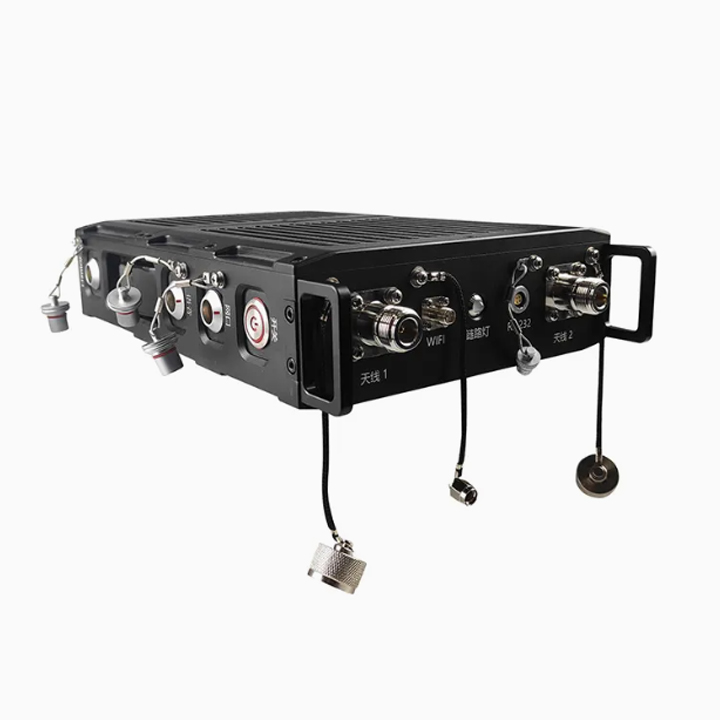

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

Packing & Delivery

Uav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned SystemUav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned System

Application

IP Mesh Radio Application Case

Uav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned System

Uav Data Link System IP Mesh Radio Wireless Video Transmitter for Drones Unmanned System
