Home » Unmanned System Products » Long Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data Link
Wireless Transmitter and Receiver IP Mesh Radio Station Full IP Duplex Drone Data Transmission Radio
Back to products
Cofdm IP Mesh Drone Ad Hoc Network Wireless Broadband Emergency Communication Drone Mesh Radio

Long Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data Link

This Long Range Wireless Transmitter and Receiver integrates Ad Hoc Network and IP Mesh technology into a rugged manpack radio module, delivering reliable long-distance data link performance for field-critical applications. Engineered with advanced Ad Hoc networking capabilities, it enables automatic, self-forming, and self-healing connectivity without 依赖 pre-existing infrastructure, ensuring seamless bidirectional data transmission across extended distances. The compact, lightweight manpack design facilitates easy portability for field operators, while the robust IP Mesh architecture enhances anti-interference and signal stability, supporting high-speed data, video, and voice communication in remote or harsh environments. Ideal for emergency response, military operations, border surveillance, and outdoor industrial deployments, this radio module serves as a versatile, long-range data link solution, empowering teams to maintain consistent connectivity even in challenging, infrastructure-free scenarios.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 275*198*52mm
Power Comsuption ≤ 30W
Specification 2W (1W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

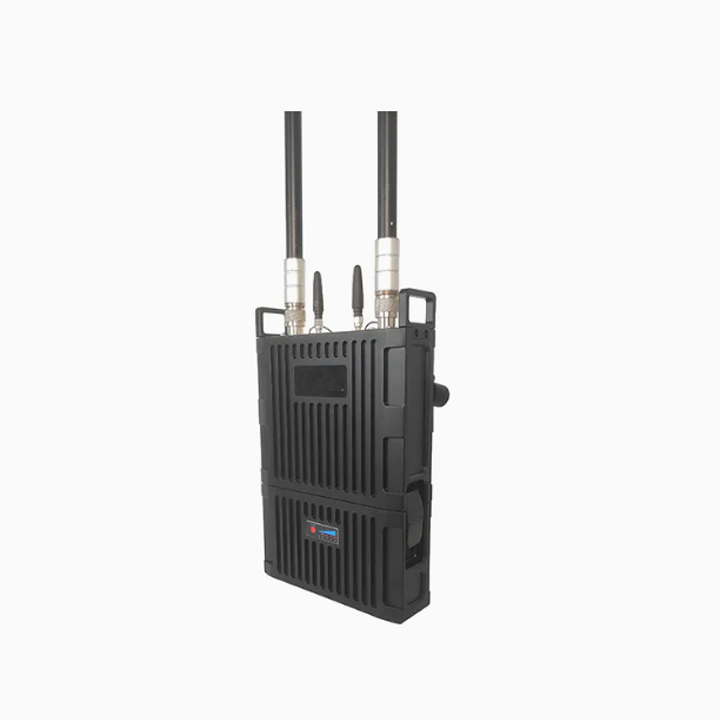

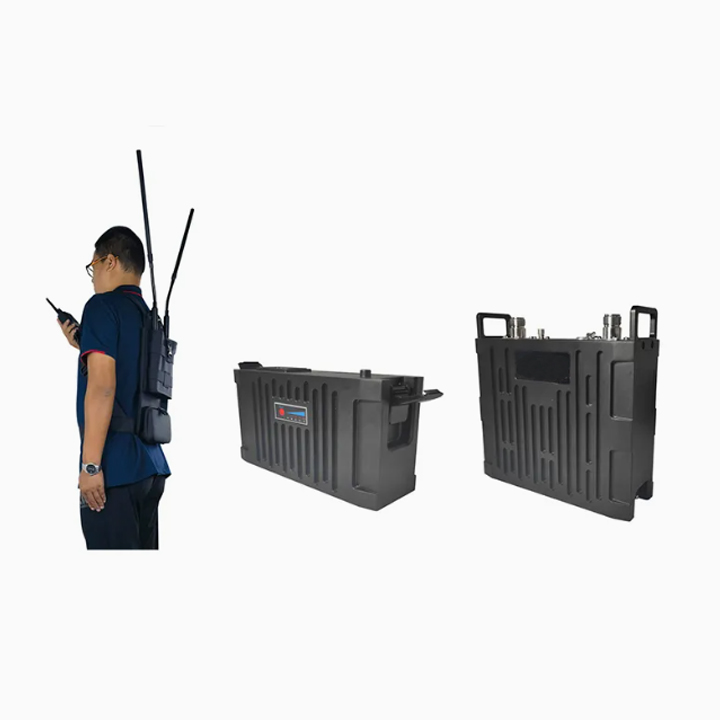

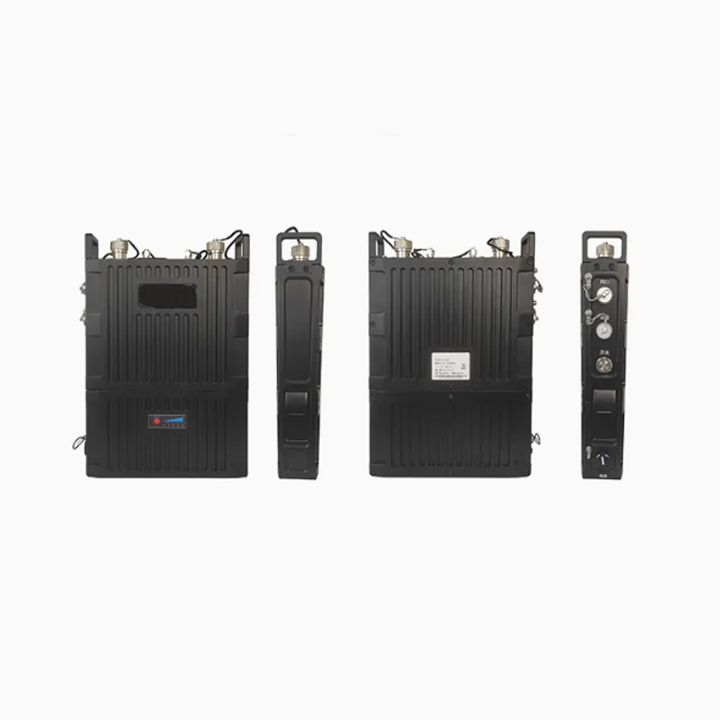

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

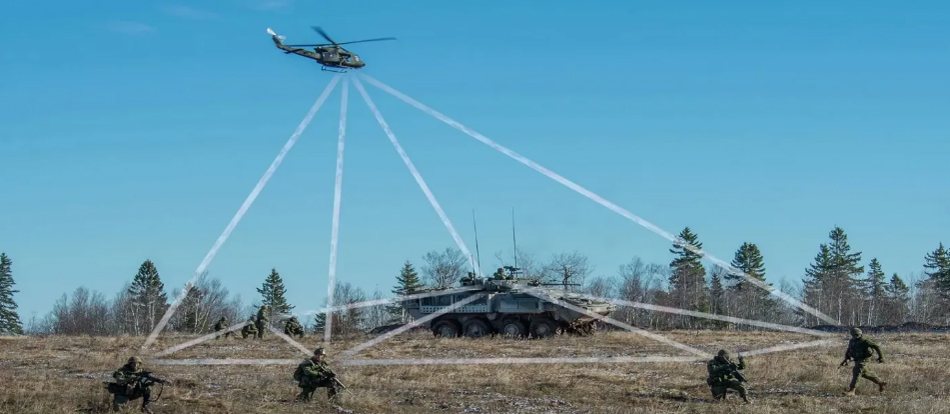

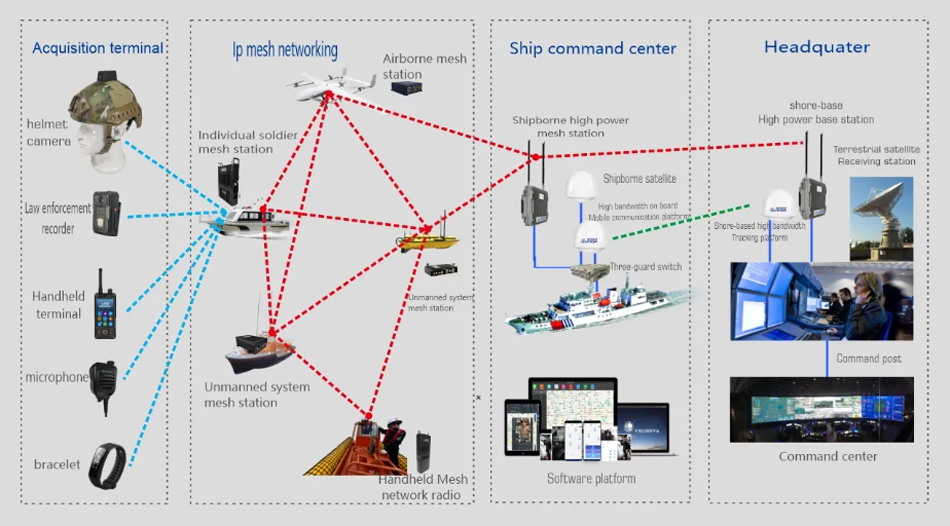

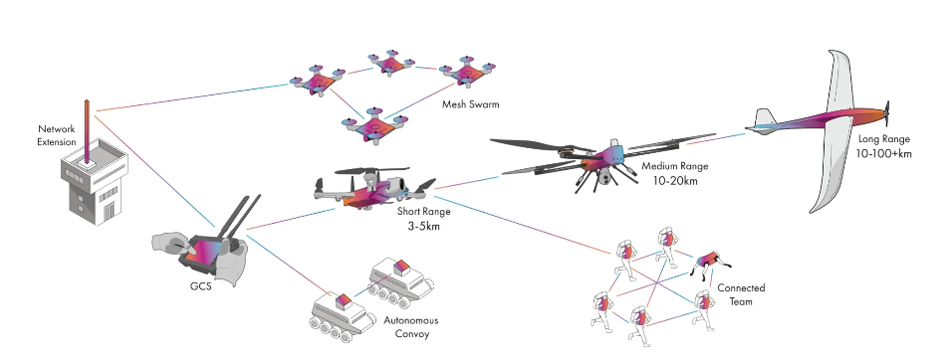

Mesh Radio – Typical System Solution

Long Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data LinkLong Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data LinkLong Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data Link

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

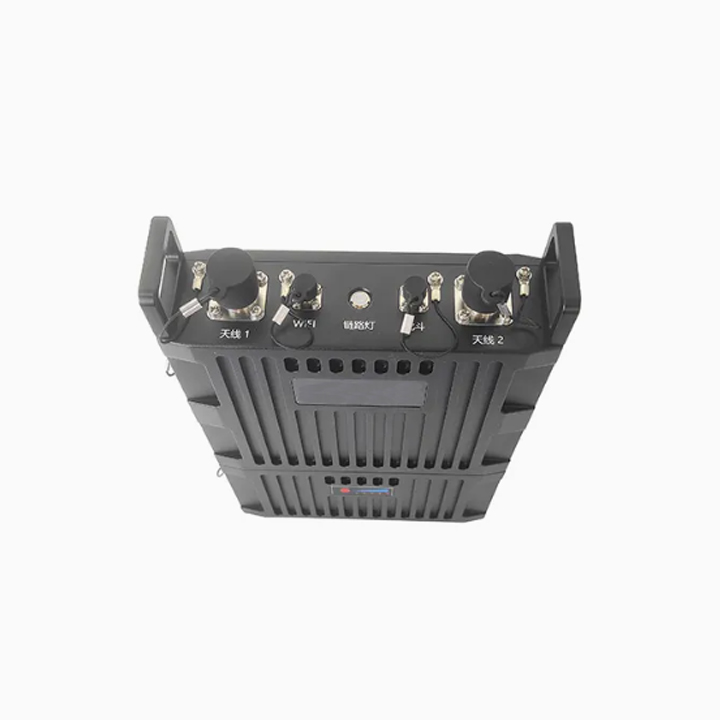

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

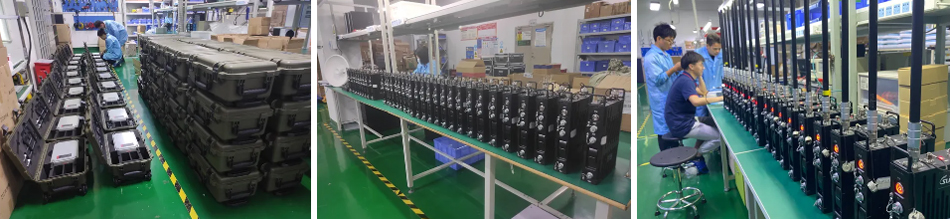

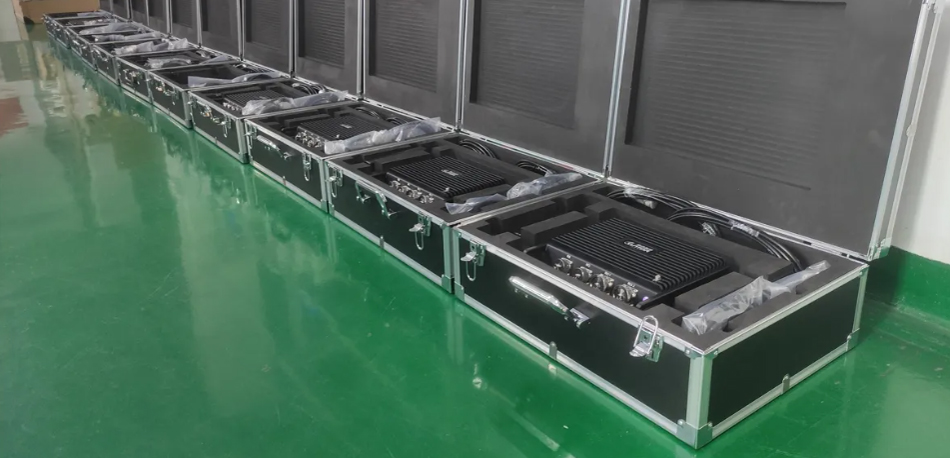

Packing & Delivery

Long Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data LinkLong Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data Link

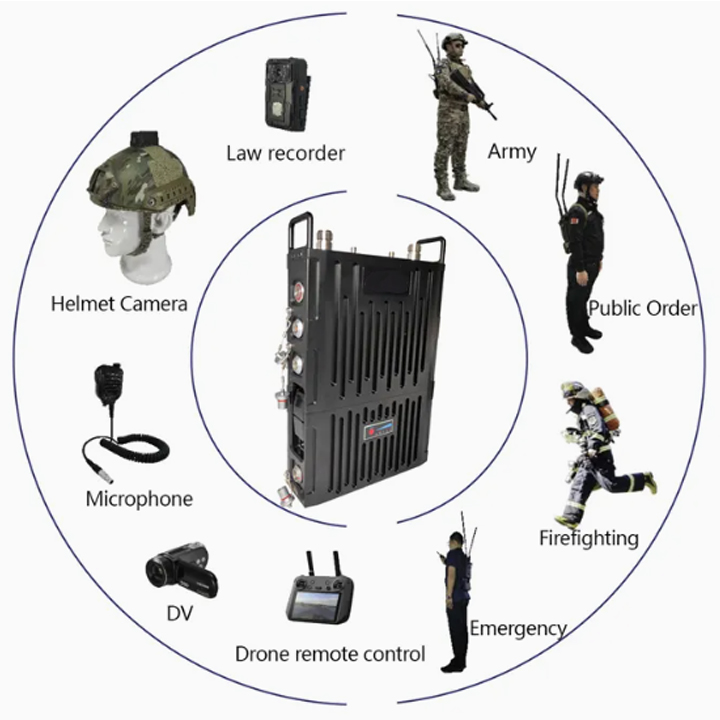

Application

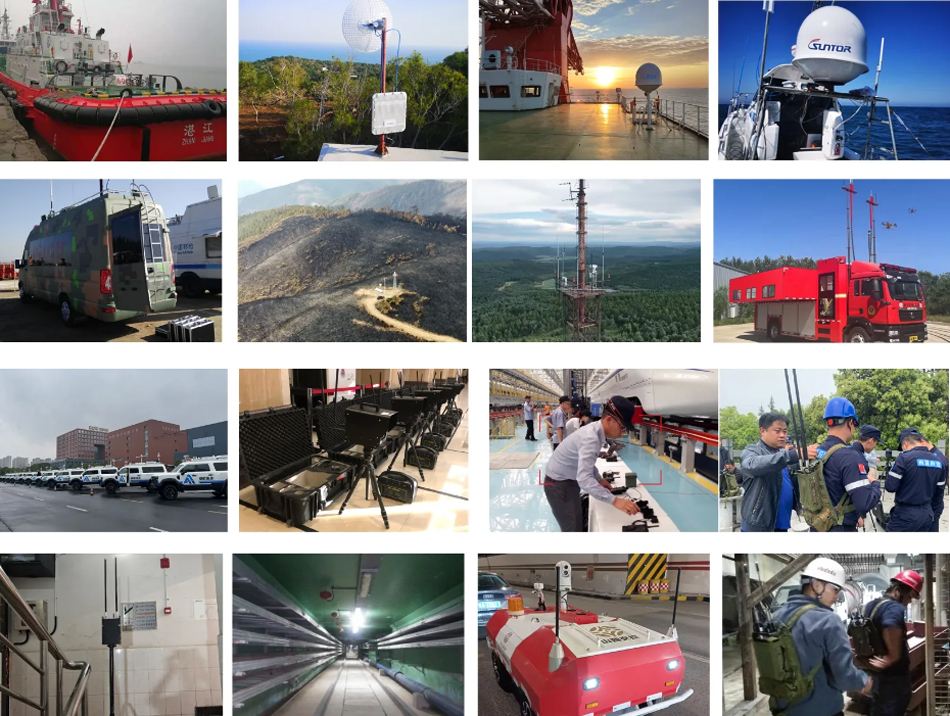

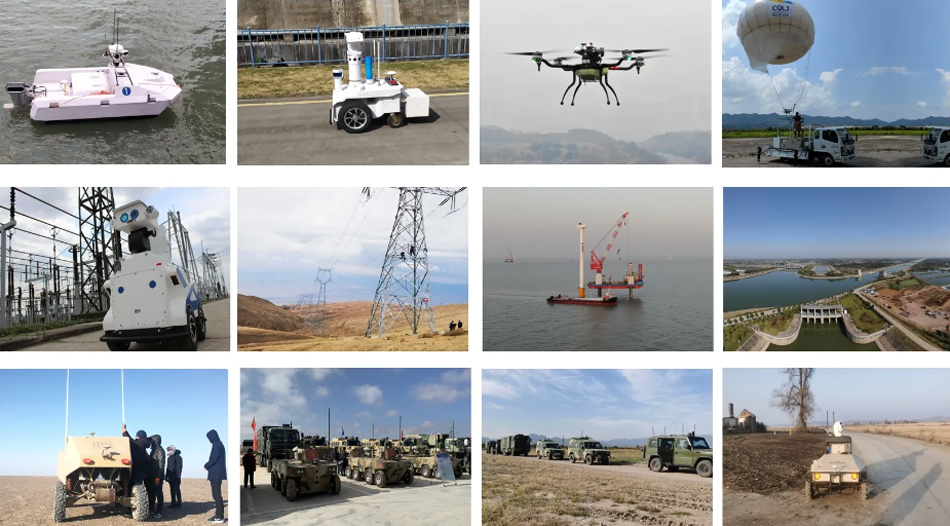

IP Mesh Radio Application Case

Long Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data Link

Long Range Wireless Transmitter and Receiver Ad Hoc Network IP Mesh Radio Manpack Radio Module Data Link
