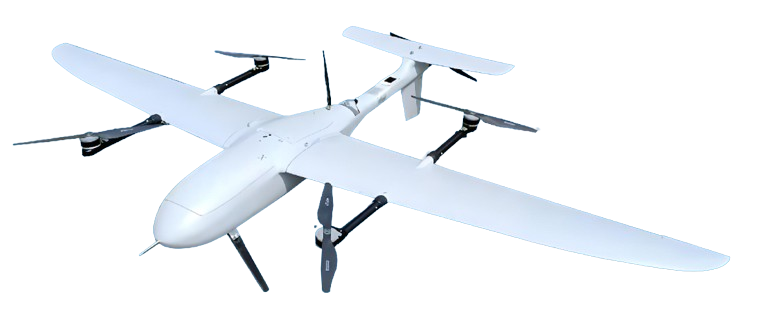

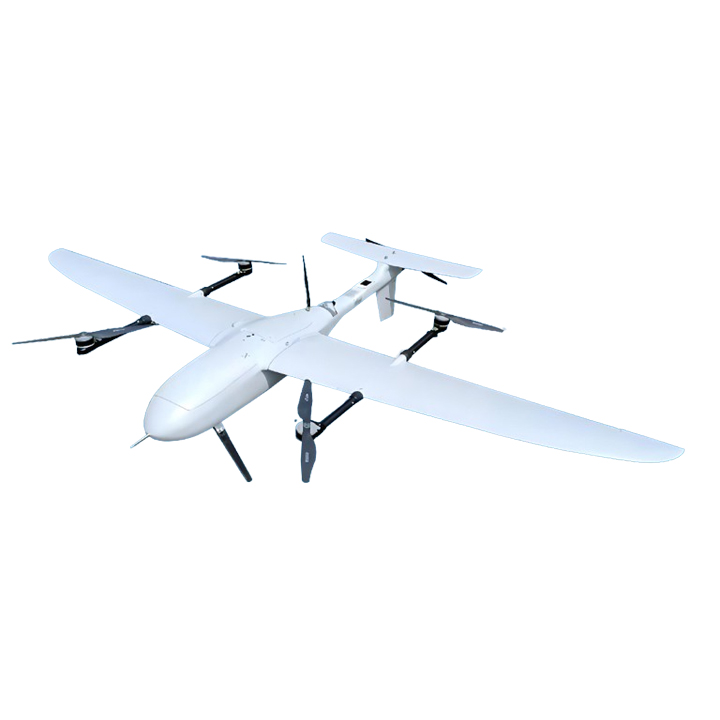

M-13 Vertical Takeoff And Landing Composite Wing Unmanned Aerial Vehicle

The M-13 Vertical Takeoff and Landing (VTOL) Composite Wing Unmanned Aerial Vehicle combines the flexibility of VTOL capability with the efficiency of fixed-wing flight, eliminating the need for runways and enabling operation in confined or remote areas. Crafted with advanced composite materials, it boasts a lightweight yet durable structure that enhances payload capacity and extends endurance. Equipped with reliable navigation systems, high-definition imaging or specialized mission payloads (e.g., multispectral sensors), and stable flight control, the M-13 excels in diverse scenarios—from aerial mapping, agricultural surveillance, and infrastructure inspection to environmental monitoring—delivering consistent performance, long-range coverage, and easy deployment for both professional and industrial users.

Categories: , ,
Description

Parameter Details

  • Aircraft Type: Vertical Take-Off and Landing Composite Wing UAV
  • Empty Weight: <3.5kg
  • Aircraft Material: Autoclave-molded all-composite material
  • Take-off and Landing Method: Vertical Take-Off and Landing
  • Maximum Take-off Weight: 13.5kg
  • Payload: <2kg
  • Power System: V505KV260 + AT4130KV230
  • Battery: 12S 30000mAh
  • Flight Speed: 65-100km/h
  • Cruising Speed: 75-90km/h
  • Wind Resistance: Headwind Level 6
  • Flight Endurance: >210 minutes (with 1kg counterweight)
  • Packing Box Dimensions: 1260*486*405mm; 0.25 m³ (40kg)

Dimensions

  • Wingspan: 2.5m
  • Length: 1.56m (1.62m with pitot tube)
  • Ground clearance: >160mm
  • Fuselage: Carbon fiber composite with PVC foam core
  • Wings: Kevlar composite with PVC foam core
  • Vertical takeoff and landing boom: 3K carbon fiber

Flight Data

  • Takeoff Weight: 13 kg
  • Payload: 1 kg
  • Cruising Speed: 72 km/h
  • Cruising Time: >3.5 hours
  • These data were tested at an altitude of 10 meters, a flight altitude of 150 meters, and wind speeds of 3.4-7.0 m/s.
