Product Detail
Centimeter-level positioning
Cm-level positioning caters to industrial and high-precision positioning needs. Specifically, the static positioning accuracy of RTK reaches up to 1 cm, and the dynamic positioning accuracy of UAV surveys is approximately 6 cm.
Better GPS
Used alone, it can work as a GPS and is better than other GPS positioning tools.
Double-ended switching
Both the mobile terminal and the ground terminal adopt a Type-C interface, enabling free switching between the two terminals.
10s switch RTK mode
It features the highest RTK refresh rate, which can reach up to 20Hz, enabling quicker reduction of positioning errors. Additionally, its convergence time is less than 10 seconds, and it can switch to RTK mode instantly within 10 seconds.
Specifications
| Prd | |
|---|---|
| Satellite receiver type | 184 channel Ubox F9P |
| Navigation satellite system | Beidou, Galileo, GLONASS, GPS / QZSS |
| Satellite frequency band | GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C |
| Navigation refresh rate | RTK up to 20 Hz |
| Positioning accuracy | RTK 0.01M+1ppm CEP |
| Convergence time | RTK is less than 10s |
| Capture satellite | Cold start 24s |
| Auxiliary start 2s | |
| Capture again 1s | |
| Sensitivity | Tracking and navigation –167 dBm |
| Cold start –148 dBm | |
| Hot Start –157 dBm | |
| Reacquisition –160 dBm | |
| Anti-jamming | Active CW detection and removal Onboard band pass flter |
| Anti-spoofng | Advanced anti-spoofng algorithms |
| Interfaces | |
| Serial interfaces | UART x2 |
| USB | 1 |

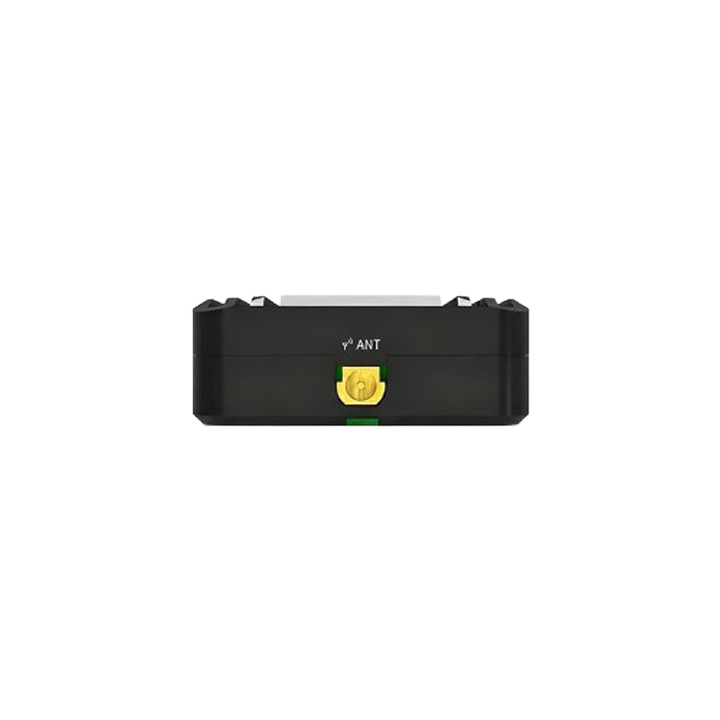

| Antenna | Multi-satellite and multi-frequency antenna |
| Timepulse | Confgurable: 0.25 Hz to 10 MHz |
| Protocols | NMEA、UBX binary、RTCM version 3.3 |
| working environment | |
| Voltage | 5V |
| Temperature | –20 °C to +85 °C |
| Dimensions and weight | |
| Size | 31.5mmX48mmX12mm |
| Weight | 21g |
