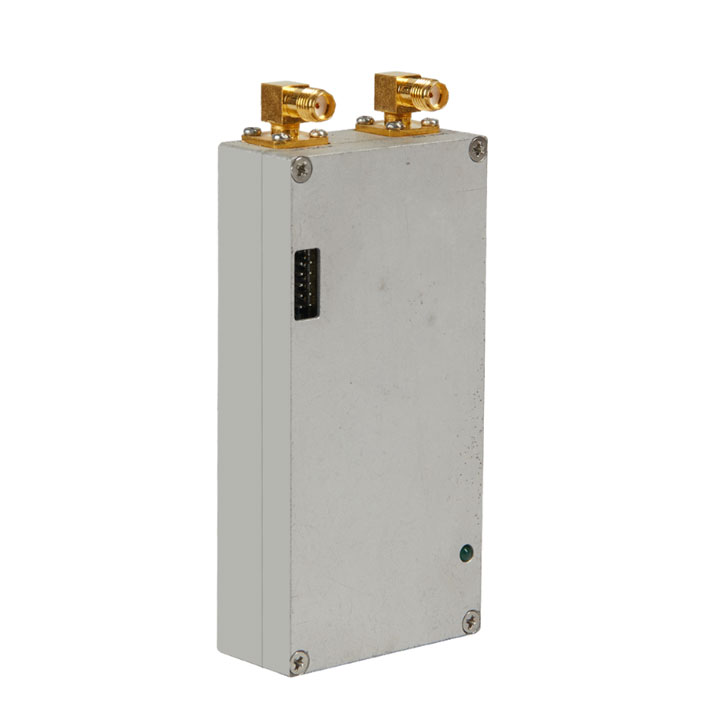

M025A Transmitter SD Integrated Transmitter Features
- Integrated design of image data transmission function.
- Image transmission COFDM digital modulation.
- Frequency hopping data transmission.
- Strong anti-interference ability, small size and lightweight.
M025A Transmitter SD Integrated Transmitter Parameters
Video transfer part
Parameters
- Working frequency
- 330~360MHz,420~450MHz,570~590MHz（ or user customized）
- Signal BW
- 2.5MHz ( or user customized)
- Output power
- 0.1~1W
- Modulation
- COFDM
- Constellation
- QPSK,16QAM,64QAM
Data transmission
Parameters
- Working frequency
- 902~928MHz
- Modulation
- GMSK,2GFSK,4GFSK,QPSK
- BW
- 25KHz@19.2bps,400KHz@345kbps
- TX power
- <30dBm
- Work mode
- point-to-point,point-to-multipoint,MESH
Performance
- Receiving sensitivity
- -112dBm@115.2kbps
- Transmission rate
- 300bps~230kbps
- Video encoding format
- H.264 coding，support 480P,576P H.264 encoding, supporting 480p,576p
Interface index
- Video interface
- CVBS SD input
- Audio interface
- Analog audio small signal input
- Telemetry interface
- RS232
- Antenna interface
- SMA
Electrical specifications
- Voltage range
- DC12V
- System power consumption
- <12W
Physical specifications
- Dimensions(L*W*H)
- 97.5mm*47.5m*22mm
- Weight
- 125g
- Working temperature
- -40℃ ~+80℃
