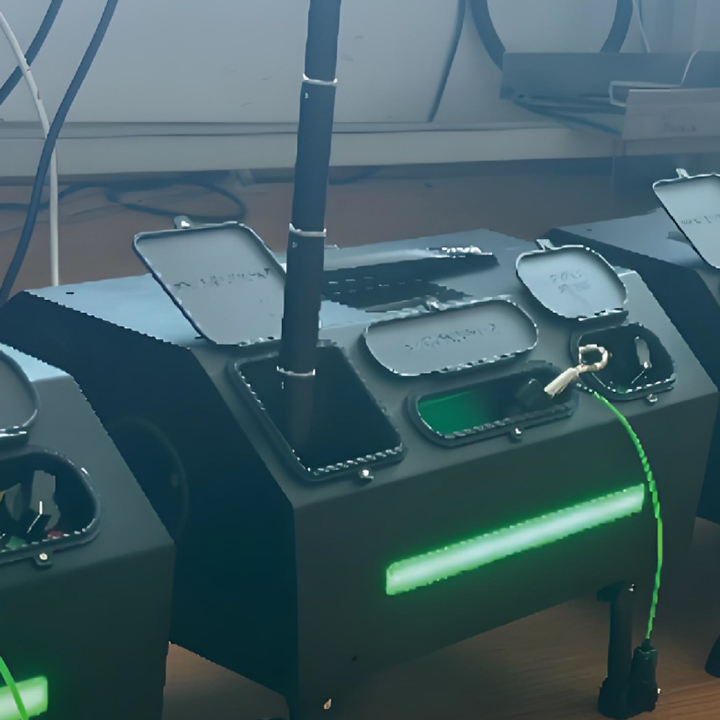

M350 Drone Mooring Box

The M350 Drone Mooring Box is a secure, all-in-one ground station designed for automated launch, recovery, and protected storage of tethered drones. It provides continuous power and data connectivity, enabling 24/7 operation for persistent surveillance, communications relay, and environmental monitoring in remote or harsh environments.

Categories: , ,
Description

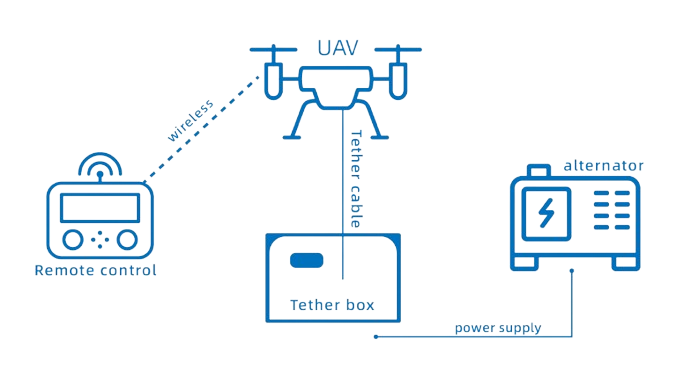

M350 Drone Mooring Box



Tether Cable

  • Maximum overcurrent capacity: 10A
  • Insulation resistance: 21300M/km.20℃
  • Voltage resistance value: ≥ 3.3kV/min without breakdown
  • Cable diameter: 3mm



Tether Parameters

  • Built in lighting control circuit, capable of controlling lighting fixtures
  • Power off protection function: During the flight of the drone, if the ground power supply is abnormally interrupted, the drone
  • Continuous working hours: not less than 24 hours
  • Can fly and land normally. The shell material is aluminum alloy
  • Quick disassembly structure: tool free quick disassembly and assembly
  • The weight of the onboard module is ≤ 420g,
  • Airborne module size: 134mm x 95mm x 94mm±5mm



Ground Mooring Box

  • Tether box size: 391mm x293mmx202mm± 4mm (excluding back frame)
  • Box weight: 8.8kg
  • Output power: 23500W
  • Metal casing, fire-resistant, acid and alkali resistant, and flame-retardant; Durable and pressure resistant, capable of with-standing up to 40 kilograms of pressure without damage. Equipped with dual USB output ports, it can charge remote con-trols, near-field lighting, etc
  • Dual cooling fans, independent control: After the AC connection of the mooring box, the low-power fan starts; After the high-voltage power supply starts working, the high-power fan starts up
  • Equipped with a hand crank wire winding function, when the mooring box is out of power, the wire can be wound up through
    the hand crank
  • Equipped with lighting control button switches, the lights mounted on the drone can be turned on and offthrough the button switches. Equipped with a retractable cable bracket, the top of the cable bracket is equipped with near-field lighting, which has regular brightness, high brightness flashing switching, and a torque knob to adjustthe tension on the cablelighting lamp
    has regular brightness, high brightness flashing switching, and is equipped with a torque knob, which can adjust the tension on the entire cable conveniently
