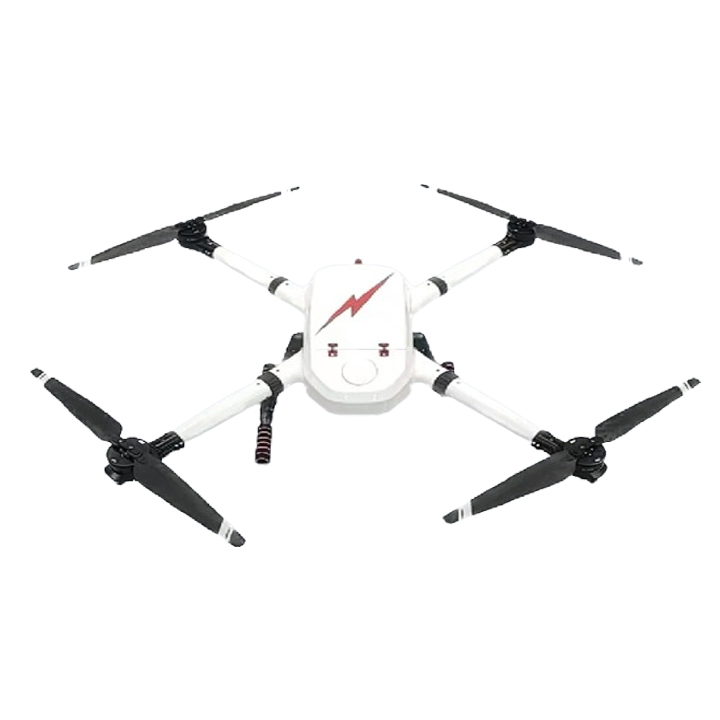

M4-10 Industry Level Drone

The M4-10 is a high-performance industry-level FPV drone engineered for long-range missions and heavy-load operations, ideal for professional aerial tasks like inspection, mapping, and specialized payload delivery. Built with a rugged carbon fiber frame (7mm thick arms, 428mm wheelbase) and reinforced stiffener bars, it balances structural rigidity with lightweight design (total weight ~968g) for stable flight even under maximum payload (up to 3kg). It supports large-capacity 6S 8000mAh batteries to extend endurance, paired with powerful EM 3115 900KV motors and 80A 4-in-1 ESCs for reliable power output. Equipped with flexible VTX compatibility (5.8G/4.9G options) and ELRS 915MHz long-range transmission, it ensures low-latency connectivity for precision control, while standardized mounting holes (30.5×30.5mm for FC, multiple VTX sizes) allow easy integration of cameras, sensors, or custom tools.

Category:
Description

Parameter Details

  • Product Material: Dongli 3K Carbon Fiber
  • Propellers: 24-inch folding propellers
  • Number of rotors: 4-axis, 4-propellers
  • Deployed dimensions: 1100*800*470mm
  • Folded dimensions: 480*390*470mm
  • Wheelbase: 950mm
  • Maximum payload: 5kg
  • Maximum takeoff weight: 15kg
  • Flight endurance: 70 minutes (empty); 40 minutes (fully loaded)
  • Maximum speed: 15m/s
  • Environmental protection rating: IP54
  • Positioning systems: GPS/Beidou/Galileo/GLONASS
  • Positioning accuracy: ±0.5m

M4-10 Industry Level Drone
