Home » Unmanned System Products » M40 Industry Level Drone
M20 Industry Level Drone
Back to products
M40Pro-QX-D Photovoltaic Cleaning Drone

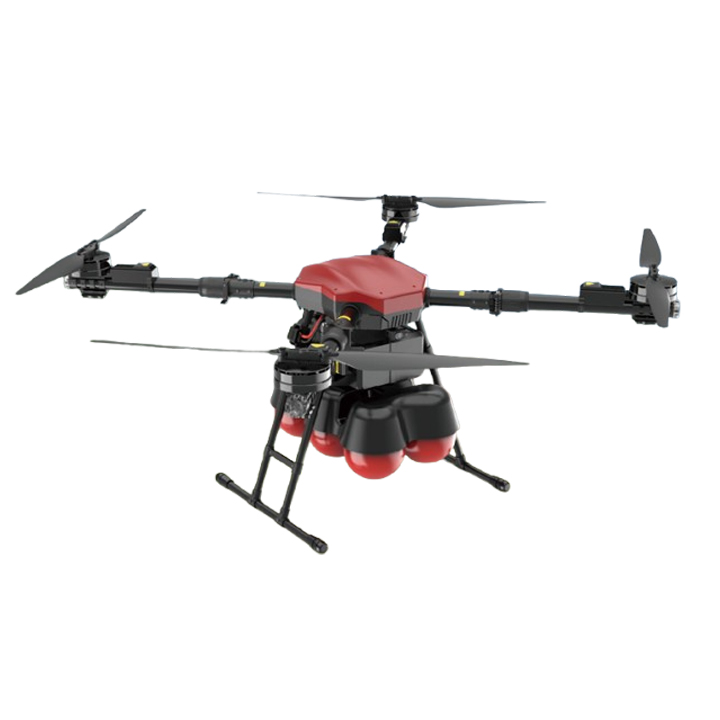

M40 Industry Level Drone

The M40 is a high-end industry-level drone engineered for demanding, large-scale professional operations, excelling in sectors like energy infrastructure inspection, aerial mapping, and long-range surveillance. Built with a rugged, weather-resistant (IP54-rated) frame and six powerful brushless motors, it delivers superior stability in strong winds (up to 15m/s) and supports an impressive maximum payload of 40kg—accommodating heavy-duty equipment such as high-precision LiDAR systems, multi-spectral camera arrays, or large-format payload delivery modules. Equipped with dual hot-swappable intelligent batteries for extended endurance (up to 50 minutes with standard payload), advanced flight autonomy featuring 3D environmental modeling and 360° obstacle avoidance, and ultra-long-range transmission (20km+ via 4G/5G or enterprise-grade radio), it ensures reliable, high-efficiency task execution in remote, harsh, or high-risk environments.

Category: Multi-rotor UAV
Share:
  • Description
Description

Parameter Details

  • Product material: Nylon carbon fiber with aviation aluminum
  • Propellers: 34-inch folding propellers
  • Number of rotors: 4 rotors, 4 propellers
  • Deployed dimensions: 1020*1020*750mm
  • Folded dimensions: 640*640*750mm
  • Wheelbase: 1400mm
  • Empty weight: 14kg
  • Battery weight: 6.3kg x 2
  • Maximum payload: 20kg
  • Maximum takeoff weight: 47kg
  • No-load flight time: 75 minutes
  • 20kg payload flight time: 32 minutes
  • Maximum speed: 15m/s
  • Environmental protection rating: IP65
  • Positioning system: GPS/Beidou/Galileo/GLONASS
  • Positioning accuracy: ±0.5m

M40 Industry Level Drone
