Home » Unmanned System Products » MA02 Tracking Antenna with Continous Pan
C Series MYD-C33 20KM Multiple Bandwidth Allocations & Star Networking
Back to products
C Series MYD-C37 50KM Multiple Bandwidth Allocations & Star Networking

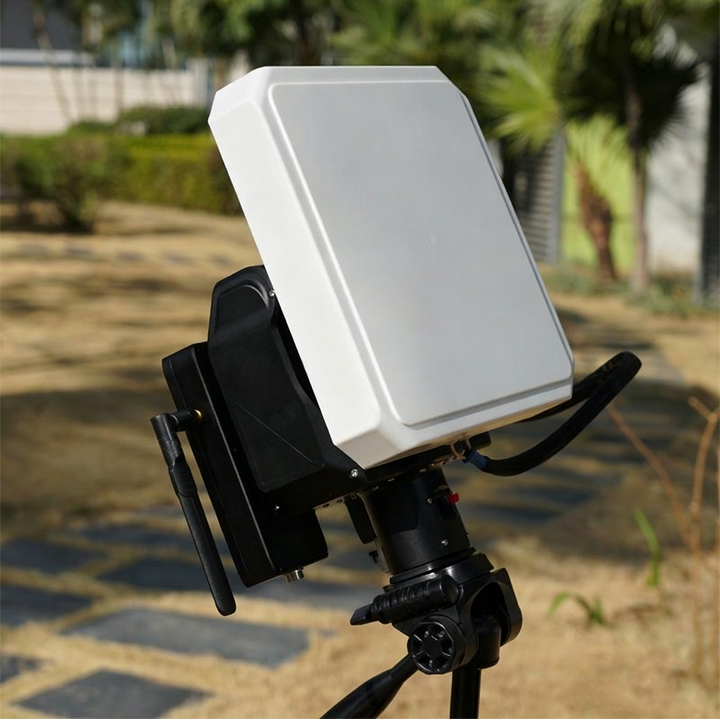

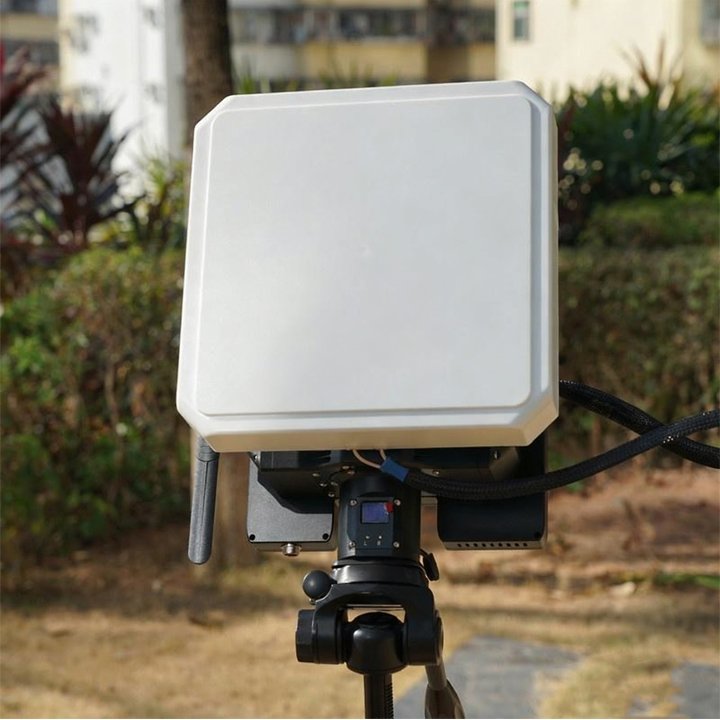

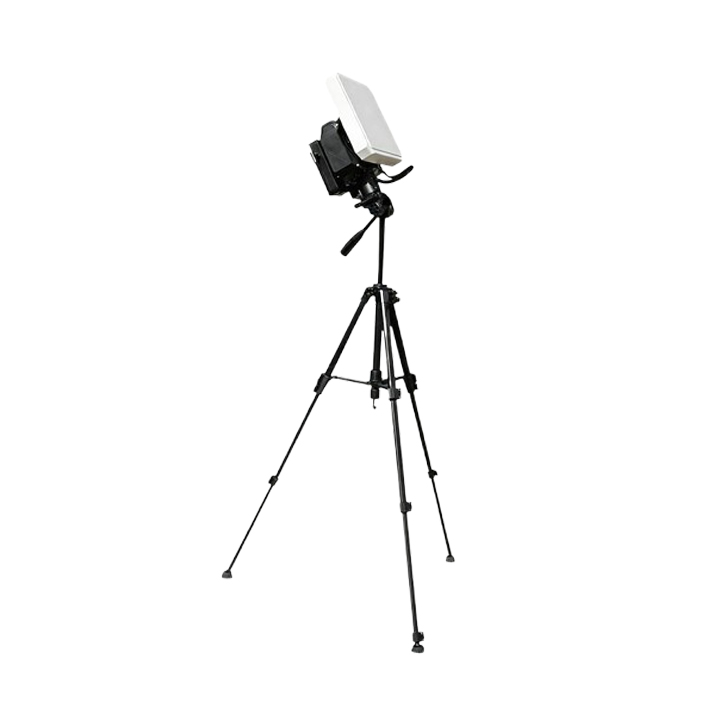

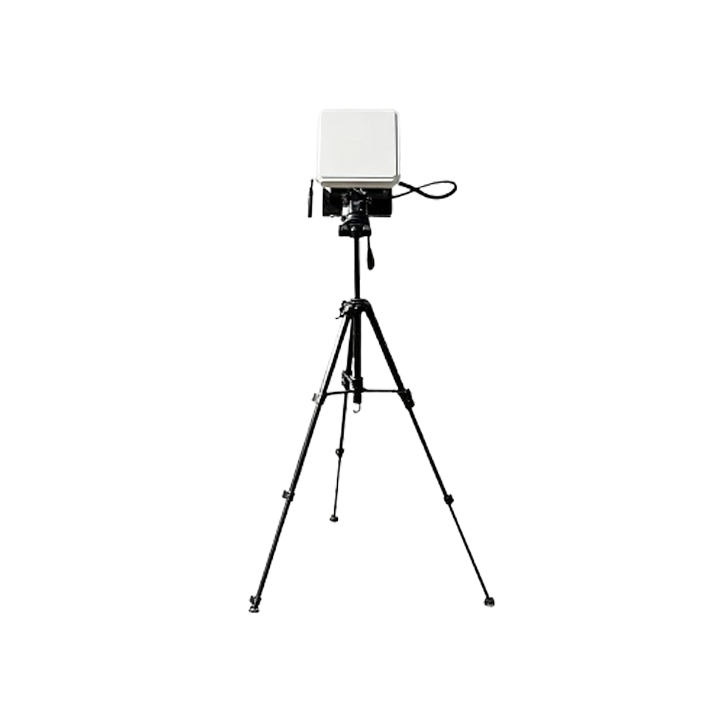

MA02 Tracking Antenna with Continous Pan

The MA02 is a specialized tracking antenna equipped with continuous pan functionality, designed to maintain stable signal connectivity with moving targets—such as UAVs or remote devices—during missions. Its seamless 360° pan capability ensures the antenna can smoothly follow targets without directional limitations, preventing signal dropouts even as the target changes position.
Featuring a robust build and optimized signal reception, it delivers reliable performance for long-distance data and video transmission, making it ideal for scenarios like aerial surveys, remote inspections, or public safety operations. Easy to mount (often paired with its 4.5-inch suction cup for car rooftop installation) and simple to operate, it enhances mobility and extends signal coverage, supporting uninterrupted remote control and monitoring tasks.
Category: Data Radio & Image Link
Share:
  • Description
Description

Specification

Category ltem Detail
Tracking performance Maximum horizontal rotation speed 300 degree per second
Maximum pitch rotation speed 60 degreee per second
Maximum horizontal rotation angle unlimited
Maximum pitch rotation angle  -15~ +135 degree
Horizontal tracking error <0.5°
Pitch tracking error <0.1°
Maximum pitch torque 300N.m
Power range 11~16V Dc
Average power consumption <20w
Antenna specifications Frequency 1425MHz~1450MHz (80OM/2.4G customizable)
Gain 9.0士1 (80OMHz and 2.4GHz will be different)
swR ≤1.8
Polarization mode Vertical
Half lobe width 65°士5°
Size 260*260*40mm
operating humidity 10%~95%
Color White
Material ABS
lnterface Power ×1, XT60
Antenna interface ×1, SMA, WIFl antenna
×2, SMA, video transmission antenna
LCD ×1
Ethernet ×1, RJ45
Button ×2
