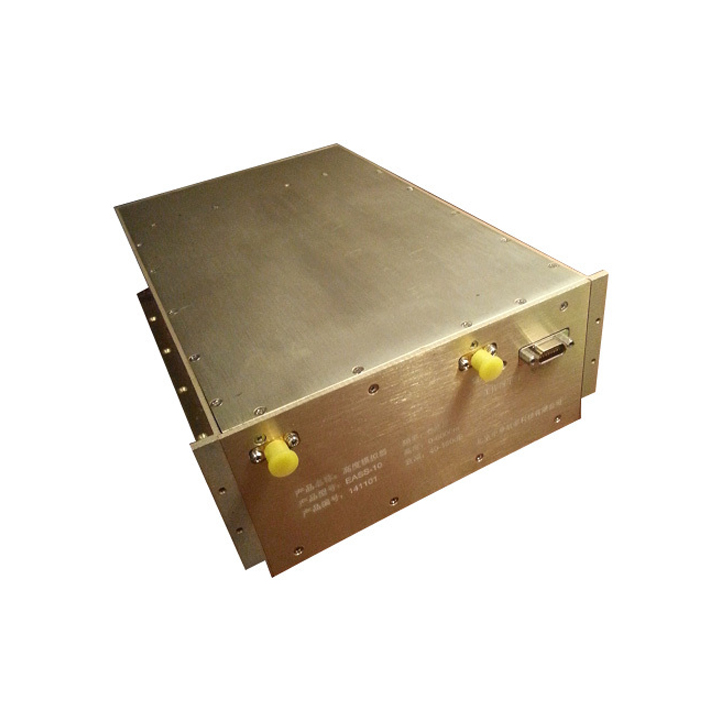

MASS-10 Universal Echo Precision Delay Module (Miniature Universal Continuous Simulation)

The MASS-10 Universal Echo Precision Delay Module, featuring a miniature design and universal continuous simulation capability, is a high-performance component tailored for precise echo signal delay control in radio frequency (RF) testing scenarios. It excels in providing accurate, adjustable delay for echo signals across a wide range of frequencies, making it applicable to various devices like radio altimeters, radars, and other RF-based systems that require reliable echo signal simulation. With its compact size, the module is easy to integrate into limited-space test setups, while the universal continuous simulation function ensures it can replicate diverse real-world signal delay conditions consistently. This module plays a crucial role in verifying the performance of target devices—such as testing their ability to accurately capture and process delayed echo signals—thereby supporting the development, calibration, and quality assurance of RF equipment with high precision and flexibility.

Categories: , , , ,
Description

Product Description

  • Working center frequency: 4.3GHz;
  • Maximum allowable bandwidth: 200MHz (- 3dB bandwidth);
  • It has straight separation function;
  • Maximum allowable input power: 26dBm;
  • Simulation height range: continuous: 1-1000m;
  • Single point: 2000m, 4000m, 6000m;
  • Simulation height resolution: 0.5m;
  • Simulation height accuracy: ± (0.2 + 0.002 × H) m;
  • Height change speed: – 500-500m/S;
  • Height switching time: no more than 1ms (excluding communication and analysis time);
  • Fluctuation in band: ± 1dB;
  • Minimum attenuation of loop: no more than 40dB;
  • Maximum attenuation of loop: not less than 150db;
  • Control mode: RS422 serial port control;
  • Working temperature: 40℃ ～+60℃;
  • Storage temperature: 55℃ ~ 70℃;
  • Volume weight: the standard size of the chassis is 233×160×70mm, not more than 2.5kg;
  • The working power supply is DC23～32V, and the consumption power is not more than 20W.
