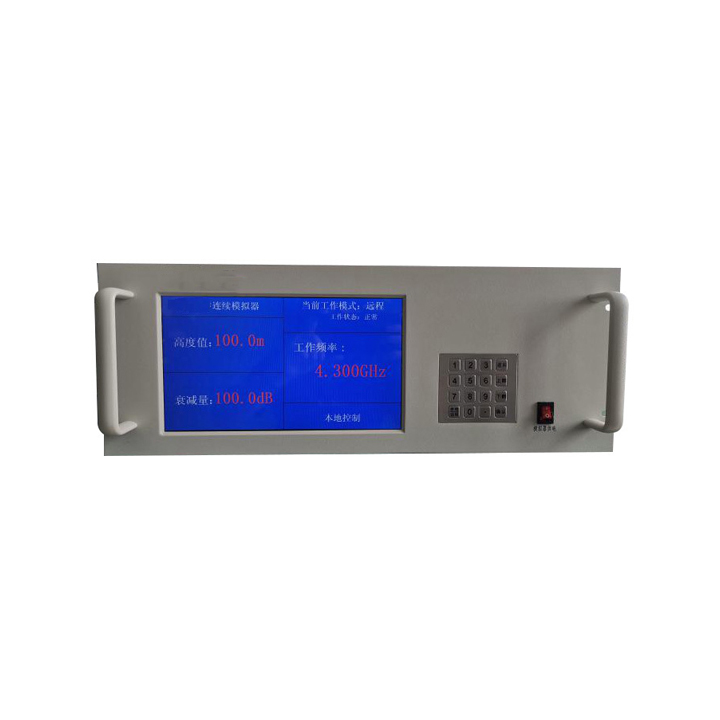

MASS-21 Echo Simulator of Radio Altimeter

​The MASS-21 Radio Altimeter Echo Simulator is capable of simulating both static and dynamic echo signals of altimeters under a variety of altitude conditions and reflection coefficient scenarios. It is compatible with radio altimeters of multiple systems, including frequency modulation (FM) systems, phase modulation (PM) systems, and pulse systems, and is also equipped with a built-in self-check function to ensure its own operational reliability during use.
Categories: , , , ,
Description

Product Description

  • Working center frequency: 4.3GHz, 7.7GHz (15 frequency points), 13.4 (21 frequency points) (customizable);
  • Maximum allowable bandwidth: 300MHz;
  • Maximum allowable input power: 20dBm;
  • Simulation height range: 0.5-15000m;
  • Simulation height resolution: 0.5m;
  • Simulation height accuracy: ± (0.2 0.001×h) m;
  • Height change speed: – 500~500m/S;
  • Height switching time: no more than 1ms;
  • Maximum attenuation of circuit: not less than 160db (high altitude);
  • Minimum attenuation of loop: no more than 40dB (low altitude);
  • Dynamic range of loop attenuation: not less than 120dB;
  • Pass through rejection of transceiver port: not less than 80dB;
  • Control mode: RS422 serial port control;
  • Working power supply: AC/50Hz/220V, power consumption no more than 60W;
  • Working temperature: -25～40℃;
  • Storage temperature: -25～60℃;
  • Volume: standard 19 inch 4U rack case;
  • Weight: no more than 20kg;
  • With packing box, easy to carry.
