MB201C Heavy Fuel Engine(12kW) FEATURES
- Boxer,2-cylinder,2-stroke
- Heavy fuel:RP-3/RP-5
- Integrated starter and generator/External electric starter
- Direct injection、 dual spark plug ignition
- Maximum operating altitude 6500m
- TBO>250h
MB201C Heavy Fuel Engine(12kW) Specifications
| Fuel | Jet fuel (RP-3/RP-5) |
| Configuration | Boxer,2-cylinder, 2-stroke,air-cooled |
| maximum horsepower/speed | 16hp/6000rpm |
| Minimum specific fuel consumption | 350g/kW.h |
| Weight | 5.5kg |
| Length xwidth xheight | 209mm×339mm×244mm |
| TBO | 250h |
| Applications | Applied to small long-endurance UAVs and range extenders |

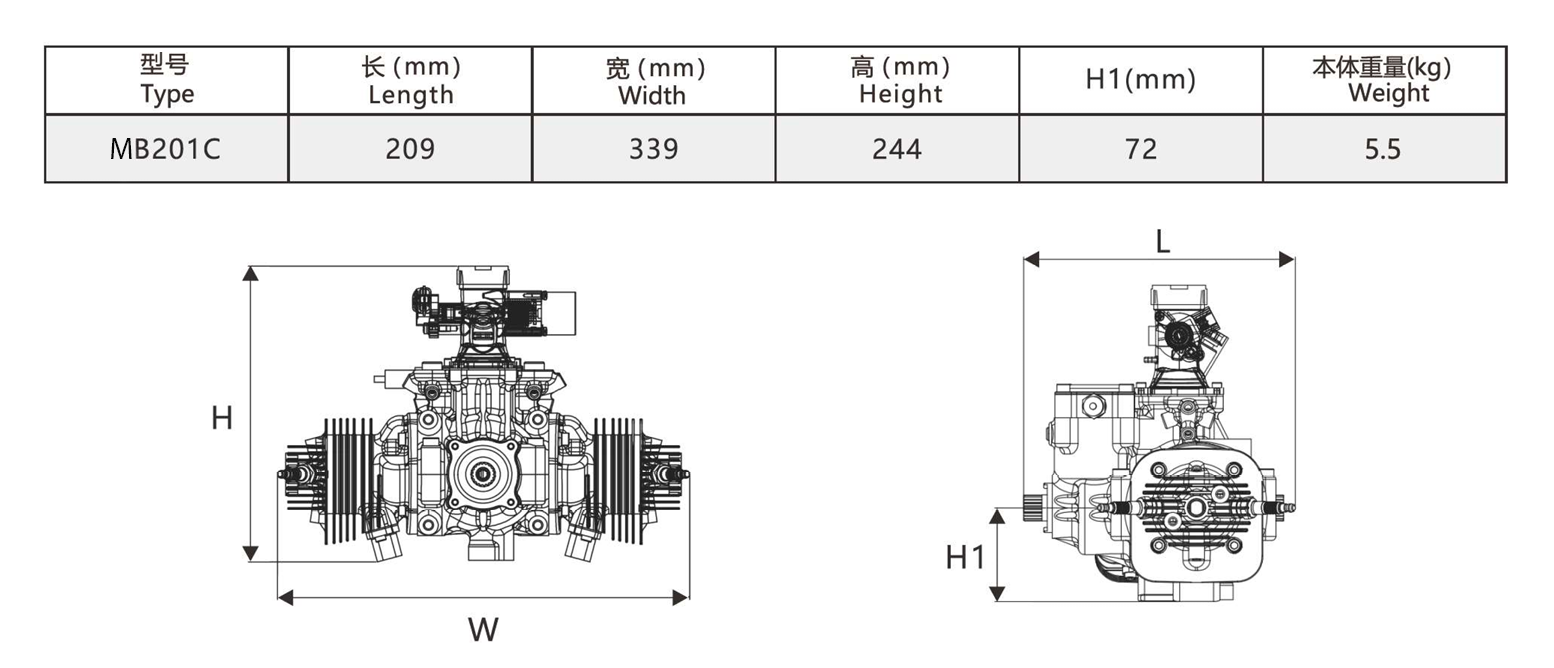

MB201C Heavy Fuel Engine(12kW)Outline Drawing
MB201C Heavy Fuel Engine(12kW) Characteristic Curve
