Home » Unmanned System Products » MB409 Gasoline Engine (46KW)
MB203B Heavy Fuel Engine (16KW)
Back to products
MB410 Heavy Fuel Engine(75/85kW)

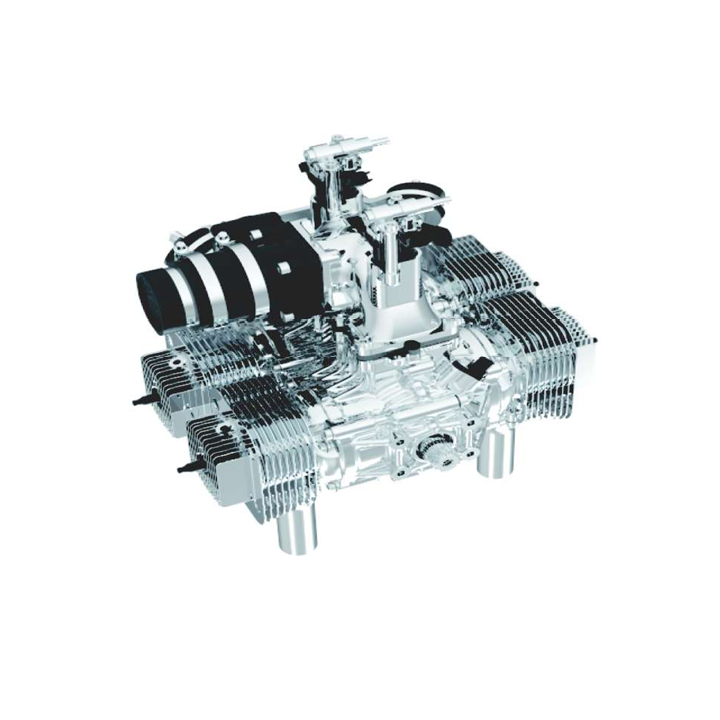

MB409 Gasoline Engine (46KW)

The Moneypro MB409 is a high-power 46kW gasoline engine designed for demanding applications like drone swarms and VTOL/fixed-wing UAVs. Running on 95# gasoline, its 4-cylinder boxer configuration and integrated starter-generator ensure reliable performance up to 5,000 meters. Weighing only 16.3kg with a 200-hour TBO, it offers an optimal power-to-weight ratio for heavy-lift and long-endurance missions.

Categories: Drone Engine, UAV Accessories
Share:
  • Description
Description

MB409 Gasoline Engine (46KW) Features

  • Boxer,4-cylinder,2-stroke
  • 95# gasoline
  • Integrated starter and generator
  • Port fuel injection system
  • Maximum operating altitude 5000m
  • TBO>200h



MB409 Gasoline Engine (46KW) Specifications

Fuel 95# gasoline
Configuration Boxer,4-cylinder,2-stroke,air-cooled
maximum horsepower/speed 63hp/5800rpm
Minimum specific fuel consumption 350g/kW·h
Weight 16.3kg
Length xwidth xheight 382mmx419mmx422mm
TBO 200h
Applications Applied to drone swarm,Small long-endurance fixed-wingUAVs, Samll long-endurance VTOL UAVs

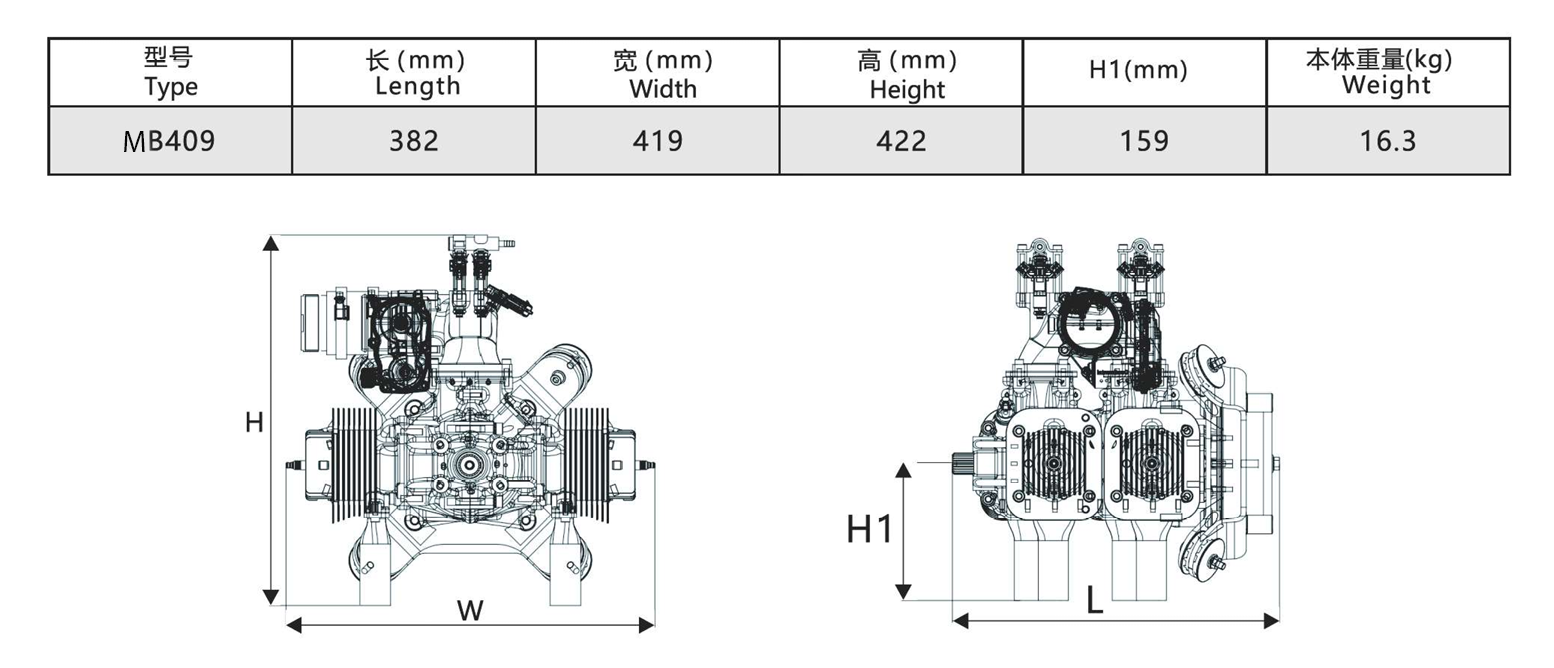

MB409 Gasoline Engine (46KW) Outline Drawing

MB409 Gasoline Engine (46KW)

MB409 Gasoline Engine (46KW) Characteristic Curve

MB409 Gasoline Engine (46KW)
