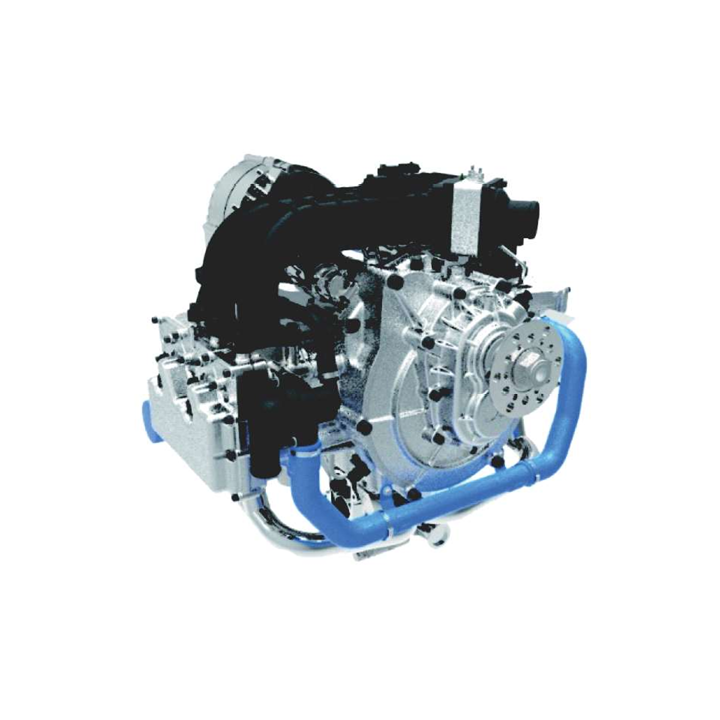

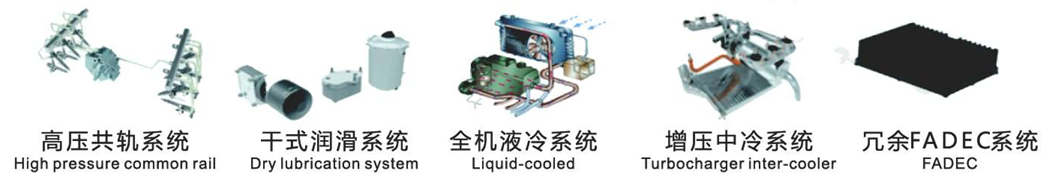

MB416 Heavy Fuel Engine(117/127kW) Features
- Boxer, 4-cylinder, 4-stroke
- Heavy fuel: diesel, RP-3/RP-5
- Light-weight design,high power-to-weight ratio
- No power attenuation at 5000m/6000m
- Maximum operating altitude 10000m/12000m/14000m
- Low fuel consumption, long-endurance
- Low fuel consumption, long-endurance
- TBO>2000h
MB416 Heavy Fuel Engine(117/127kW) Specifications
| Products models | MB416(117kW) | MB416B(127kW) | MB416F(127kW) |
| Fuel | Diesel,Jet fuel (RP-3/RP-5) | ||
| Configuration | Boxer, 4-cylinder, 4-stroke, liquid-cooled, high pressure common rail, TCI | two-stage turbocharging | |
| Air inlet mode | TCI | TCI | |
| maximum horsepower/speed | 159hp/4000rpm | 172hp/4000rpm | |
| Minimum specific fuel consumption | 220g/kW.h 265g/kW·h |
||
| Weight | 104kg (without gearbox) 116kg (with gearbox) |
139kg (Twin-turbocharged with reduction gearbox) | |
| Length x width x height | 590×706x647mm(without gearbox) 712×706x647mm(with gearbox) |
712x706x707mm (Twin-turbocharged with reduction gearbox) | |
| TBO | 2000h | ||
| Applications | Applied to heavy load long-endurance UAVs,light helicopters, ground-effect vehicles,fixed-wing general aviation aircraft, LSA and range extenders |
||

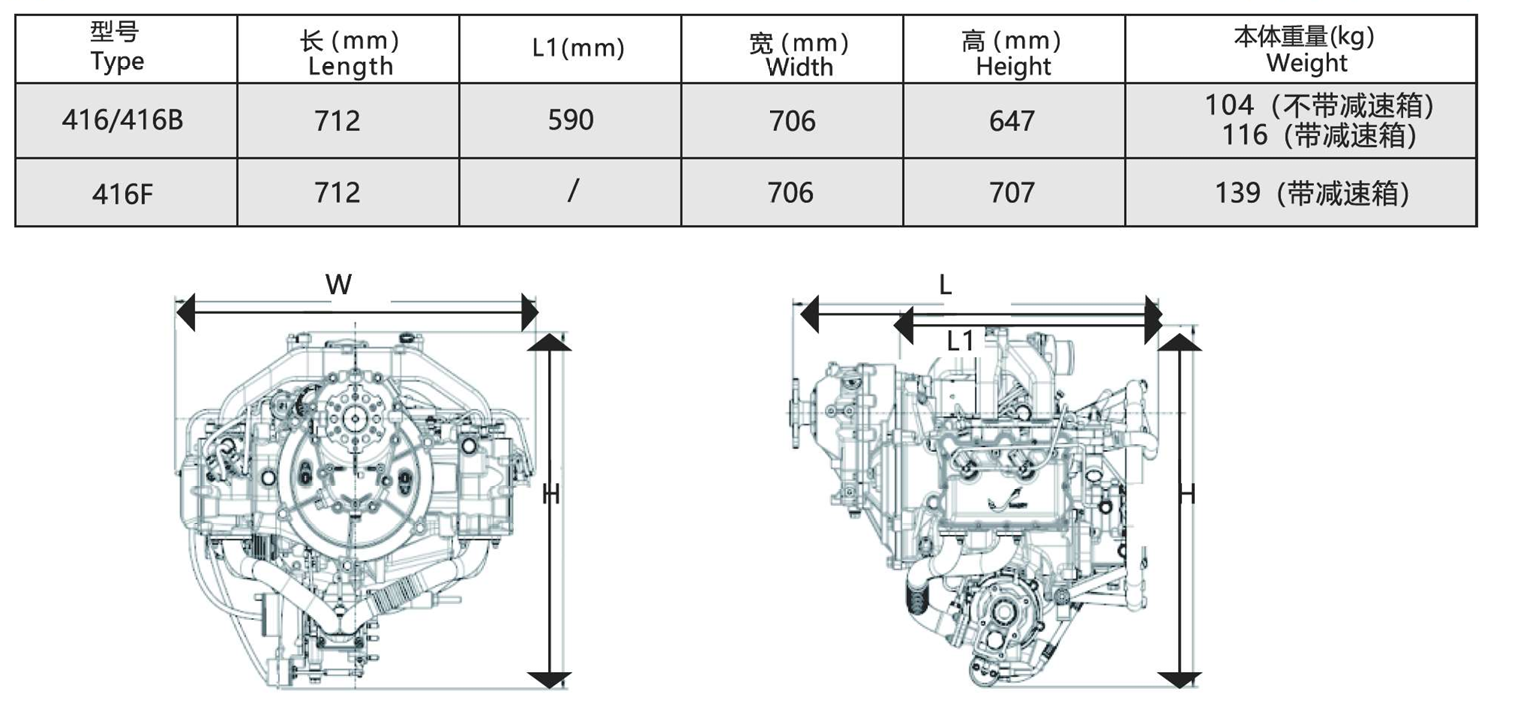

MB416 Heavy Fuel Engine(117/127kW) Outline Drawing
MB416 Heavy Fuel Engine(117/127kW) Characteristic Curve
