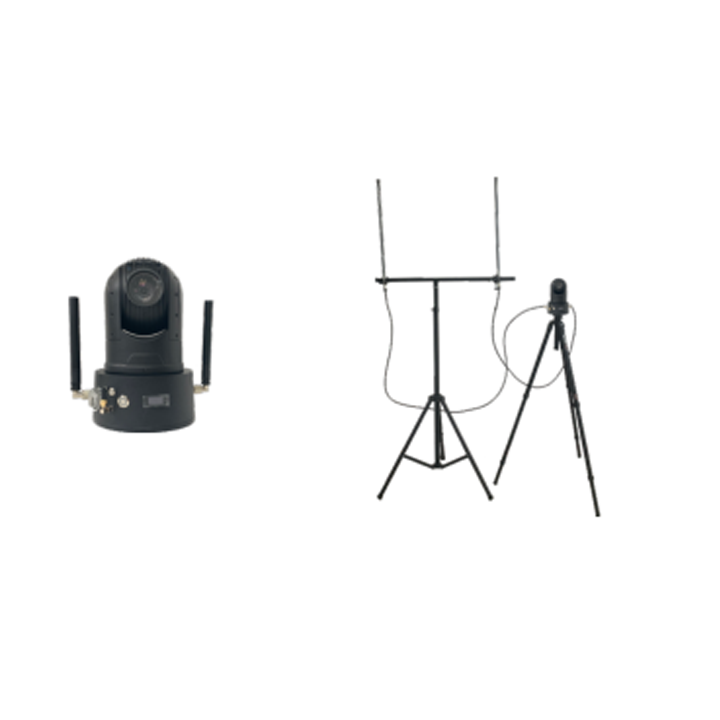

MESH Mobile Control Ball Features
● It is equipped with a high-performance wireless broadband self-organizing network module, with options of 4G public network/WIFI AP/RJ45.
● Supports connection to the national standard GB-28181 video management platform. The command center can dispatch device images, two-way communication, video parameter settings, and operations such as controlling the pan-tilt.
● High-definition waterproof camera with a high-performance progressive scan CMOS sensor and a high-performance multimedia processor, embedded Linux system.
● H.265 video encoding, supporting dual-stream, resolution 1920×1080/1280*720 25fps/30fps.
Horizontal rotation 360°, vertical rotation -15°~90°. Optical zoom 30X, 20X selectable, digital zoom 20 times. Pre-set points 256, 3D noise reduction, anti-shake, automatic focus, automatic white balance, backlight compensation.
● Laser ranging, 1-kilometer night-time laser supplementary lighting, dazzling bird repellent function/ navigation indication function selectable.
● Can view up to 2-10 kilometers. Daytime can combine optical fog removal and electronic fog removal.
● Day/Night conversion mode ICR infrared filter type, infrared distance 60-80m.
● Supports fog removal, backlight compensation, minimum illumination color: 0.05Lux@(F1.6, AGCON), black and white: 0.01Lux@(F1.6, AGCON).
128G SD card. Beidou/GPS positioning system, supports 802.1b/g/n.
● One-click startup, no need for configuration or parameter changes, convenient for operation and maintenance.
● Battery 10.4Ah/12V, 8-hour battery life, average power consumption less than 30 watts; can be connected to mains power.
● Operating temperature -40~+80°, three-proof level IP66, size 260x167mm, weight 4.5kg.
● Spare parts include tripod, charger, composite aviation cable, main antenna, WIFI antenna, packaging box.
