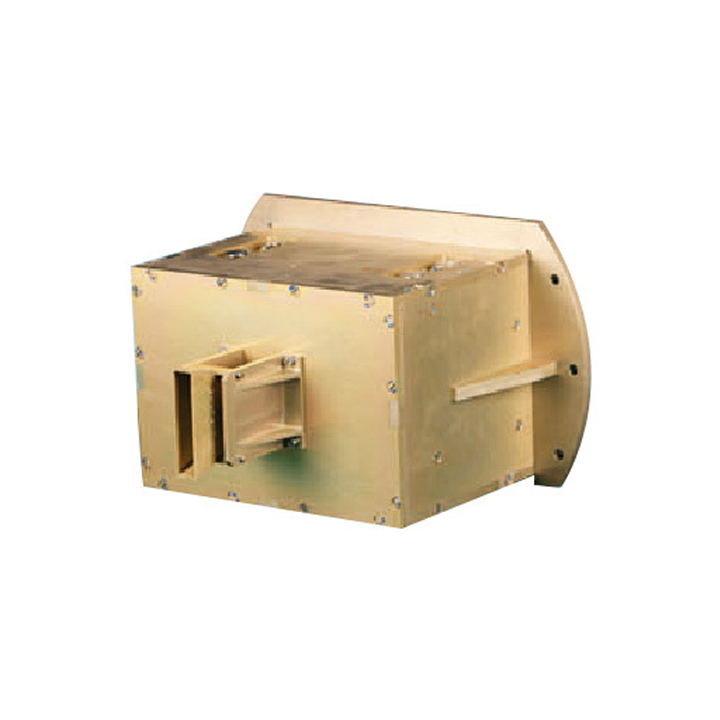

MFS-01A Radar Signal Emitter Simulator

The Seeker Simulation Radiation Source is designed to replicate the microwave radiation signal characteristics of aircraft-borne radar seekers, and provides simulated radar signals as intercepted and tracked targets for various warning devices. The Seeker Simulation Radiation Source developed by our company features controllable power, flexible system configuration, a wide frequency band, small size, light weight, ease of use, and no preheating requirement. It can be integrated with various test equipment and serve as a payload for UAV (Unmanned Aerial Vehicle) targets. Its signal modulation modes can cover the typical operating modes of terminal guidance radars, and the Seeker Simulation Radiation Source can be categorized into non-coherent simulation radiation sources and coherent simulation radiation sources.

Categories: , , , ,
Description

Non Coherent Microwave Radiation Source

  • Signal system: non coherent system;
  • Typical frequency band: Ku band;
  • Polarization mode: vertical polarization;
  • Signal bandwidth: ≥220MHz;
  • Power gain product: ≥48dBw;
  • Pulse width: 0.7μs;
  • Repetition rate: 500~1500hz, can be bound;
  • 3dB beam width of antenna: azimuth ≥±6°, pitch ≥±6°;
  • Weight: no more than 10kg.

MFS-01A Radar Signal Emitter Simulator

MFS-01A Radar Signal Emitter Simulator



Coherent Microwave Radiation Source

  • Signal system: coherent system;
  • Typical frequency band: X-band;
  • Polarization mode: vertical polarization;
  • Signal bandwidth: ≥600MHz;
  • Power gain product: ≥36dbw;
  • Pulse width: 5~40μs, bindable;
  • Repetition rate: 500~2500Hz, can be bound;
  • 3dB beam width of antenna: azimuth ≥±25°, pitch ≥±25°;
  • Weight: no more than 5kg.
